Backyard Discovery ATLANTIS - Swing Beam Assembly: Step 1; Hand-Tighten Bolts

SWING BEAM EXTENDED - W4L16773
2"x5 1/4"x89 1/2" (50x134x2274)
SB74
(x1)
L BRACKET
66x66x127
(x2)
A100140
SWING BEAM
EXTENSION
BRACKET-LEFT
(x1)
A100325
SWING BEAM
EXTENSION
BRACKET-RIGHT
(x1)
A100326
SB74 (x1)
SWING BEAM EXTENDED
326 (x1)
SWING BEAM EXTENSION BRACKET-RIGHT
325 (x1)
SWING BEAM EXTENSION BRACKET-LEFT
005 (x3)
NUT BARREL - 7/8"
011 (x3)
BOLT - 1 3/4"
047 (x2)
BOLT - 2 3/4"
105 (x2)
WASHER - 8x27
105 (x2)
WASHER - 8x27
110 (x2)
NUT - 5/16"
140 (x2)
L BRACKET 66x66x127
LEAVE 011 BOLTS HAND
TIGHT AT THIS TIME
QTY
PART
NUMBER
DESCRIPTION
3 H100005
NUT BARREL WH
5/16x7/8
3 H100011 BOLT WH 5/16x1 3/4
2 H100047 BOLT HEX 5/16x2-3/4
4 H100105 WASHER FLAT 8x27
2 H100110 NUT LOCK 5/16

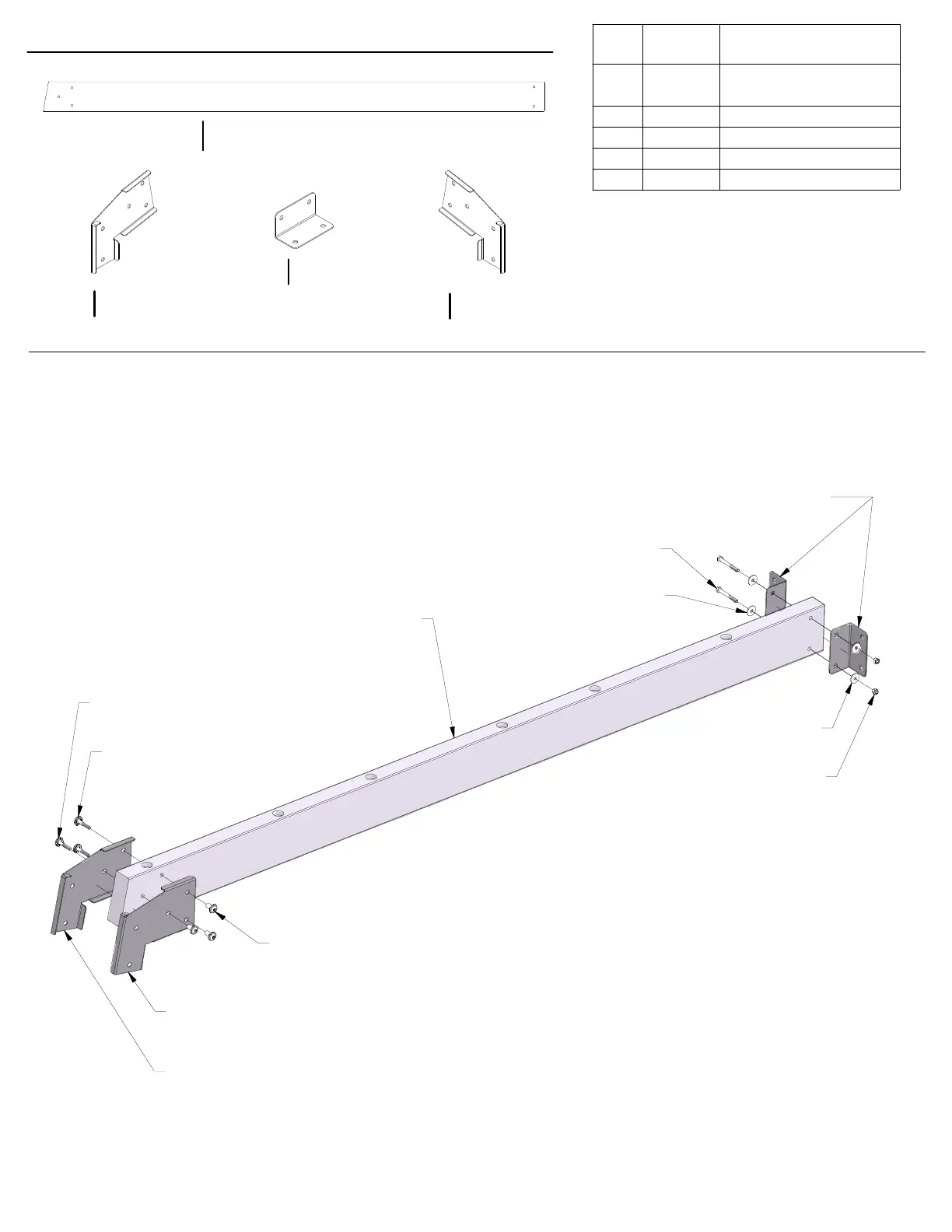

STEP 1 - SWING BEAM ASSEMBLY
27
