Backyard Discovery ATLANTIS - Final Assembly: Step 2; Slide Opening Placement

STEP 2 - FINAL ASSEMBLY
115 (x3)
BOLT - 1/2"
074 (x3)
T-NUT - 5/16"
4 1/4 in
[108 mm
]
2 5/8 in
[67 mm]
5 in
[127 mm]
5 in
[127 mm]
1 in
[25 mm]
2 5/8 in
[67 mm]

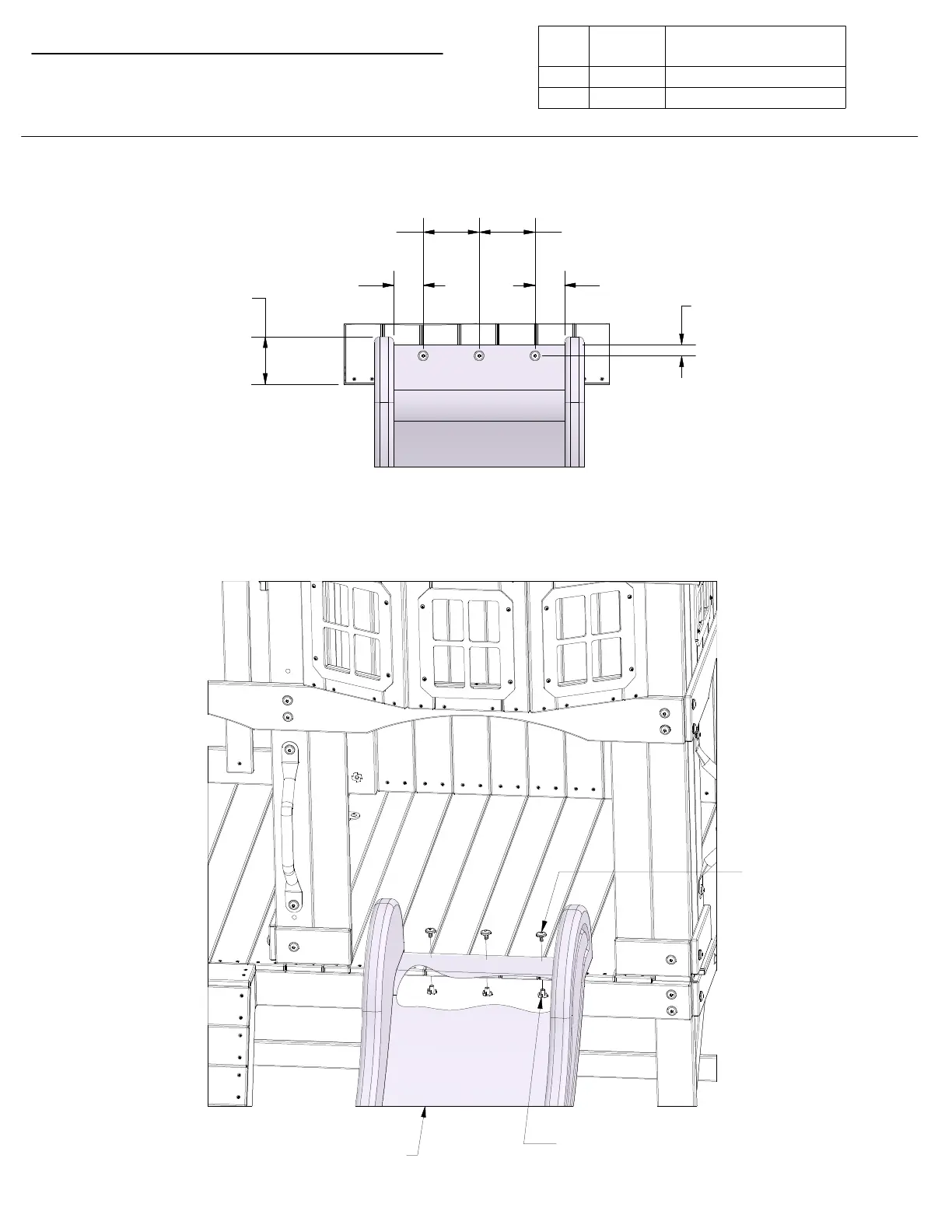

SLIDE ASSEMBLY
NOTE:
CENTER
SLIDE IN OPENING. USING DIMENSIONS BELOW AS A
TEMPLATE, DRILL (3) 3/8" [10mm] HOLES THROUGH DECK FOR HARDWARE
QTY
PART
NUMBER
DESCRIPTION
3 H100074
T-NUT 5/16
3 H100115 BOLT WH 5/16x1/2
57
