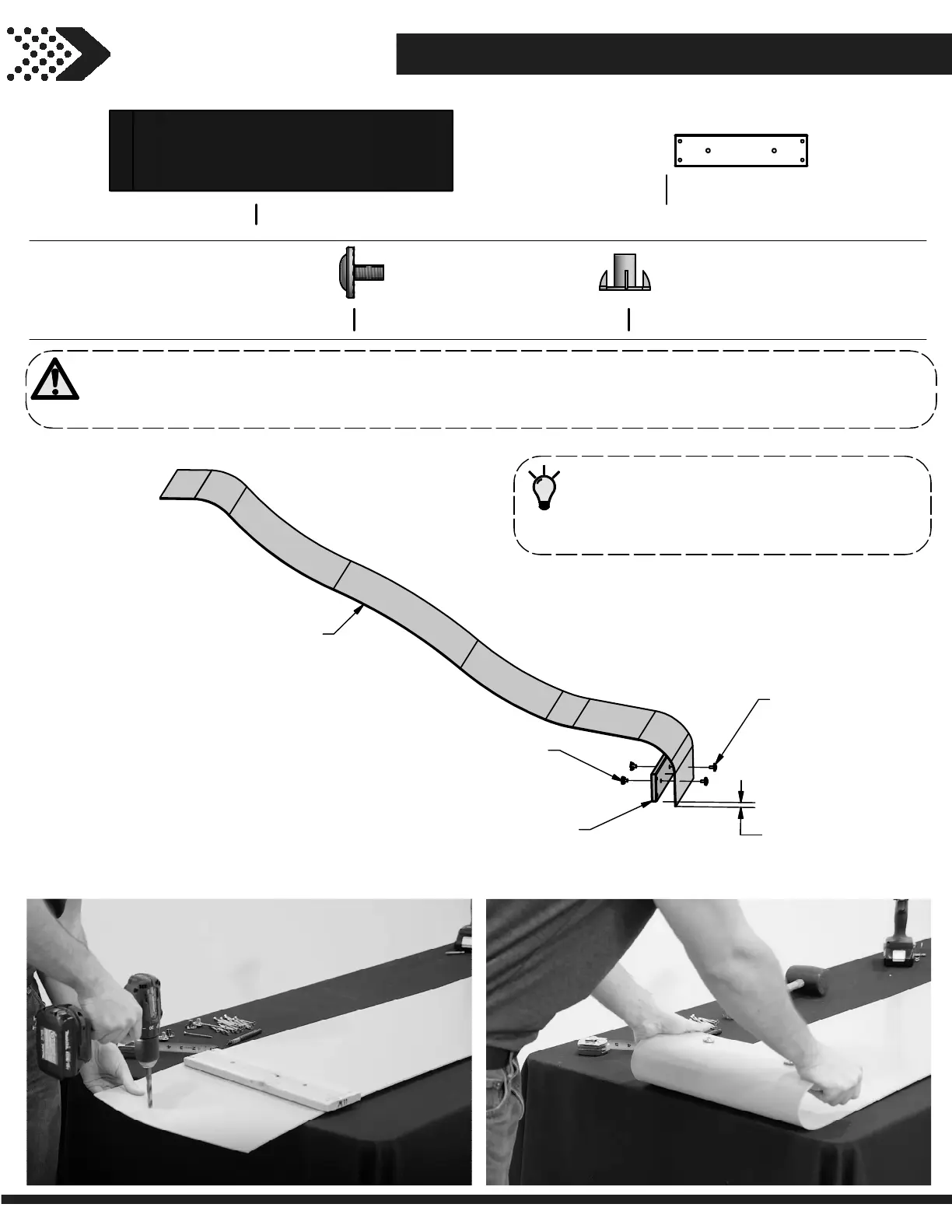

Backyard Discovery Bay Pointe - Slide Assembly; Step 1: Slide Brace Attachment

BOLT WH
5/16x1/2
(2)
H100115
T-NUT
5/16
(2)
H100074
STEP 1
115 (x2)
BOLT - 1/2"
074 (x2)
T-NUT - 5/16"
SLIDE ASSEMBLY
M77 (x1)
SLIDE BRACE
6 FT SLIDE BED
(1)
A6P00404
1/2
SLIDE BRACE - W4L13297
5/8"x3 3/8"x14 1/4" (16x86x362)
M77
(1)
404 (x1)
6 FT SLIDE BED
NOTE:
TAKE NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND. PLACE SLIDE BRACE
CENTERED ON THE BOTTOM (DULL SIDE) AND 1/2" FROM THE EDGE. USE M77 BOARD AS A TEMPLATE FOR
DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. USE A 5/16" DRILL BIT.
TIP:
PRE-BENDING THE ENDS WILL EASE ASSEMBLY.
PLACING THE SLIDE BED OUT IN THE SUN
MAKES IT EASIER TO BEND.
14
