Backyard Discovery Bay Pointe - Step 3: Mid-Level Support Installation

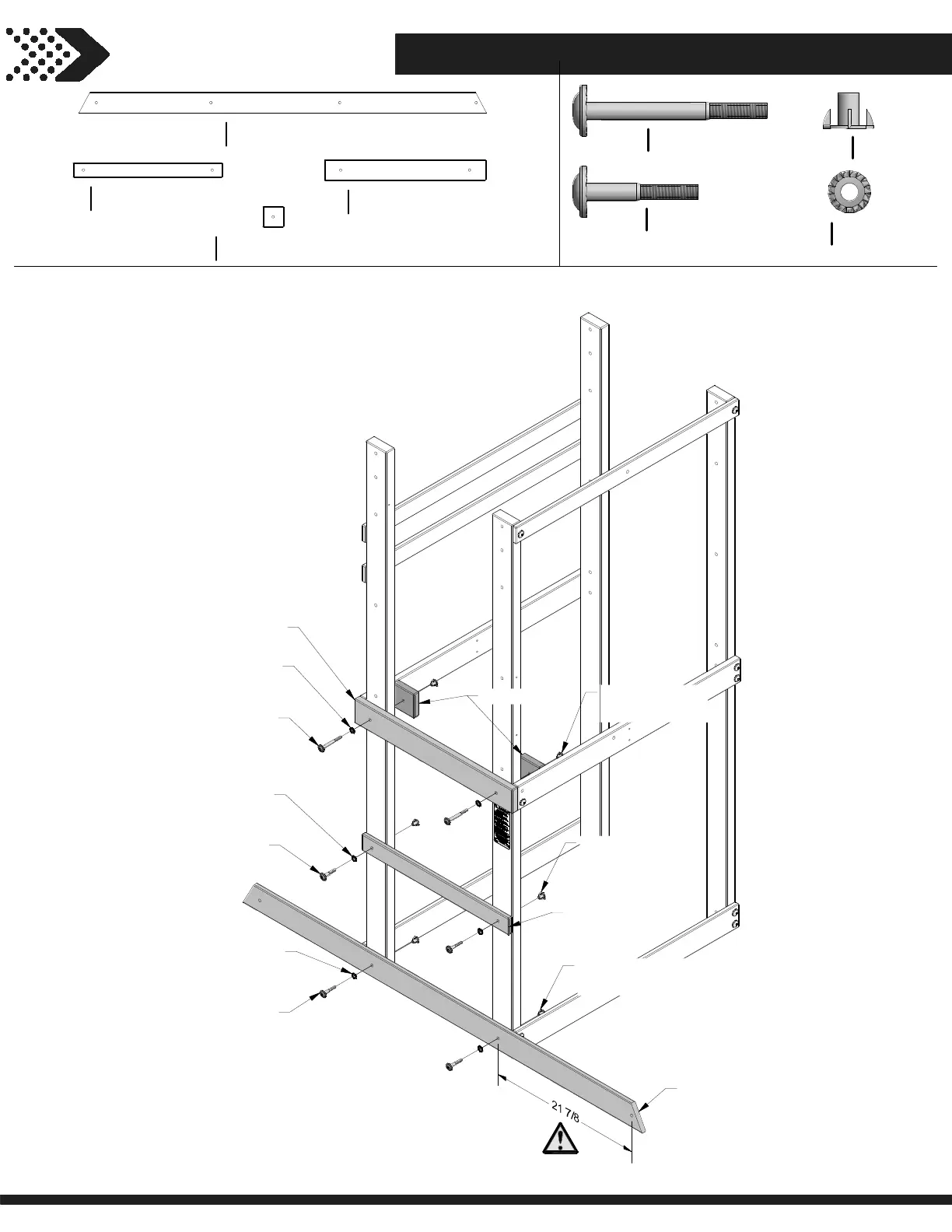

FORT ASSEMBLY
STEP 3
030 (x2)
WASHER - 8x19
017 (x2)
BOLT - 3-1/4"
030 (x2)
WASHER - 8x19
012 (x2)
BOLT - 2"
030 (x2)
WASHER - 8x19
012 (x2)
BOLT - 2"
074 (x2)
T-NUT - 5/16"
074 (x2)
T-NUT - 5/16"
074 (x2)
T-NUT - 5/16"
M3 (x1)
N1 (x1)
H2 (x1)
H4 (x2)
WASHER LOCK
EXT
8x19
(6)
H100030
ANGLE GROUND RAIL - W4L13217
5/8"x3 3/8"x65 5/8" (16x86x1666)
M3
(1)
SIDE RAIL - W4L13214
5/8"x2 3/8"x24 1/8" (16x60x612)
N1
(1)
FLOOR RAIL - W4L13213
1"x3 3/8"x26" (24x86x660)
H2
(1)
FLOOR SUPPORT - W4L13222
1"x3 3/8"x3 3/8" (24x86x86)
H4
(2)
BOLT WH
5/16x3 1/4
(2)
H100017
BOLT WH
5/16x2
(4)
H100012
T-NUT
5/16
(6)
H100074
22
