Backyard Discovery Bay Pointe - Step 6: Floor Board Installation

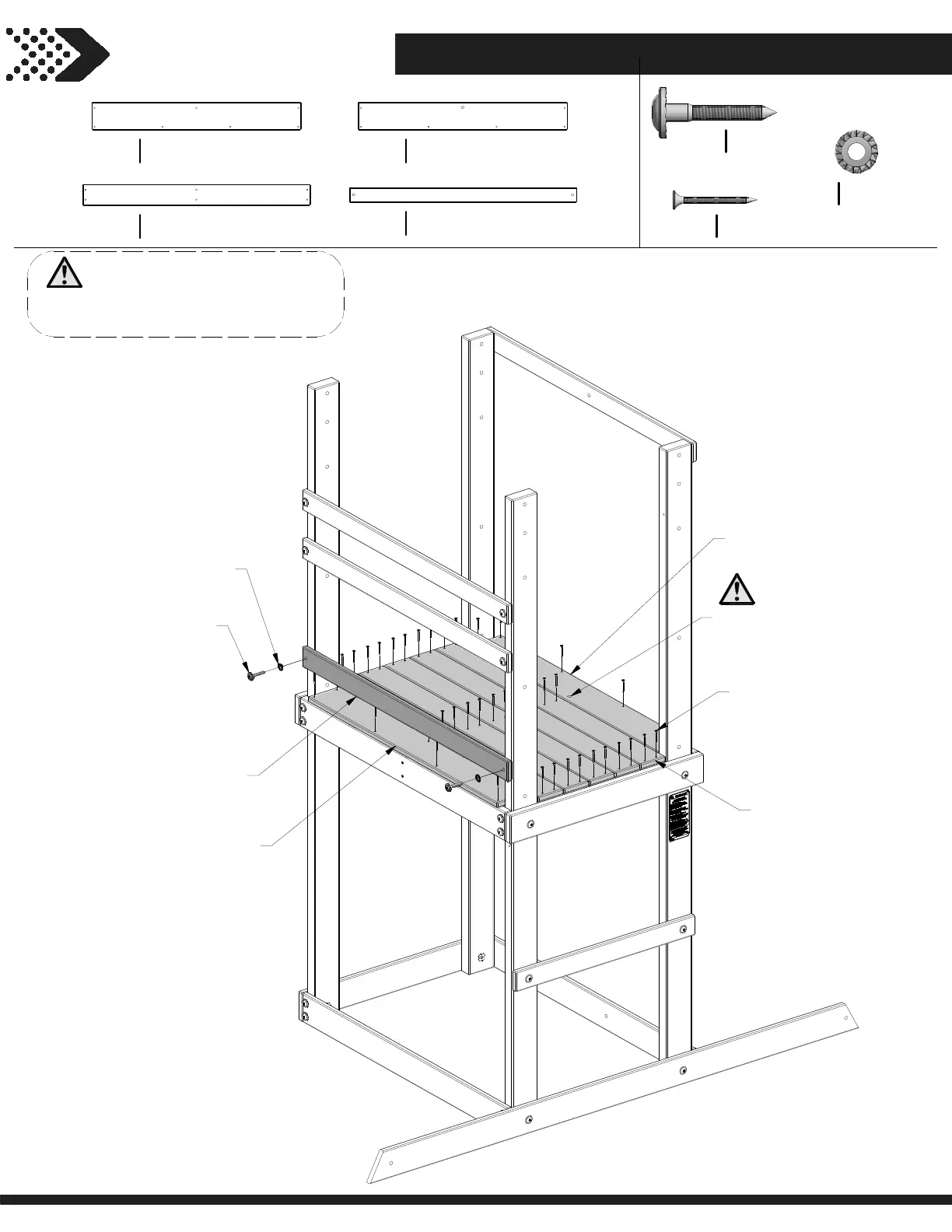

FORT ASSEMBLY
STEP 6
NOTE:
INST
ALL FLOOR BEFORE N2 BOARD.
FLOOR BOARD - W4L13225
5/8"x4 3/8"x33 3/4" (16x112x856)
L2
(1)
FLOOR BOARD - W4L13224
5/8"x3 3/8"x36 5/8" (16x86x930)
M4
(5)
FLOOR BOARD - W4L13223
5/8"x4 3/8"x33 3/4" (16x112x856)
L1
(1)
SCREW PFH
8x1 1/2
(43)
H100086
086 (x43)
SCREW - 1 1/2"
L1 (x1)
M4 (x5)
L2 (x1)
SIDE RAIL - W4L13218
5/8"x2 3/8"x36 5/8" (16x60x930)
N2
(1)
WASHER LOCK
EXT
8x19
(2)
H100030
LAG SCREW WH
5/16x2
(2)
H100027
N2 (x1)
030 (x2)
WASHER - 8x19
027 (x2)
LAG SCREW - 2"
NOTE HOLE LOCATION
25
