FORT ASSEMBLY

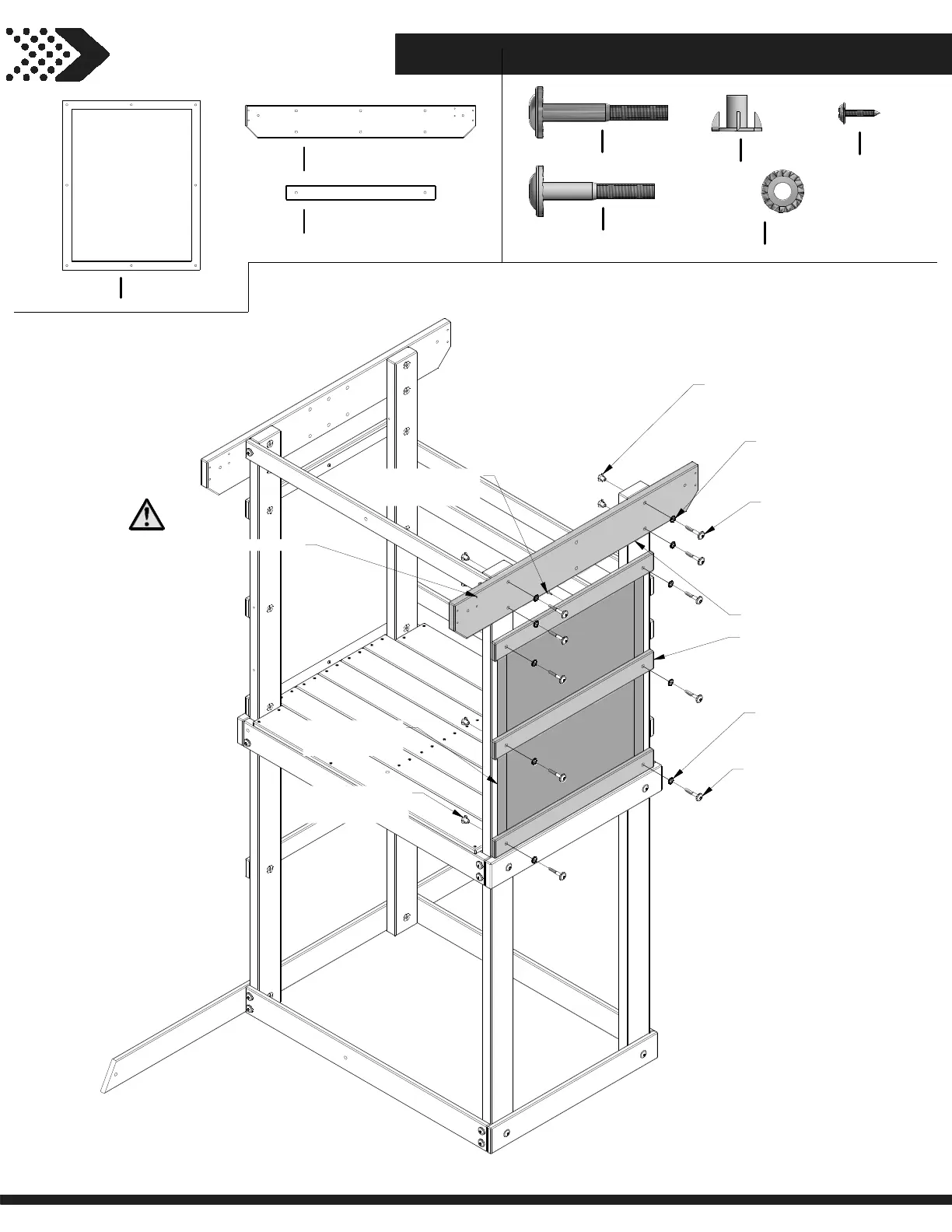

STEP 8
MESH PANEL
(1)
A6P00401
SIDE RAIL - W4L13214
5/8"x2 3/8"x24 1/8" (16x60x612)
N1
(3)
BOLT WH
5/16x2 1/4
(4)
H100013
BOLT WH
5/16x2
(6)
H100012
WASHER LOCK
EXT
8x19
(10)
H100030
T-NUT
5/16
(10)
H100074
TOP RAIL - W4L13219
1"x5 1/4"x37" (24x134x940)
G1
(1)
074 (x4)
T-NUT - 5/16"
030 (x4)
WASHER - 8x19
013 (x4)
BOLT - 2 1/4
030 (x6)
WASHER - 8x19
012 (x6)
BOLT - 2"
074 (x6)
T-NUT - 5/16"
128 (x2)
SCREW - 5/8
N1 (x3)
G1 (x1)
401 (x1)
MESH PANEL
SCREW PWH
8x5/8
(2)
H100128
NOTE HOLE LOCATION
27
