Backyard Discovery Bay Pointe - Parts Identification; Wood Components

Owner's Manual

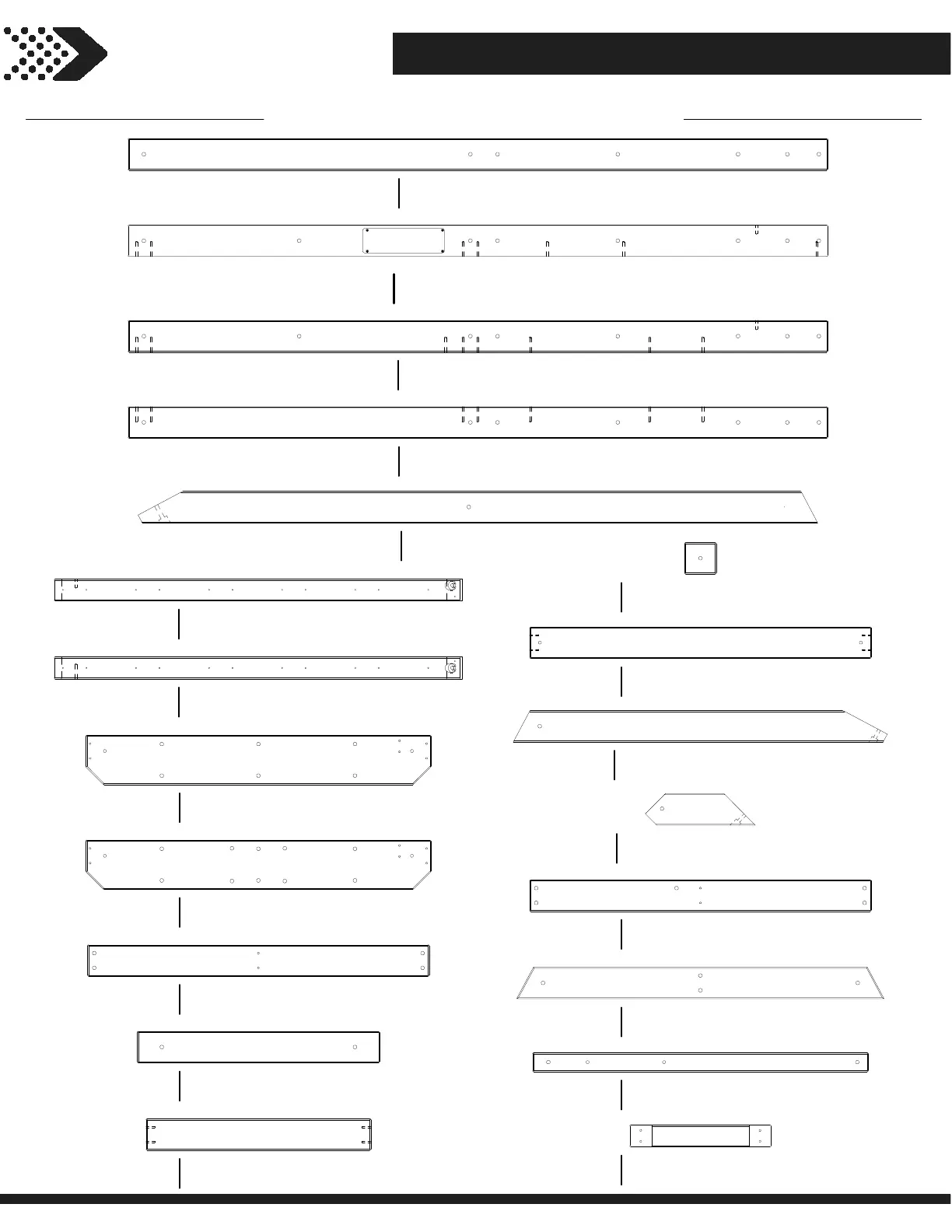

Wood Components (Not to Scale)
Parts Identification
RIGHT FRONT UPRIGHT - W4L15660
1 3/8"x3 3/8"x75" (36x86x1905)
E1
(1)
ANGLE BRACE - W4L13293
1 3/8"x3 3/8"x72 7/8" (36x86x1850)
E77
(2)
POST ASSEMBLY - W2A02839
1 7/16"x3 3/8"x75" (36x86x1905)
E2
(1)
ANGLE BRACE - W4L13290
15/16"x3 3/8"x11 13/16" (24x86x300)
H7
(2)
LEFT BACK UPRIGHT - W4L13210
1 3/8"x3 3/8"x75" (36x86x1905)
E3
(1)
RIGHT BACK UPRIGHT - W4L13211
1 3/8"x3 3/8"x75" (36x86x1905)
E4
(1)
UPRIGHT - W4L13283
1 7/16"x2 3/8"x43 3/4" (36x60x1111)
F1
(1)
UPRIGHT - W4L13284
1 7/16"x2 3/8"x43 3/4" (36x60x1111)
F2
(1)
TOP RAIL - W4L13219
1"x5 1/4"x37" (24x134x940)
G1
(1)
TOP RAIL - W4L13228
1"x5 1/4"x37" (24x134x940)
G2
(1)
ANGLE BRACE - W4L13288
15/16"x3 3/8"x40 1/16" (24x86x1018)
H6
(1)
FLOOR RAIL - W4L13295
1"x3 3/8"x36 5/8" (24x86x930)
H8
(1)
FLOOR RAIL - W4L13212
1"x3 3/8"x36 5/8" (24x86x930)
H1
(1)
FLOOR RAIL - W4L13221
1"x3 3/8"x24 1/8" (24x86x612)
H3
(1)
END SUPPORT - W4L13294
1"x3 1/2"x39 1/2" (24x86x1000)
H79
(1)
UPRIGHT - W4L13226
1"x2"x36" (24x52x914)
J1
(1)
FLOOR SUPPORT - W4L13222
1"x3 3/8"x3 3/8" (24x86x86)
H4
(4)
TOP RAIL - W4L13227
1"x3 3/8"x36 5/8" (24x86x930)
H5
(2)
PICKET - W4L13282
1"x2 3/8"x15 1/8" (24x60x385)
J2
(2)
FLOOR RAIL - W4L13213
1"x3 3/8"x26" (24x86x660)
H2
(2)
3
