Backyard Discovery Bay Pointe - Page 4

Owner's Manual

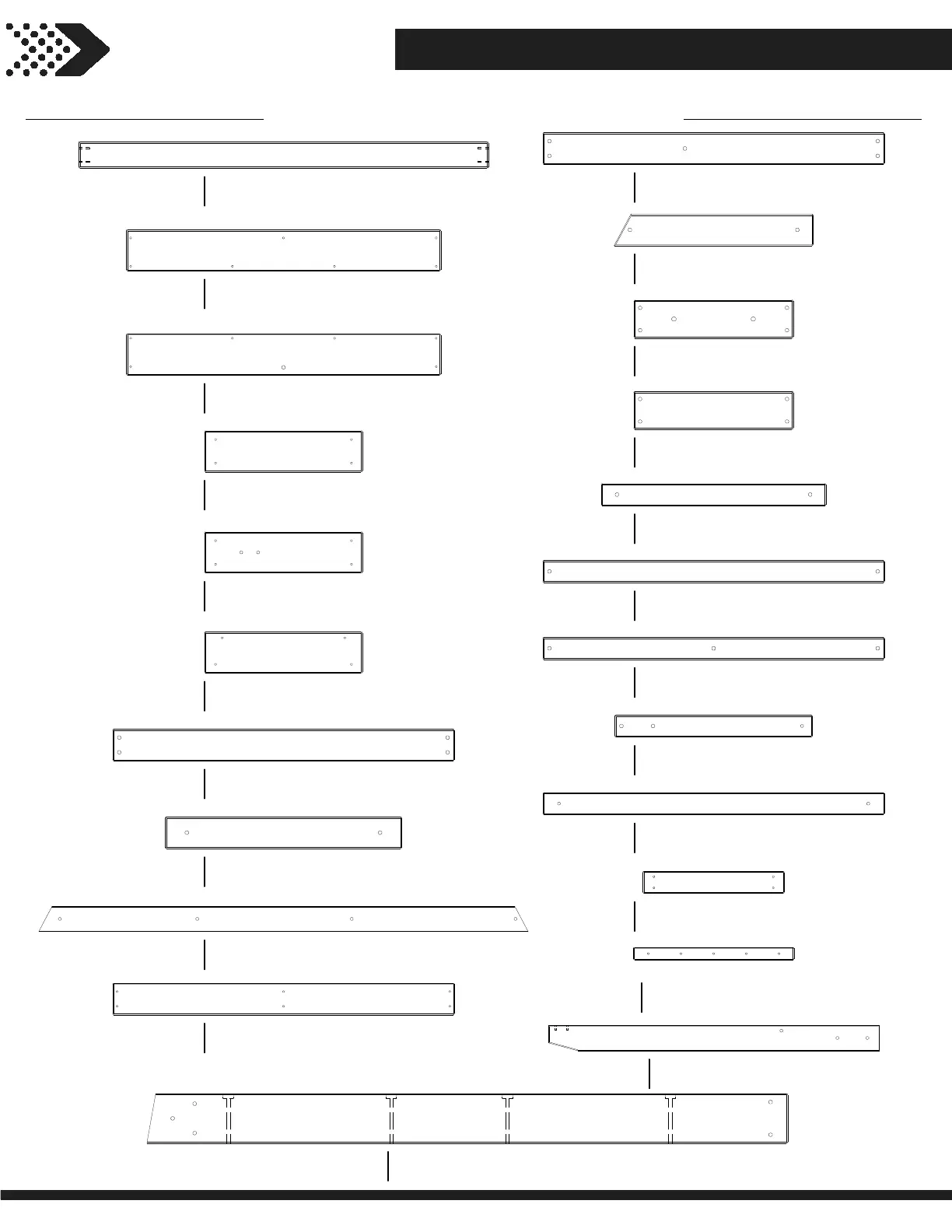

Wood Components (Not to Scale)
Parts Identification
LADDER RUNG - W4L13286
5/8"x4 3/8"x16 7/8" (16x112x430)
L4
(4)
FLOOR BOARD - W4L13224
5/8"x3 3/8"x36 5/8" (16x86x930)
M4
(5)
SIDE RAIL - W4L13214
5/8"x2 3/8"x24 1/8" (16x60x612)
N1
(7)
SIDE RAIL - W4L13218
5/8"x2 3/8"x36 5/8" (16x60x930)
N2
(3)
TOP RAIL - W4L13229
5/8"x2 3/8"x21 1/8" (16x60x538)
N4
(2)
PICKET - W4L13281
5/8"x2 3/8"x15 1/8" (16x60x385)
N6
(4)
FLOOR SUPPORT - W4L13289
15/16"x1 5/16"x17 1/4" (24x34x438)
T1
(2)
FLOOR BOARD - W4L13223
5/8"x4 3/8"x33 3/4" (16x112x856)
L1
(1)
FLOOR BOARD - W4L13225
5/8"x4 3/8"x33 3/4" (16x112x856)
L2
(1)
LADDER RUNG - W4L13285
5/8"x4 3/8"x16 7/8" (16x112x430)
L3
(1)
TOP LADDER RUNG - W4L13287
5/8"x4 3/8"x16 7/8" (16x112x430)
L5
(1)
GROUND RAIL - W4L13215
5/8"x3 3/8"x36 5/8" (16x86x930)
M1
(1)
GROUND RAIL - W4L13216
5/8"x3 3/8"x25 3/8" (16x86x644)
M2
(1)
ANGLE GROUND RAIL - W4L13217
5/8"x3 3/8"x65 5/8" (16x86x1666)
M3
(1)
GROUND RAIL - W4L13209
5/8"x3 3/8"x36 5/8" (16x86x930)
M5
(1)
SWING BEAM 2 POSITION - W4L13291
2"x5 1/4"x68 3/4" (50x134x1745)
SB74
(1)
GROUND RAIL - W4L13296
5/8"x3 3/8"x21 3/8" (16x86x542)
M6
(1)
SLIDE BRACE - W4L13297
5/8"x3 3/8"x14 1/4" (16x86x362)
M77
(1)
SLIDE BRACE - W4L13298
5/8"x3 3/8"x14 1/4" (16x86x362)
M78
(1)
TOP RAIL - W4L13220
5/8"x2 3/8"x36 5/8" (16x60x930)
N3
(1)
TOP RAIL - W4L13280
5/8"x2 3/8"x36 5/8" (16x60x930)
N5
(1)
SWING BEAM SUPPORT - W4L13292
2"x3 3/8"x44 1/4" (50x86x1123)
W71
(1)
SAFETY RAIL - W4L13299
1"x2 3/8"x36 5/8" (24x60x930)
J3
(1)
4
