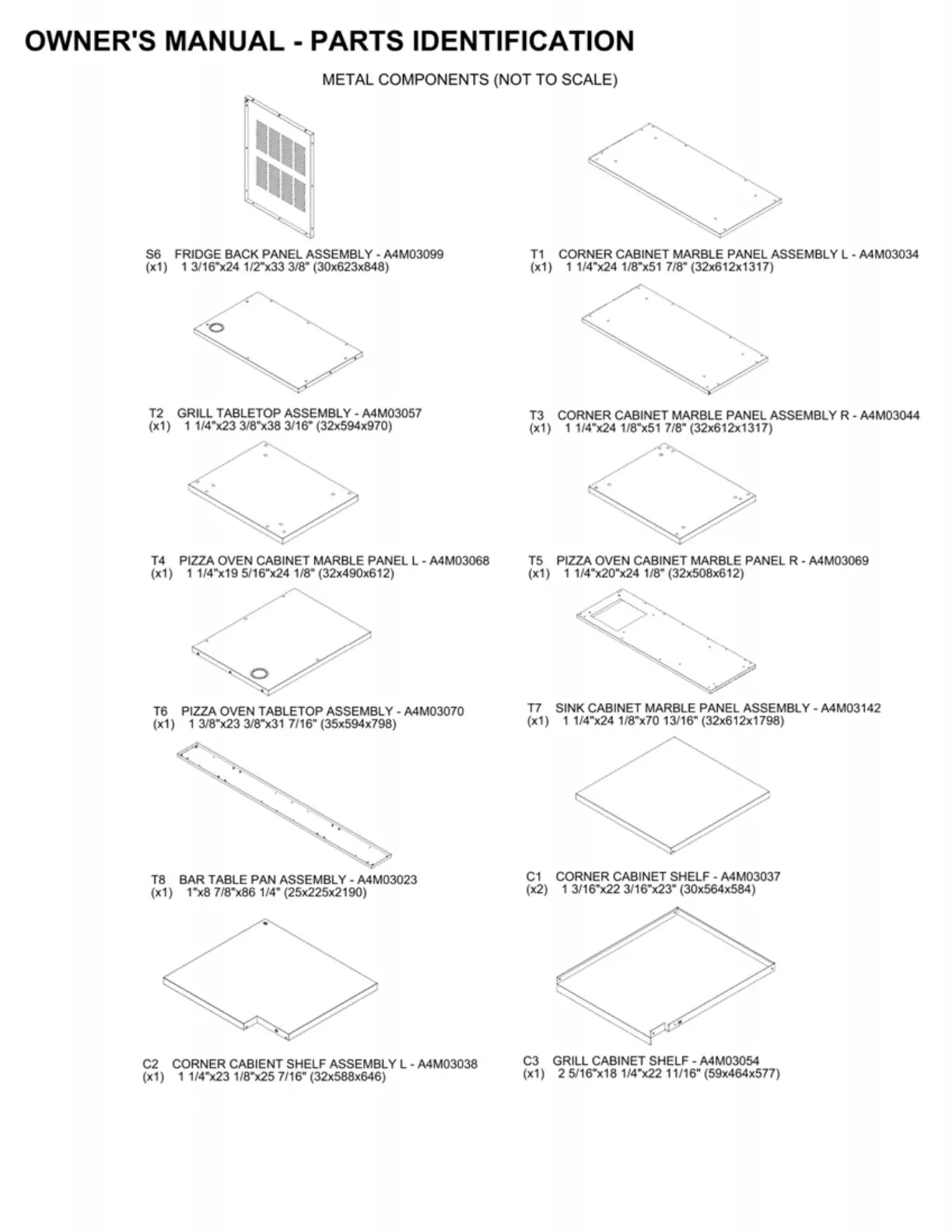

OWNER'S MANUAL - PARTS IDENTIFICATION
MET
AL
COMPONENTS (NOT TO SCALE)
S6 FRIDGE BACK PANEL ASSEMBLY - A4M03099
(x1) 1 3/16"x24 1 /2"x33 3/8" (30x623x848)
T2 GRILL TABLETOP ASSEMBLY -A4M03057
(x1) 1 1/4"x23 3/8"x38 3/16" (32x594x970)
T4 PIZZA OVEN CABINET MARBLE
PANELL
-A4M03068
(x1)
11/4"x19
5/16"x241/8" (32x490x612)
T6 PIZZA OVEN TABLETOP ASSEMBLY -A4M03070
(x1) 13/8"x233/8"x31 7/16" (35x594x798)
T8 BAR TABLE PAN ASSEMBLY
- A4M03023
(x1) 1 "x8 7/8"x86 1/4" (25x225x2190)
C2 CORNER CABIENT
SHELF ASSEMBLY L
- A4M03038
(x1) 1
1/4"x23 1/8"x25 7/16" (32x588x646)
T1
CORNER CABINET MARBLE PANEL ASSEMBLY L - A4M03034
(x1)
11
/4"x241/8"x51 7/8" (32x612x1317)
T3 CORNER CABINET MARBLE PANEL ASSEMBLY R
- A4M03044
(x1) 11/4"x241/8"x51 7/8" (32x612x1317)
T5 PIZZA OVEN CABINET MARBLE PANEL R - A4M03069
(x
1) 1 1/4"x20"x24 1/8" (32x508x612)
T7 SINK CABINET MARBLE PANEL ASSEMBLY
-A4M03142
(x1)
11
/
4"x241
/8"x7013/16" (32x612x1798)
C1
CORNER CABINET SHELF - A4M03037
(x2) 1 3/16"x22 3/16"x23" (30x564x584)
C3 GRILL CABINET SHELF
- A4M03054
(x1)
2 5/16"x18 1/4"x22
11
/16" (59x464x577)
To Next Page
