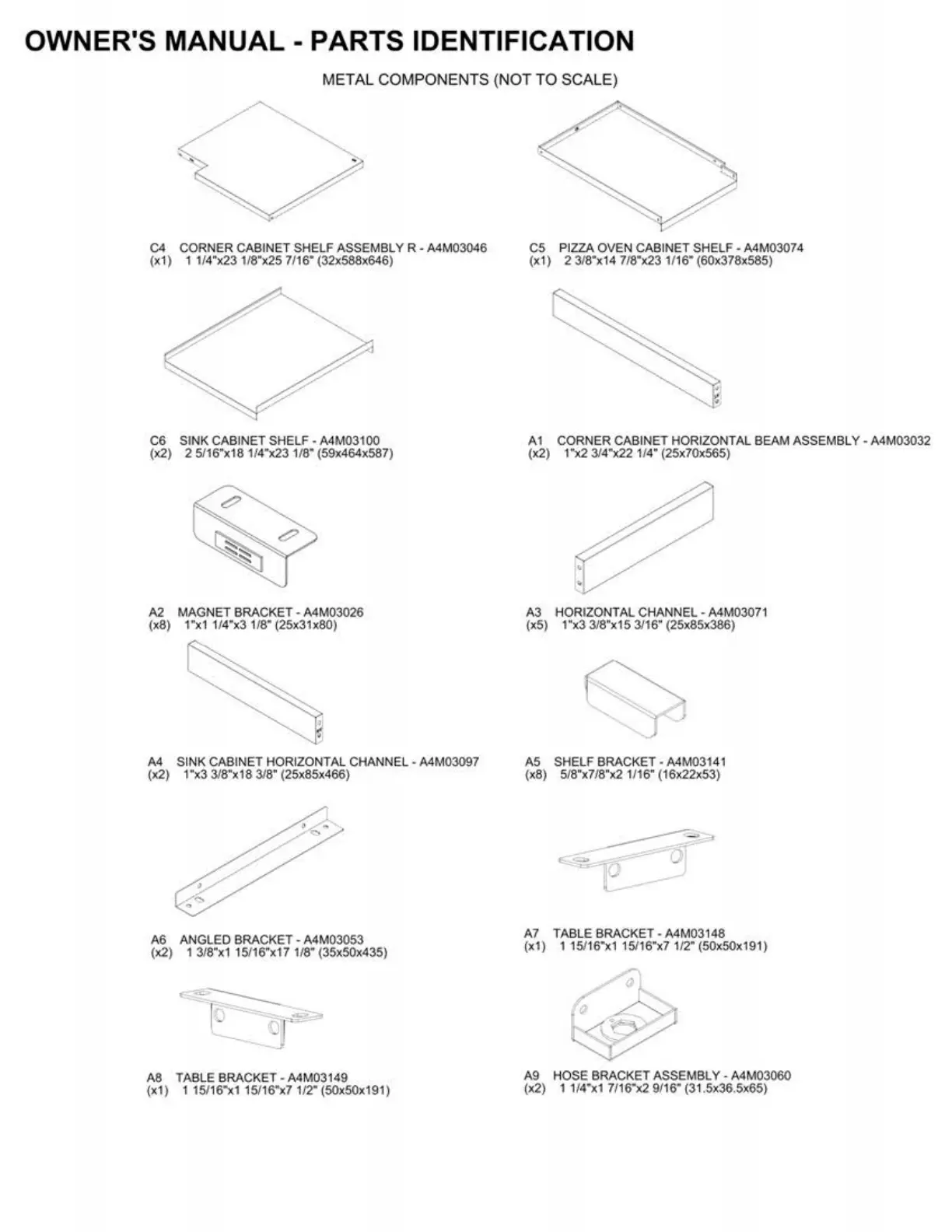

OWNER'S MANUAL - PARTS IDENTIFICATION
MET AL COMPONENTS (NOT TO SCALE)
C4 CORNER CABINET SHELF ASSEMBLY R - A4M03046
(x 1) 1 1/4"x23 1/8"x2S 7/16" (32xS88x646)
C6 SINK CABINET SHELF -A4M03100
(x2) 2 S/16"x18 1/4"x23 1/8" (S9x464xS87)
A2 MAGNET BRACKET - A4M03026
(x8)
1"x1 1/4"x3 1/8" (2Sx31x80)
A4 SINK CABINET HORIZONTAL CHANNEL - A4M03097
(x2) 1 "x3 3/8"x18 3/8" (2Sx8Sx466)
A6 ANGLED BRACKET - A4M030S3
(x2) 1 3/8"x1 1S/16"x17 1/8" (3SxS0x43S)
AB TABLE BRACKET-A4M03149
(x1) 11S/16"x11S/16"x71/2" (S0xSOx191)
CS PIZZA OVEN CABINET SHELF - A4M03074
(x1) 2 3/8"x14 7/8"x23 1/16" (60x378xS8S)
A1 CORNER CABINET HORIZONTAL BEAM ASSEMBLY -A4M03032
(x2) 1 "x2 3/4"x22 1/4" (2Sx70xS6S)
A3 HORIZONTAL CHANNEL - A4M03071
(xS) 1 "x3 3/8"x1
S 3/16" (2Sx8Sx386)
AS SHELF BRACKET -A4M03141
(x8) S/8"x7/8"x2 1/16" (16x22xS3)
A7 TABLE BRACKET -A4M03148
(x1) 1
1S /16"x1 1S /16"x7 1/2" (S0xS0x191)
A9 HOSE BRACKET ASSEMBLY - A4M03060
(x2)
11 /4 "x17 /1 6"x29/ 16" (31.Sx36.Sx6S)
