106

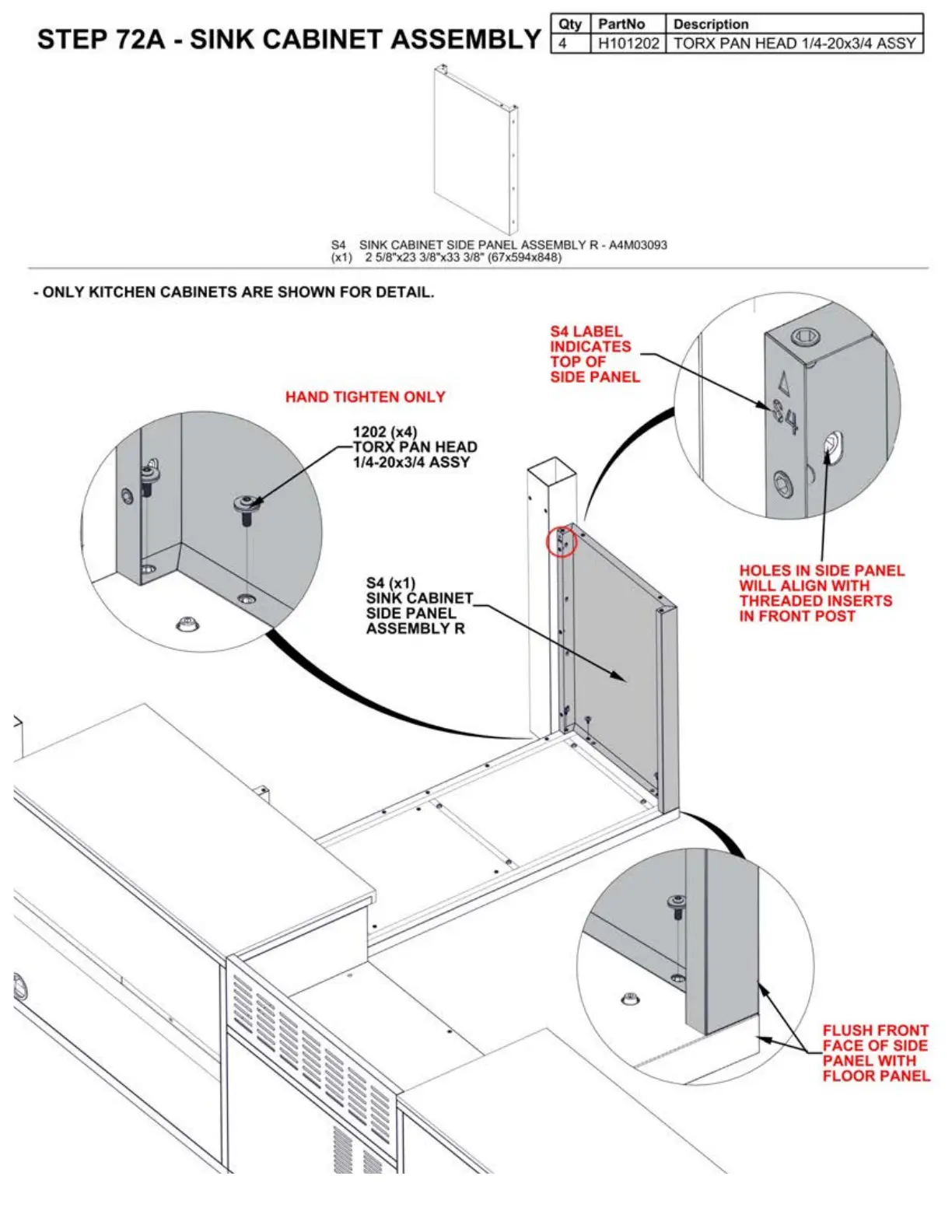

STEP 72A - SINK CABINET ASSEMBLY
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
S4 S IN K CABINET SIDE PANEL ASSEMBLY R - A4M03093
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
HAND TIGHTEN ONLY
1202 {x4)
TORX PAN HEAD
1/4-20x3/4 ASSY
S4 (x1)
SINK CABINET
SIDE PANEL
ASSEMBLY R
S4
LABEL
INDICATES
TOP OF
SIDE PANEL
HOLES
IN SIDE PANEL
WILL ALIGN WITH
THREADED INSERTS
IN FRONT POST
FLUSH FRONT
FACE OF SIDE
PANEL WITH
FLOOR PANEL
