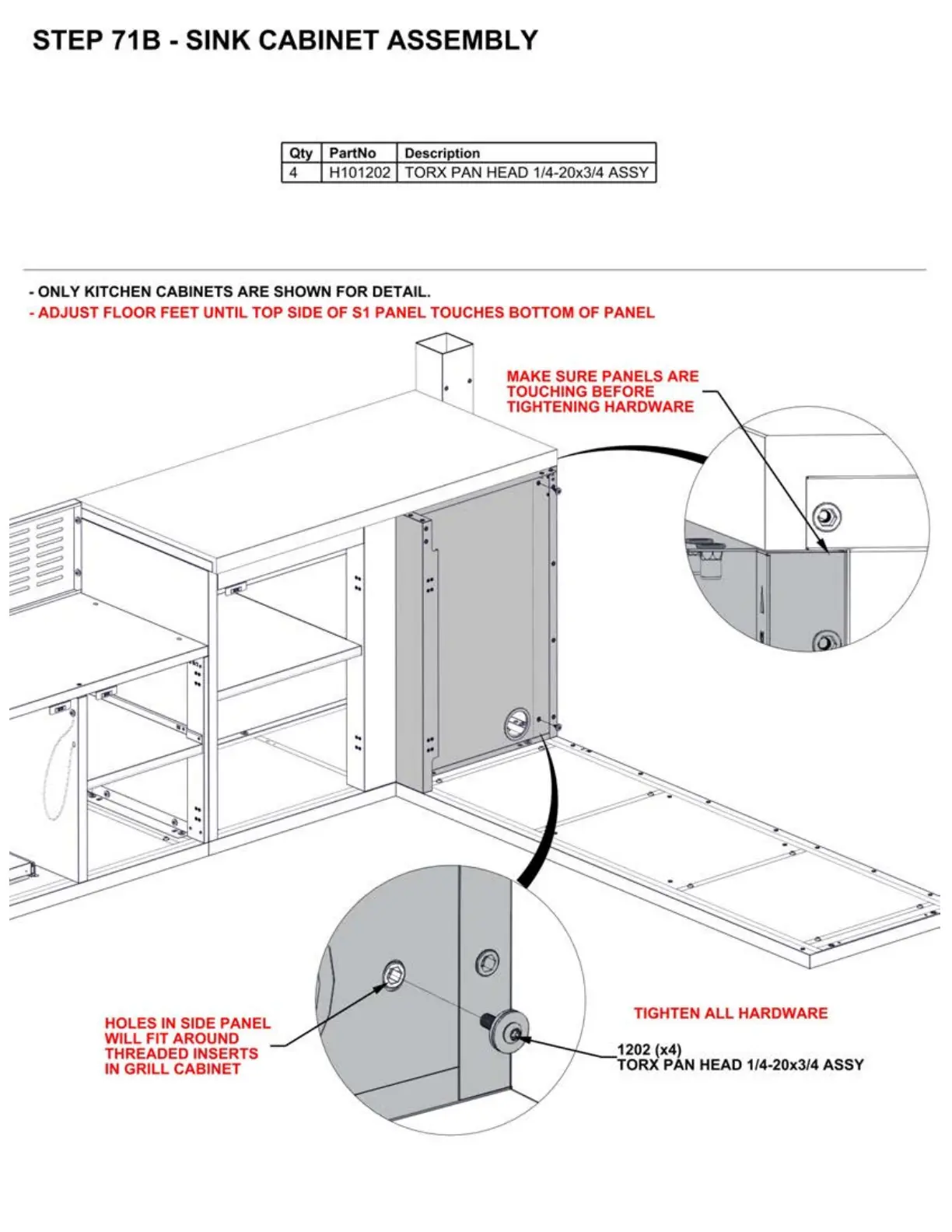

STEP 71 B - SINK CABINET ASSEMBLY
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
-
ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- ADJUST FLOOR FEET UNTIL TOP SIDE OF
S1 PANEL TOUCHES BOTTOM OF PANEL
HOLES IN SIDE PANEL
WILL FIT AROUND
THREADED INSERTS
IN
GRILL CABINET
MAKE SURE PANELS ARE
TOUCHING BEFORE
TIGHTENING HARDWARE
TIGHTEN
ALL HARDWARE
1202 (x4)
TORX PAN HEAD 1/4-20x3/4 ASSY
