Qty
PartNo Description

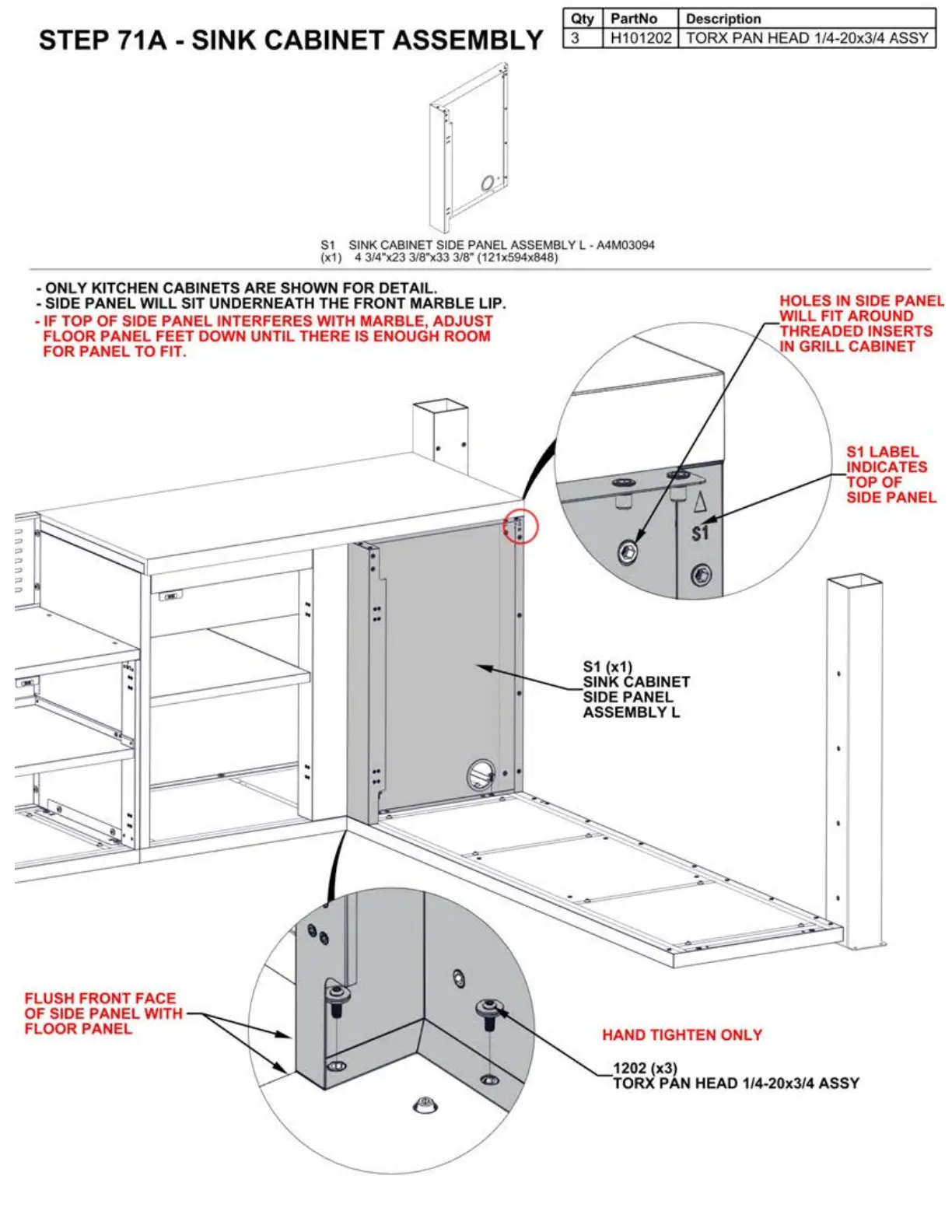

STEP 71A • SINK CABINET ASSEMBLY 3 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
S1
SINK CABINET SIDE PANEL ASSEMBLY L - A4M03094
(x1) 4 3/4"x23 3/8"x33 3/8" (121x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- SIDE PANEL
WILL
SIT UNDERNEATH THE FRONT MARBLE LIP.
- IF TOP OF SIDE PANEL INTERFERES WITH MARBLE, ADJUST
FLOOR PANEL FEET DOWN UNTIL THERE IS ENOUGH ROOM
FOR PANEL TO FIT.
FLUSH FRONT FACE
OF SIDE PANEL WITH
FLOOR PANEL
..
..
•
S1
(x1)
SINK CABINET
SIDE PANEL
ASSEMBLY L
HAND TIGHTEN ONLY
1202 (x3)
HOLES
IN
SIDE PANEL
WILL
FIT AROUND
THREADED INSERTS
IN
GRILL CABINET
S1
LABEL
INDICATES
TOP OF
SIDE PANEL
TORX PAN HEAD 1/4-20x3/4 ASSY
To Next Page
