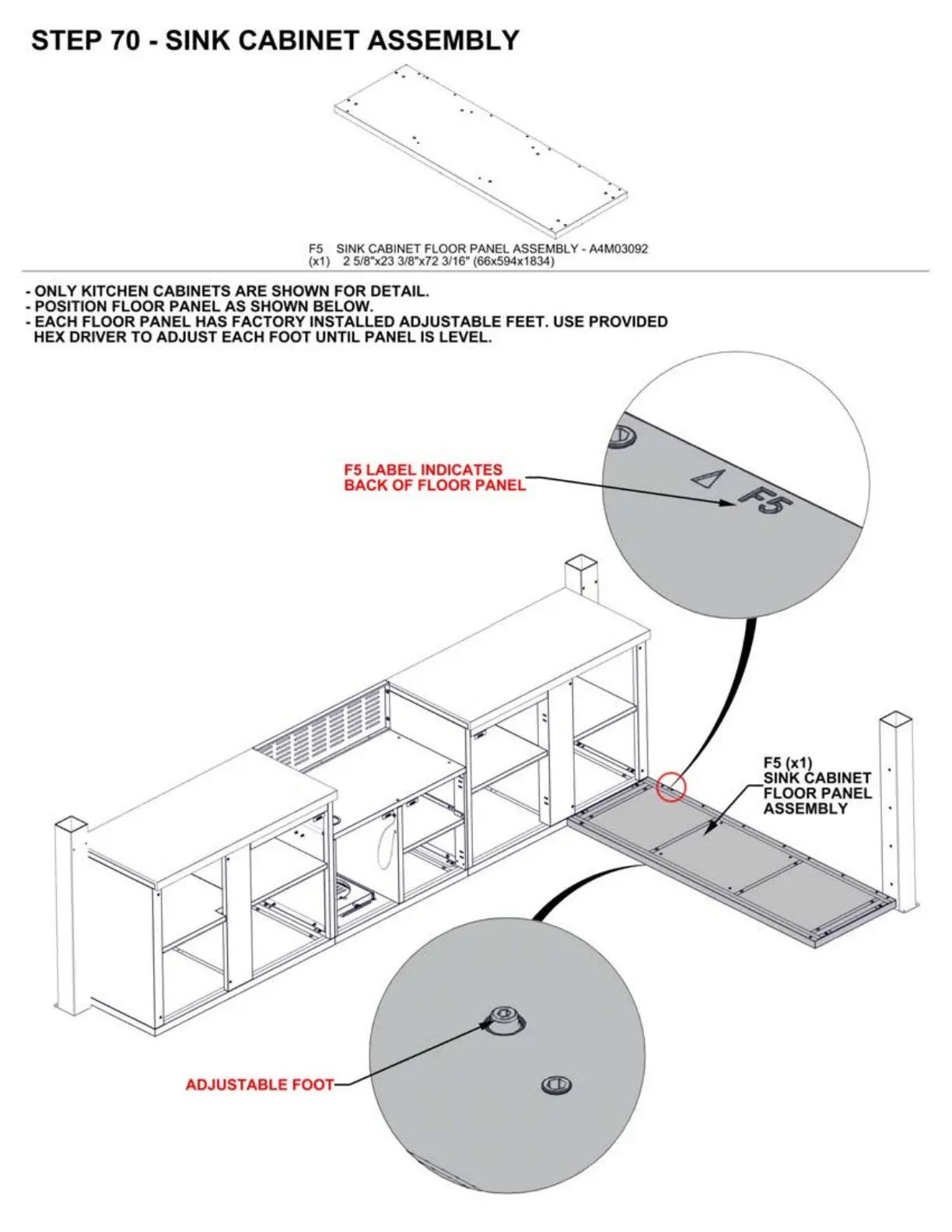

STEP 70 - SINK CABINET ASSEMBLY
F5 SINK CAB IN ET FLOOR PAN EL ASSEMBLY - A4M03092
(x1) 2 5/8"x23 3/8"x72 3/16" (66x594x1834)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- POSITION FLOOR PANEL
AS SHOWN BELOW.
- EACH FLOOR PANEL HAS FACTORY INSTALLED
ADJUSTABLE FEET. USE PROVIDED
HEX DRIVER TO
ADJUST EACH FOOT UNTIL PANEL IS LEVEL.
ADJUSTABLE FOOT
F5
LABEL INDICATES
BACK OF FLOOR PANEL
F5 (x1)
SINK CABINET
FLOOR PANEL
ASSEMBLY
