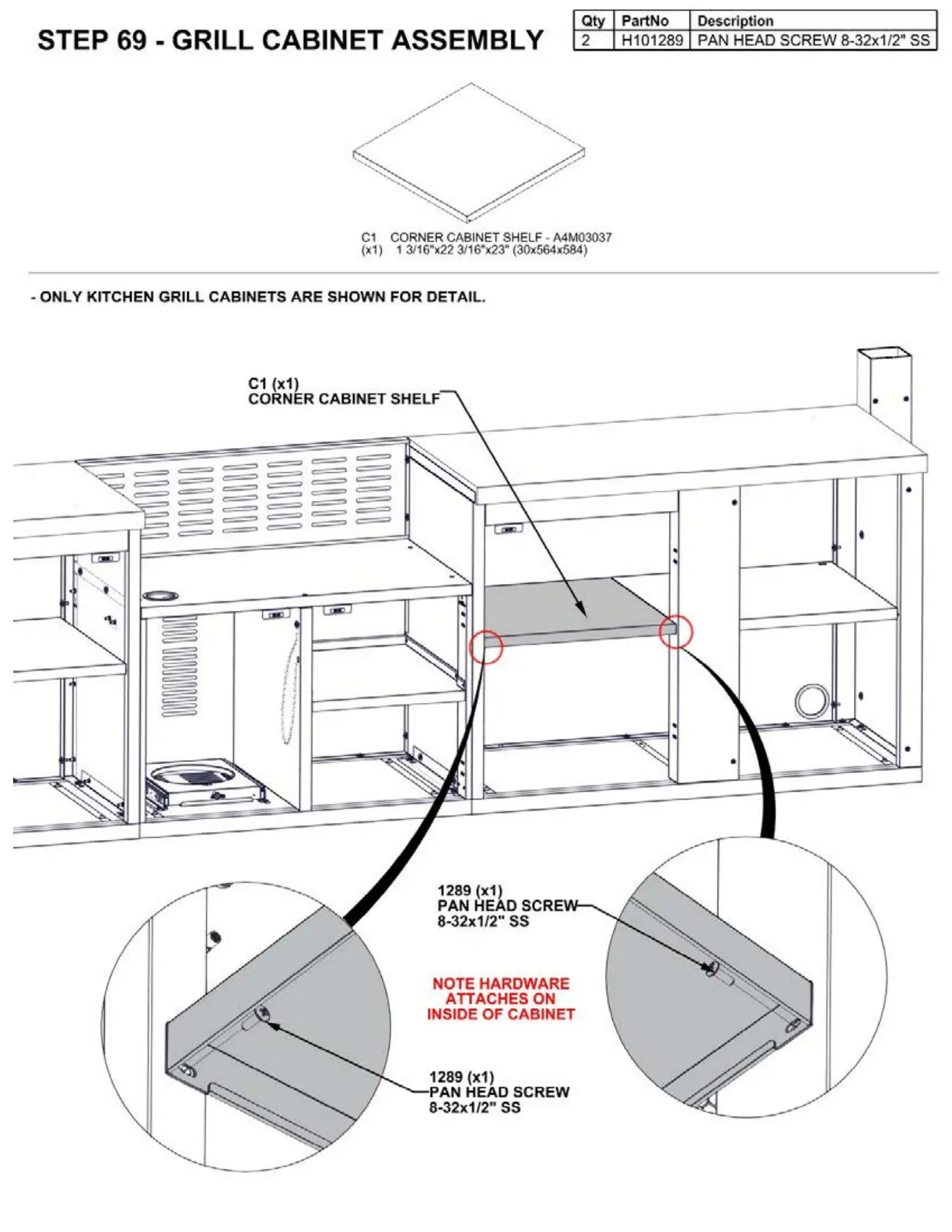

STEP 69 - GRILL CABINET ASSEMBLY
Qty PartNo D
es
cription
2
H101289
PAN
HE
AD SCREW
8-32x1/2"
SS
C1
CORNER CABINET SHELF
- A4M03037
(x1)
13
/16"x223/16"x23" (30x564x584)
- ONLY KITCHEN GRILL CABINETS
ARE
SHOWN FOR DETAIL.
=
=
=
=
=
=
=
=
=
=
=
=
=
C1
(x
1)
CORNER CABINET SHELF
1289(x1)
PAN
HEADSCR
8-32x1/2"
ss
NOTE
HARDWARE
ATTACHES
ON
INSIDE OF CABINET
1289
{X1)
PAN HEAD SCREW
8-32x1/
2"
SS
