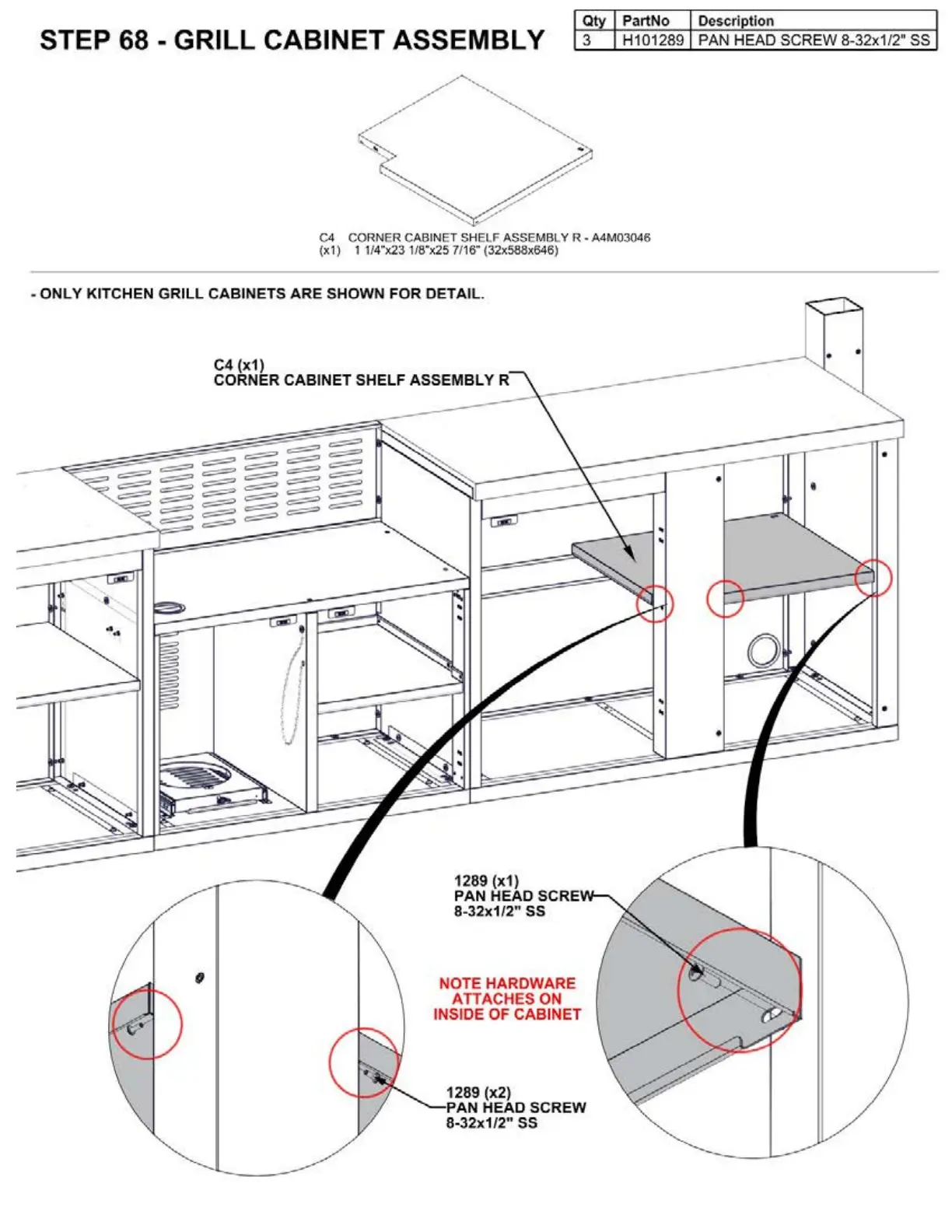

STEP 68 - GRILL CABINET ASSEMBLY
3 H101289 PAN HEAD SCREW 8-32x1/2" SS
C4 CORNER CABINET SHELF ASSEMBLY R - A4M03046
(x1) 1 1/4"x23 1/8"x25 7/16" (32x588x646)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
C4 (x1)
CORNER CABINET SHELF ASSEMBLY R
=== ===
1289 (x1)
PAN HEAD SCRE
8-32x1/2" SS
NOTE HARDWARE
ATTACHES ON
INSIDE OF CABINET
1289 (x2)
PAN HEAD SCREW
8-32x1/2" SS
•
