Backyard Discovery FUSION FIRE - Page 100

100

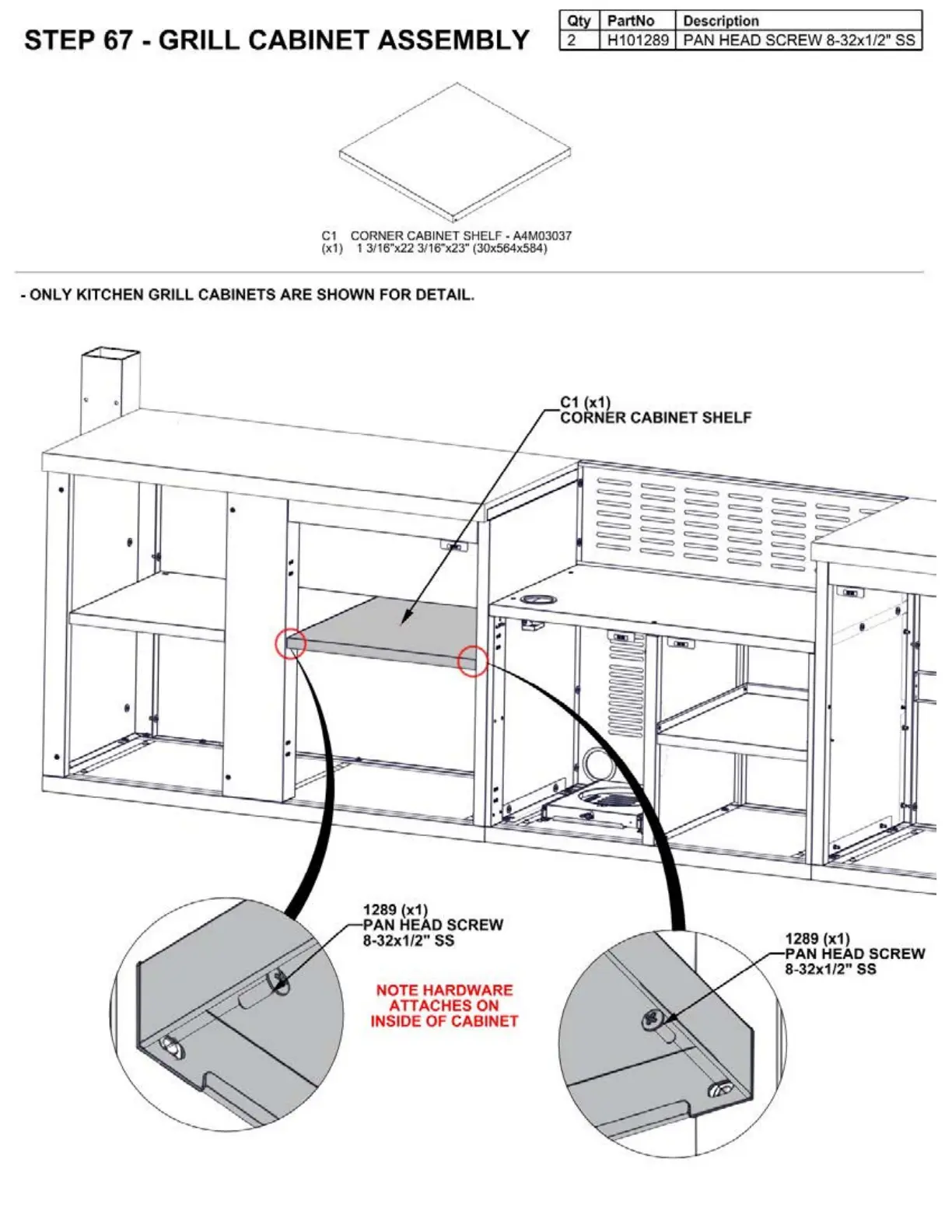

STEP 67 - GRILL CABINET ASSEMBLY
Qty PartNo Description
2 H101289 PAN HEAD SCREW 8-32x1/2" SS
C1 CORNER CABINET SHELF - A4M03037
(x1)
13/ 16"x223/16"x23" (30x564x584)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
•
•
•
•
•
•
-
-
1289 (x1)
PAN HEAD SCREW
8-32x1/2"
SS
NOTE HARDWARE
ATTACHES
ON
INSIDE OF CABINET
C1 (x1)
CORNER CABINET SHELF
=
===
===
===
===
===
===
==
=
===
===
==
==
==
==
=
/~ ,
--·-- t .. --·/
~~
-----
l.
1289 (x1)
PAN HEAD SCREW
8-32x1/
2" SS
