Qty PartNo Description

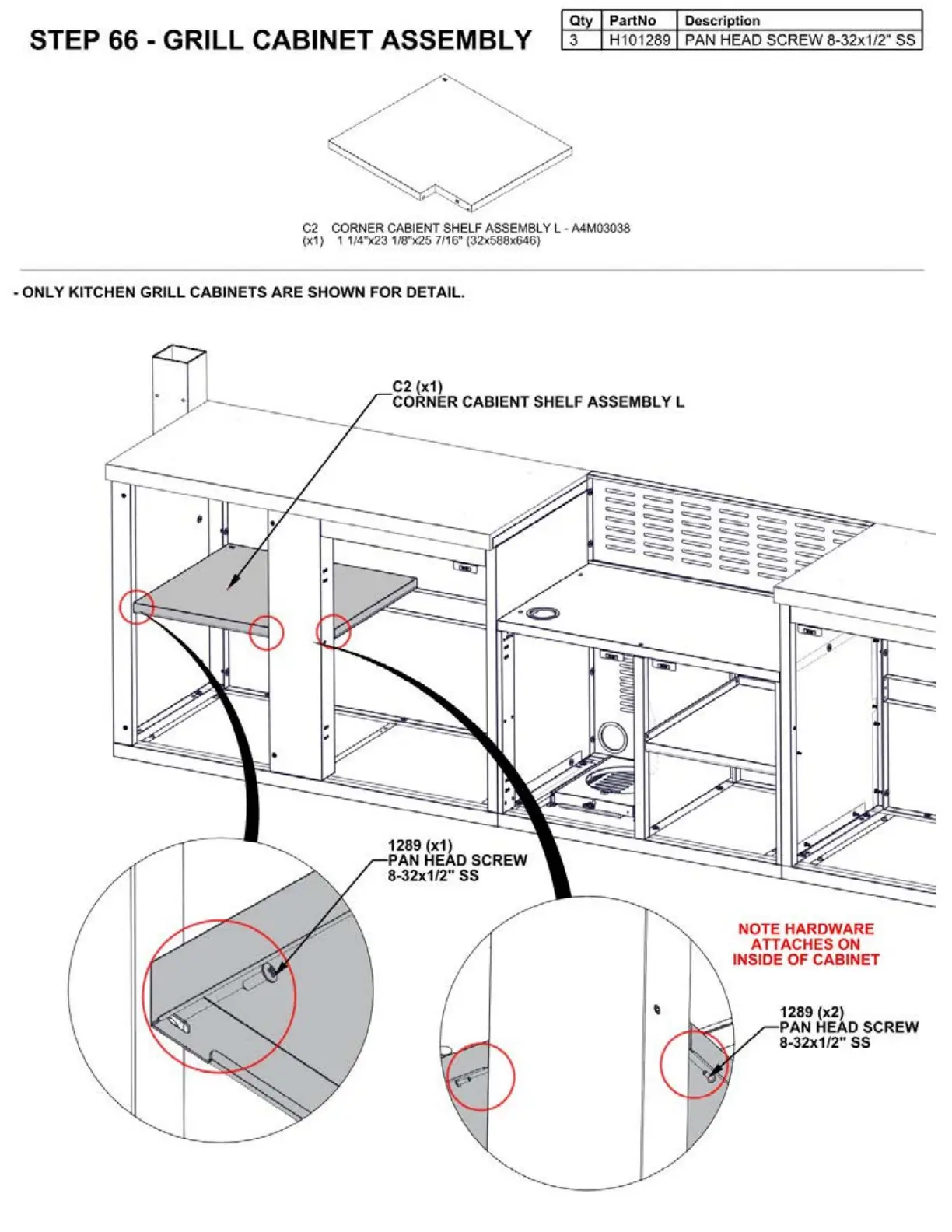

STEP 66 - GRILL CABINET ASSEMBLY

3 H101289 PAN HEAD SCREW 8-32x1/2"

CORNER CABIENT SHELF ASSEMBLY L - A4M03038

(x1)

11/

4"x23 1/8"x25 7/16" (32x588x646)

- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.

C2 (x1)

CORNER CABIENT SHELF ASSEMBLY L

1289(x1)

PAN HEAD SCREW

8-32x1/2" SS

NOTE HARDWARE

ATTACHES ON

INSIDE OF CABINET

1289 (x2)

PAN HEAD SCREW

8-32x1 /2" SS
