STEP
658

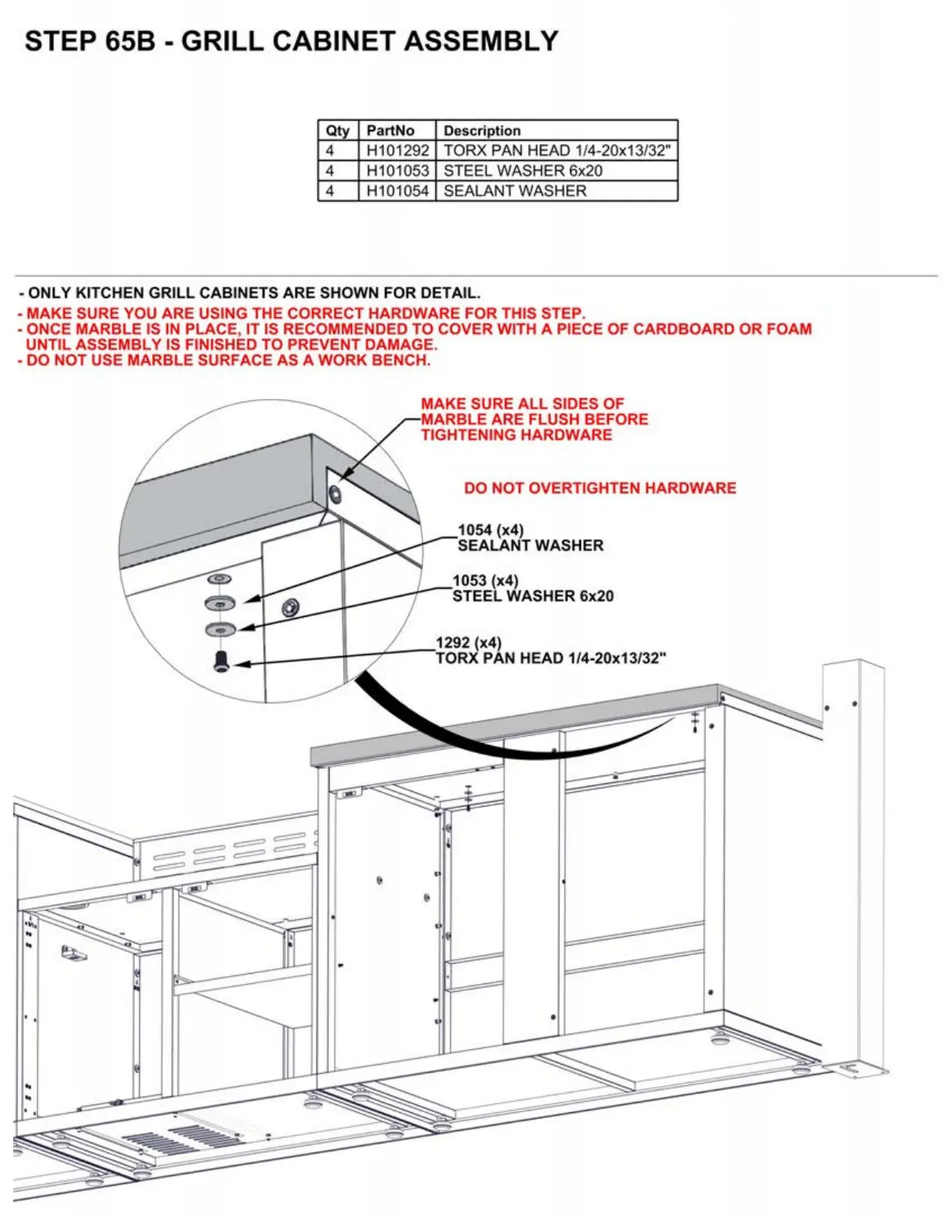

- GRILL CABINET ASSEMBLY
Qty
PartNo
Description
4 H101292
TORX
PAN
HEAD 1/4-20x13/32"
4 H101053 STEEL WASHER 6x20
4 H101054 SEALANT WASHER
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
- MAKE SURE YOU ARE USING THE CORRECT HARDWARE FOR THIS STEP.
- ONCE MARBLE
IS
IN PLACE,
IT
IS RECOMMENDED TO COVER WITH A PIECE OF CARDBOARD OR FOAM
UNTIL ASSEMBLY
IS
FINISHED TO PREVENT DAMAGE.
- DO NOT USE MARBLE SURFACE AS A WORK BENCH.
MAKE SURE
ALL
SIDES OF
MARBLE ARE FLUSH BEFORE
TIGHTENING HARDWARE
DO NOT OVERTIGHTEN HARDWARE
1054 (x4)
SEALANT WASHER
1053 (x4)
STEEL WASHER 6x20
•
•
To Next Page
