Backyard Discovery FUSION FIRE - Page 97

97

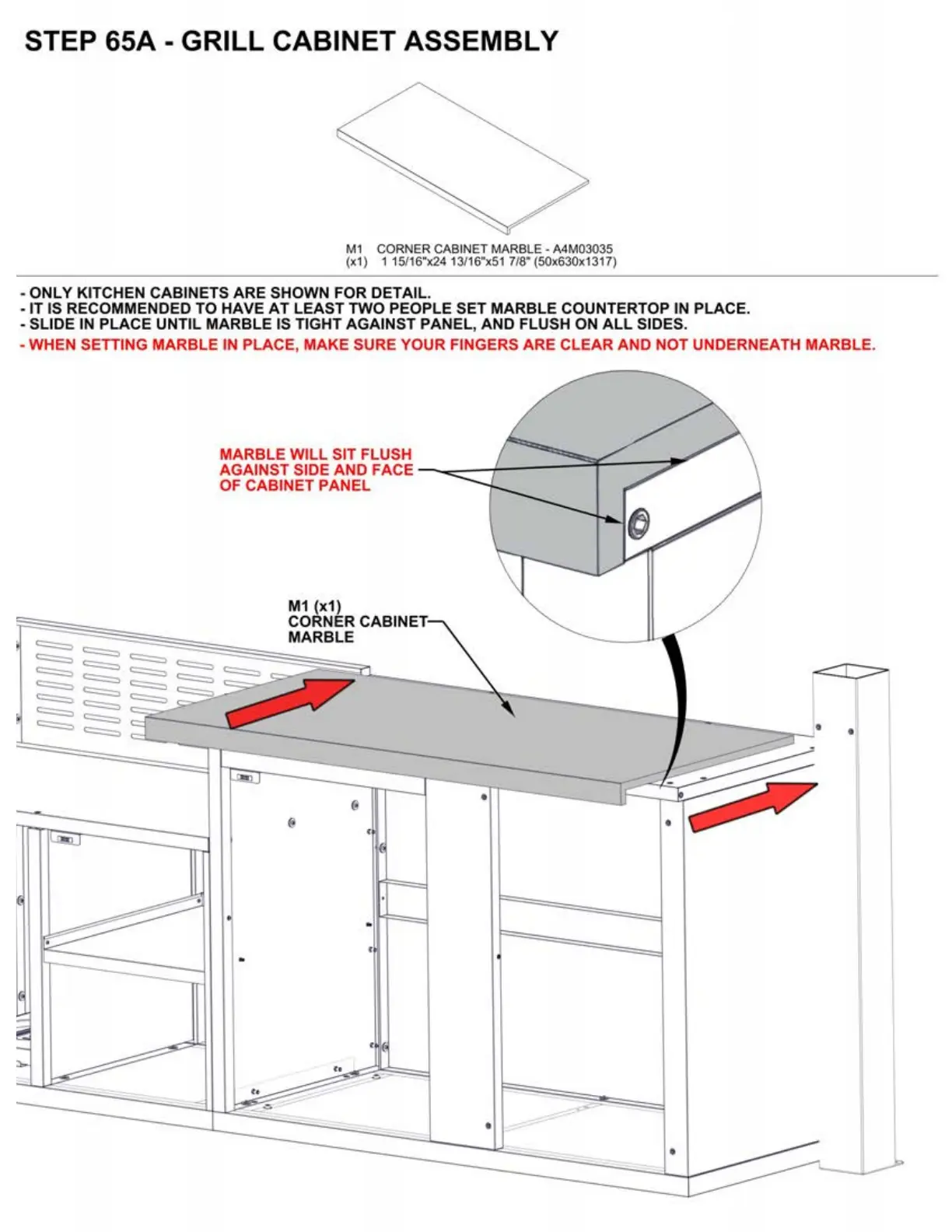

STEP 65A - GRILL CABINET ASSEMBLY
M1 CORNER CABINET MARB LE -A4M0 3035
(x1)
115 /16" x2413 /16" x51 7/8" (50x630x1317)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- IT IS RECOMMENDED TO HAVE
AT LEAST TWO PEOPLE SET MARBLE COUNTERTOP IN PLACE.
- SLIDE
IN PLACE UNTIL MARBLE IS TIGHT AGAINST PANEL, AND FLUSH ON ALL SIDES.
-WHEN SETTING MARBLE IN PLACE, MAKE SURE YOUR FINGERS ARE CLEAR AND NOT UNDERNEATH MARBLE.
j <:::::::::::,
<:::::::::::,<::::::::::::,<:::::::::::,
<:::::::::::, <::::::::::::, <:::::::::::, <:::::::::::, <:::::::::::,
<:::::::::::, <::::::::::::, <:::::::::::, <:::::::::::,
<:::::::::::, <:::::::::::, <:::::::::::, <:::::::::::,
<::::::::::::,
f, <:::::::::::, <::::::::::::,
<:::::::::::, <:::::::::::,
M1 (x1)
CORNER CABINET
MARBLE
