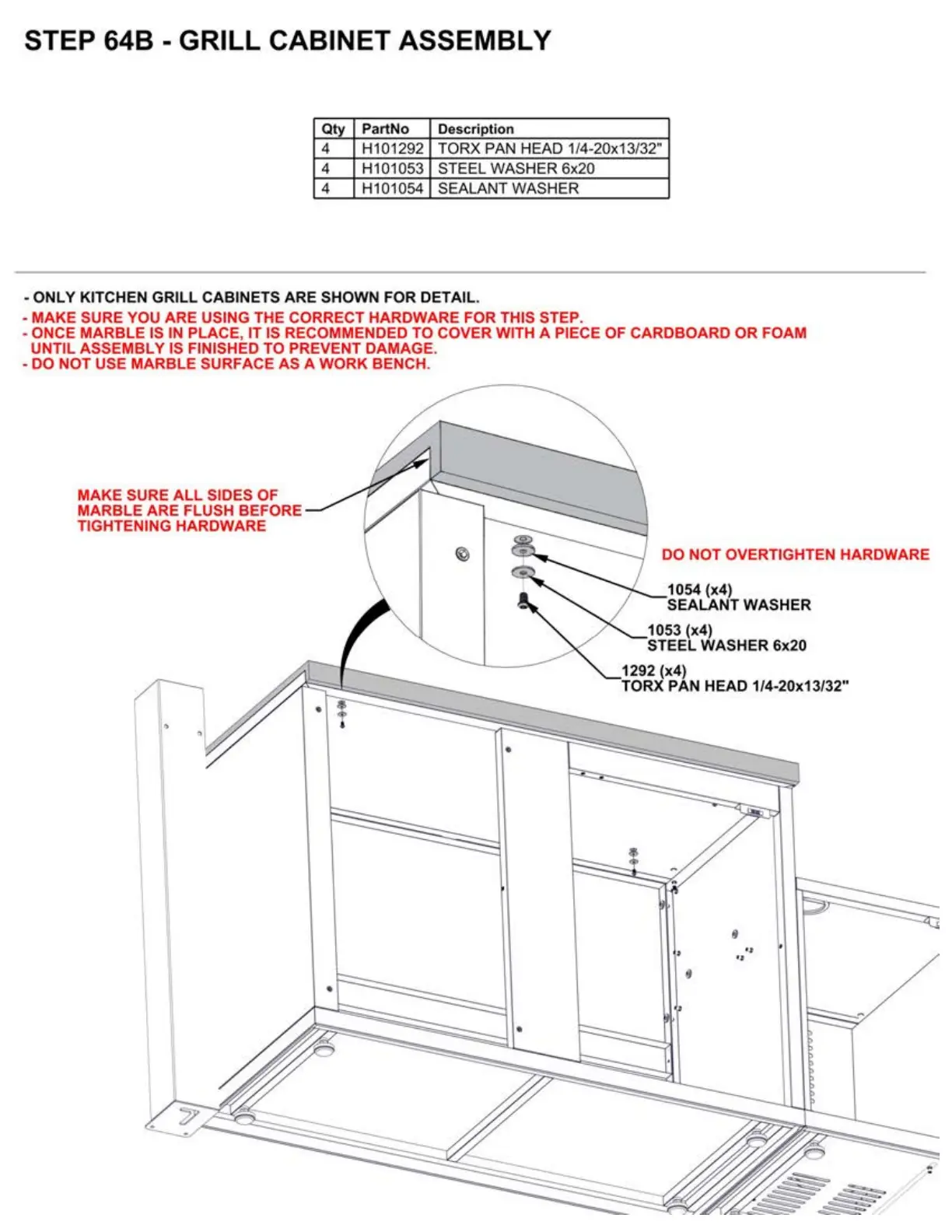

STEP
648
- GRILL CABINET ASSEMBLY
Qty PartNo Description
4 H101292 TORX PAN HEAD 1/4-20x13/32"
4 H101053 STEEL WASHER 6x20
4 H101054 SEALANT WASHER
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
- MAKE SURE YOU ARE USING THE CORRECT HARDWARE FOR THIS STEP.
- ONCE
MARBLE
IS
IN
PLACE, IT IS RECOMMENDED TO COVER WITH A PIECE OF
CARDBOARD
OR FOAM
UNTIL ASSEMBLY IS FINISHED TO PREVENT DAMAGE.
- DO NOT USE
MARBLE
SURFACE
AS
A
WORK
BENCH.
MAKE SURE
ALL
SIDES OF
MARBLE ARE FLUSH BEFORE
TIGHTENING HARDWARE
DO NOT OVERTIGHTEN HARDWARE
1054 (x4)
SEALANT
WASHER
1292 (x4)
TORX PAN HEAD 1/4-20x13/
32"
••
..
To Next Page
