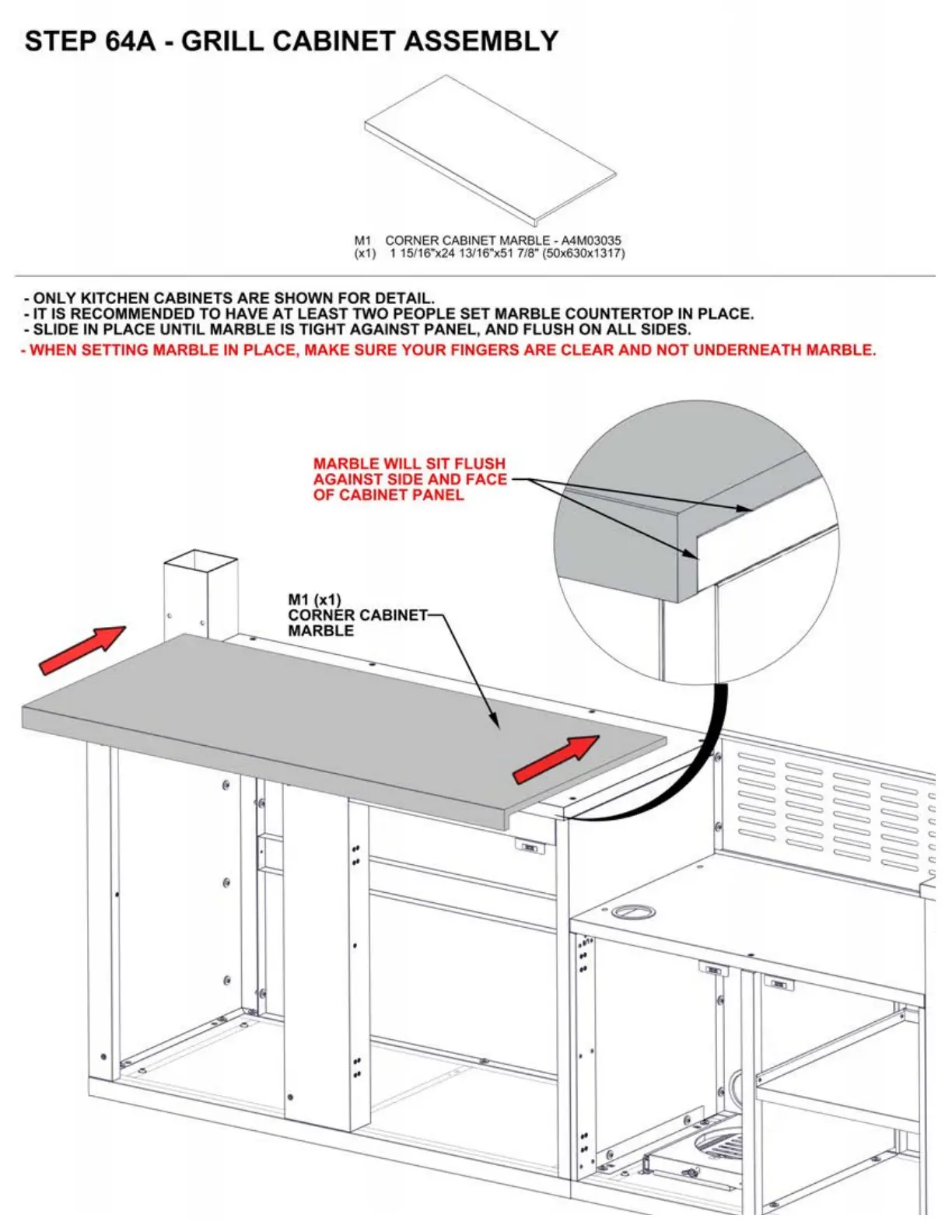

STEP 64A - GRILL CABINET ASSEMBLY
M1 CO RNER CABINET MARBLE -A4M03035
(x 1) 115 /16"x24 13/ 16"x517 /8"(50x630x1317)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- IT
IS RECOMMENDED TO HAVE AT LEAST TWO PEOPLE SET MARBLE COUNTERTOP IN PLACE.
- SLIDE IN PLACE UNTIL MARBLE
IS TIGHT AGAINST PANEL, AND FLUSH ON ALL SIDES.
-WHEN SETTING MARBLE IN PLACE, MAKE SURE YOUR FINGERS ARE CLEAR AND NOT UNDERNEATH MARBLE.
M1 (x1)
CORNER CABINET
MARBLE
<::::::::::::::
<:::::::::::::: <::::::::::::::
