Qty PartNo Description

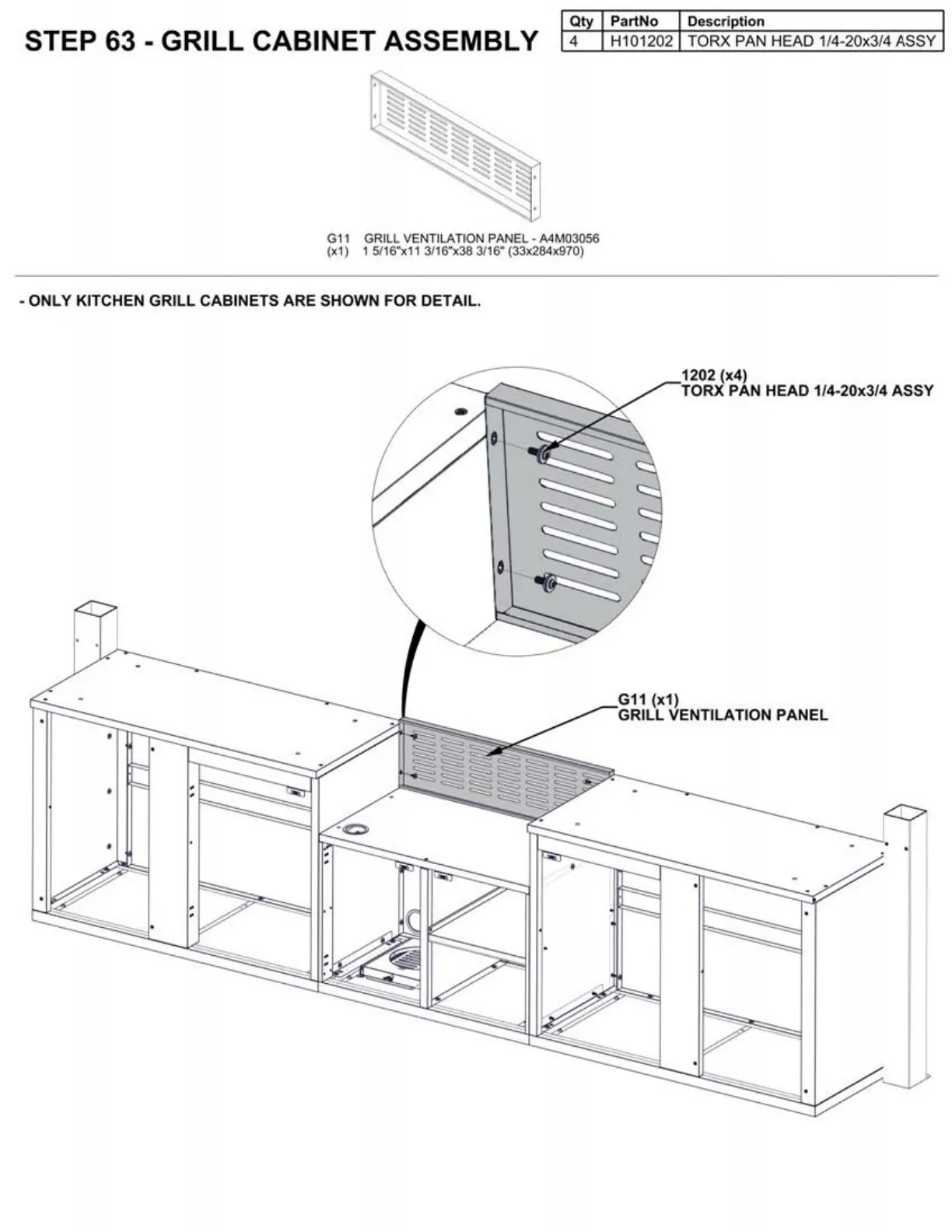

STEP 63 • GRILL CABINET ASSEMBLY 4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY

G11

GRILL VENTILATION PANEL - A4M03056

(x1) 1 5/16"x

3/16"x38 3/16" (33x284x970)

• ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.

1202 (x4)

TORX PAN HEAD 1/4-20x3/4 ASSY

G11

(x1)

GRILL VENTILATION PANEL
