Backyard Discovery FUSION FIRE - Page 108

108
Qty PartNo Description

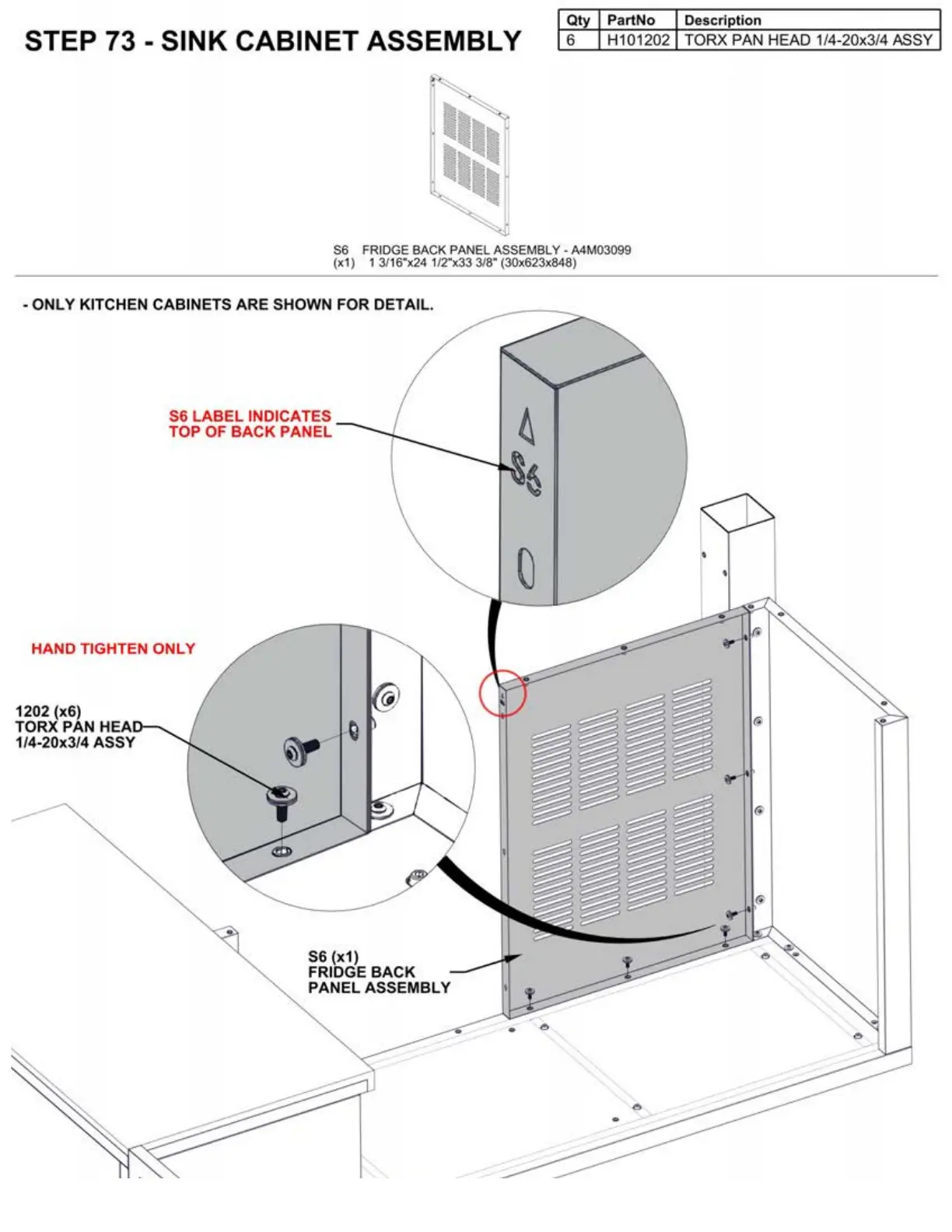

STEP 73 - SINK CABINET ASSEMBLY
6 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
S6 FRIDGE BACK PANEL ASSEMBLY - A4M03099
(x 1) 1 3/16" x2 4 1 /2 "x33 3/8" (30x623x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
S6 LABEL INDICATES
TOP OF BACK PANEL
HAND TIGHTEN ONLY
1202 (x6)
TORX PAN
HEA
1 /4-20x3/4 ASSY
S6 (x1)
FRIDGE
BACK
PANEL ASSEMBLY
