Backyard Discovery FUSION FIRE - Page 109

109

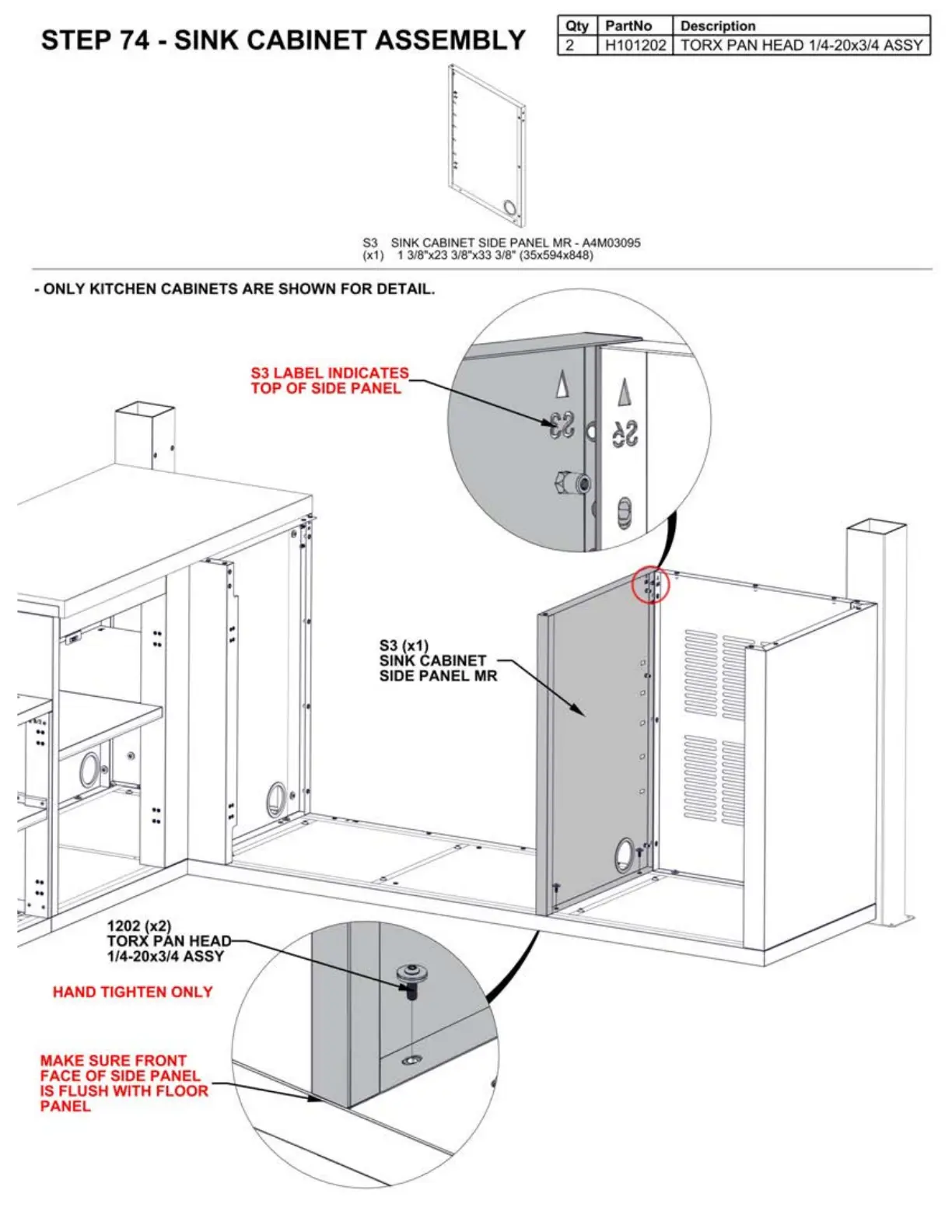

STEP 74 - SINK CABINET ASSEMBLY
Qty PartNo Description
2 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
S3 SINK CABINET SIDE PANEL MR - A4M03095
(x1) 1 3/8"x23 3/8"x33 3/8" (35x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
..
..
1202 (x2)
TORX PAN
HEA
1 /4-20x3/4 ASSY
HAND TIGHTEN
ONLY
MAKE SURE FRONT
FACE OF SIDE PANEL
IS FLUSH WITH FLOOR
PANEL
..
..
..
S3 LABEL INDICATES
TOP OF SIDE PANEL
S3 (x1)
SINK CABINET
SIDE PANEL MR
0
0
0 '
0
0
~S=
~
~
~
~
~
~
~
~
~
~
~
