Backyard Discovery FUSION FIRE - Page 111

111
Qty PartNo Description

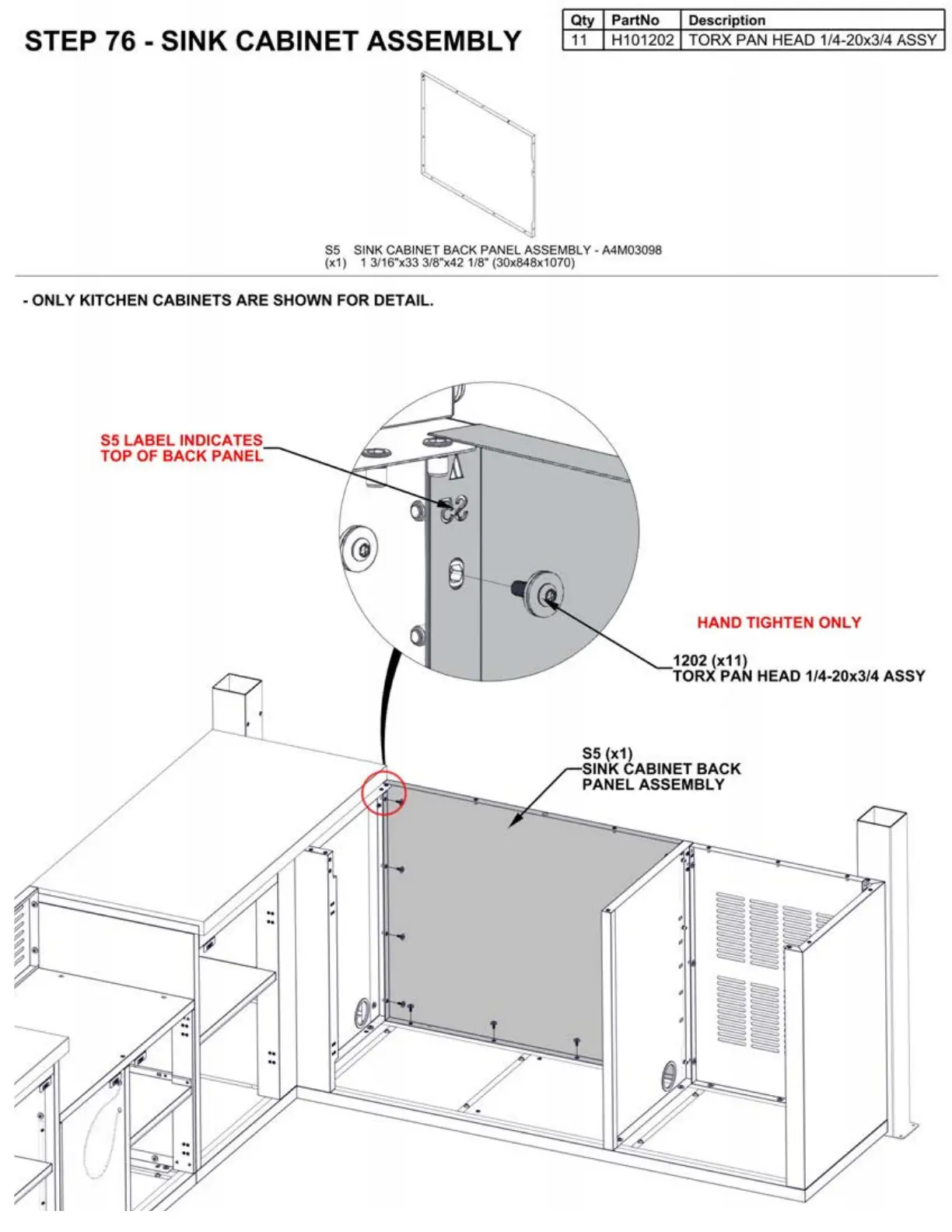

STEP 76 - SINK CABINET ASSEMBLY
11 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
S5 S IN K CABINET BACK PANEL ASSEMBLY - A4M03098
(x 1) 1 3/16"x33 3/8"x42 1/ 8" (30x848x1070)
• ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
55 LABEL INDICATES
TOP OF BACK PANEL
S5 (x1)
HAND TIGHTEN ONLY
1202 (x11)
TORX PAN HEAD 1/4-20x3/4 ASSY
SINK CABINET BACK
PANEL ASSEMBLY
