112
Qty PartNo Description

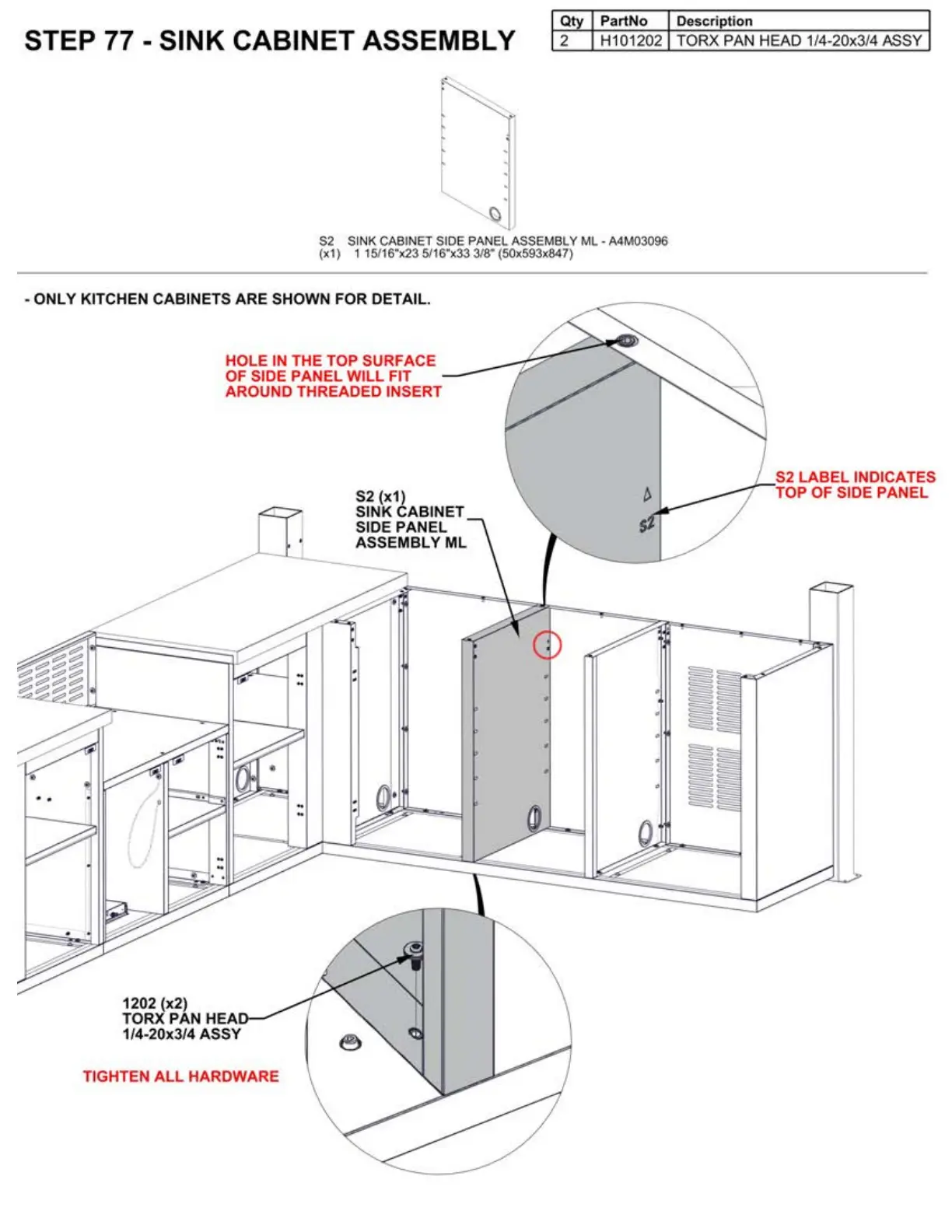

STEP 77 - SINK CABINET ASSEMBLY
2 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
S2 SINK CABINET SIDE PANEL ASSEMBLY ML - A4M03096
(x1) 1 15/16"x23 5/16"x33 3/8" (50x593x847)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
HOLE
IN THE TOP SURFACE
OF SIDE PANEL WILL FIT
AROUND THREADED INSERT
1202 (x2)
TORX PAN HEA
1 /4-20x3/4
ASSY
TIGHTEN ALL HARDWARE
52 (x1)
SINK CABINET
SIDE PANEL
ASSEMBLY ML
52 LABEL INDICATES
TOP
OF SIDE PANEL
