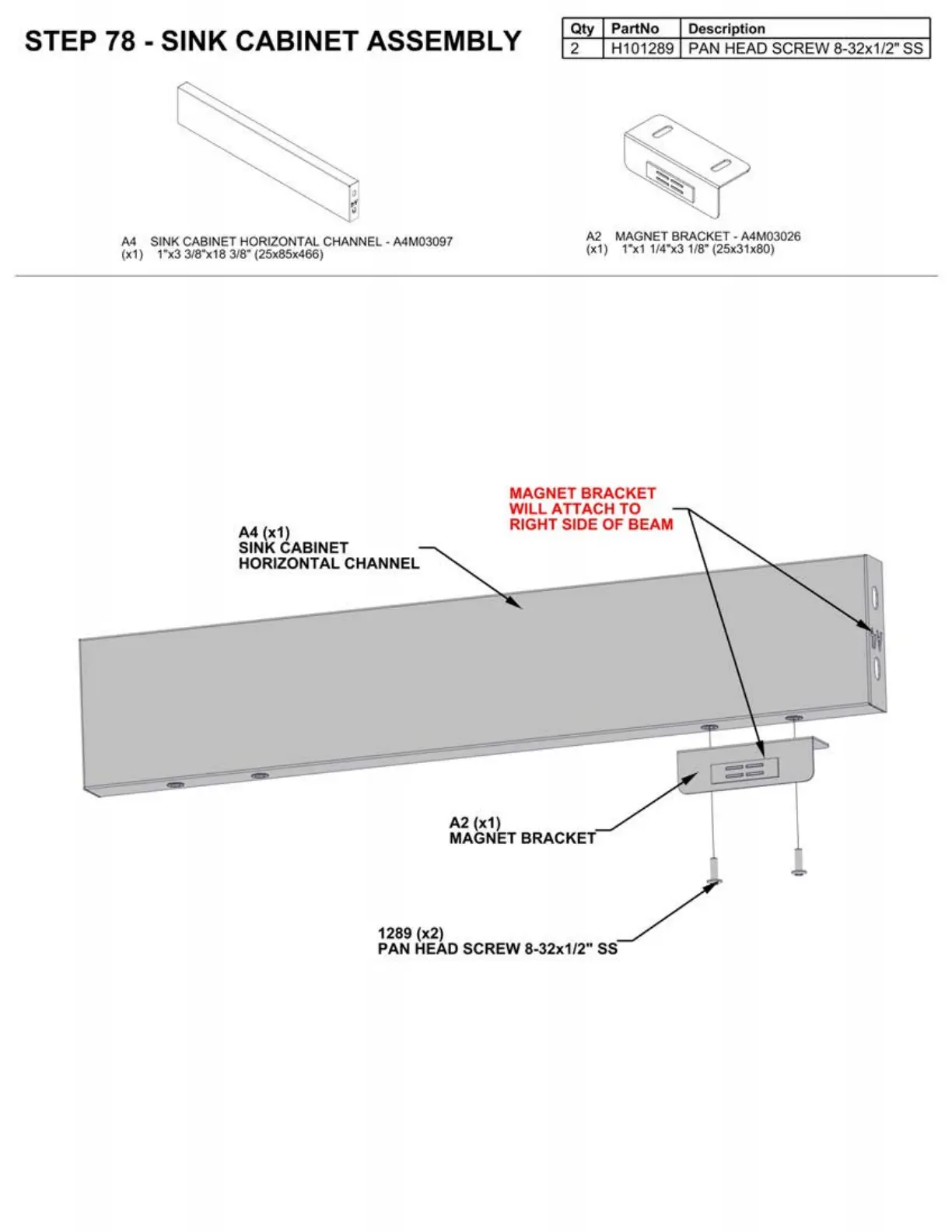

STEP 78 - SINK CABINET ASSEMBLY
Qty PartNo Description
2 H101289 PAN HEAD SCREW 8-32x1/2" SS
A4 SINK CABINET HORIZONTAL CHANNEL - A4M03097
(x1) 1"x3 3/B"x18 3/8" (25x85x466)
A4 (x1)
SINK CABINET
HORIZONTAL CHANNEL
A2 (x1)
A2 MAGNET BRACKET - A4M03026
(x1)
1"x1 1/4"x3 1/8" (25x31x80)
MAGNET BRACKET
WILL ATTACH TO
RIGHT SIDE OF BEAM
MAGNET BRACKET
1289 (x2)
PAN HEAD SCREW 8-32x1/2" SS
