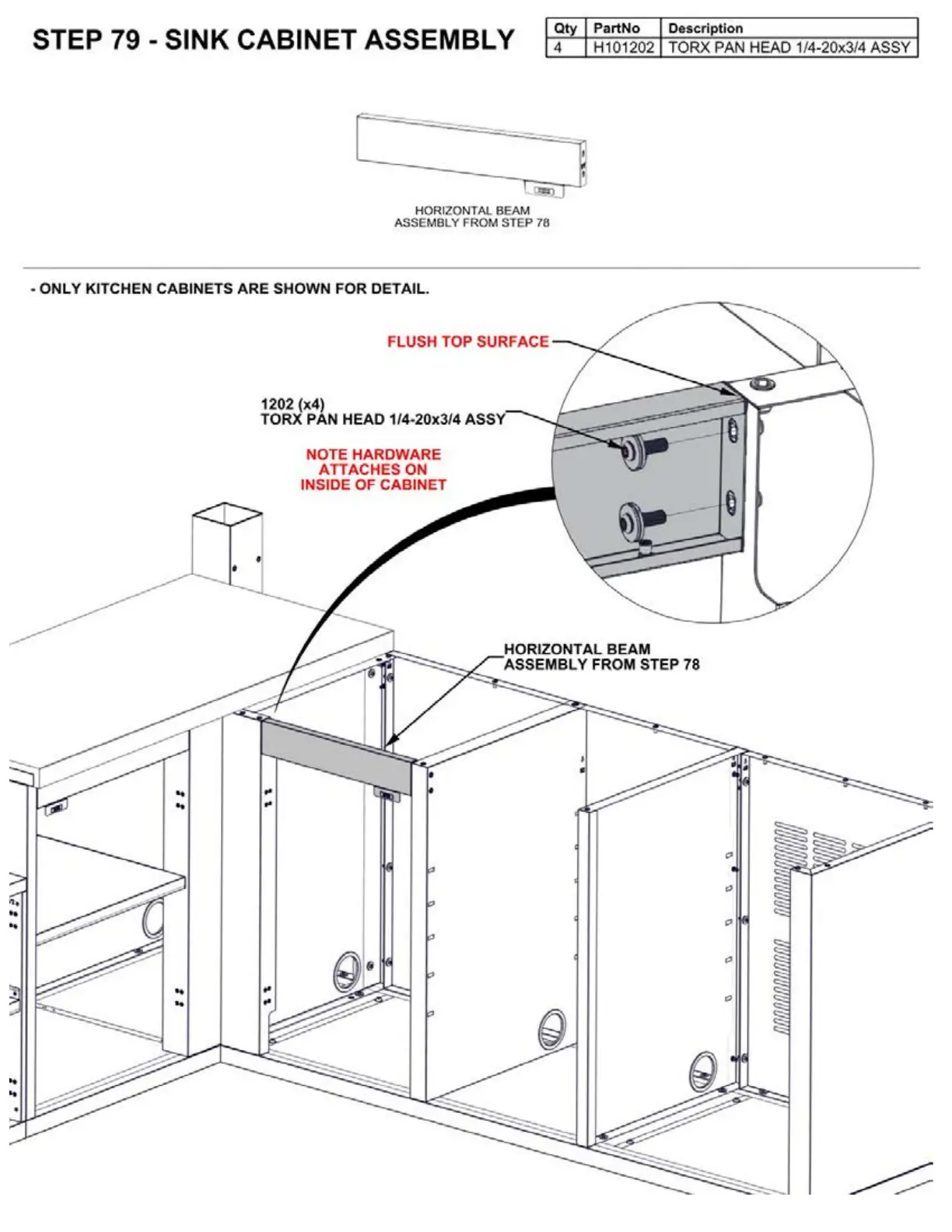

STEP 79 - SINK CABINET ASSEMBLY
Qt y PartNo De s crip t ion
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
HORIZONTAL BEAM
ASSEMBLY FROM
STEP 78
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
..
..
••
••
FLUSH TOP SURFACE
1202 (x4)
TORX PAN HEAD 1/4-20x3/4 ASSY
..
•
..
HORIZONTAL BEAM
ASSEMBLY FROM STEP 78
