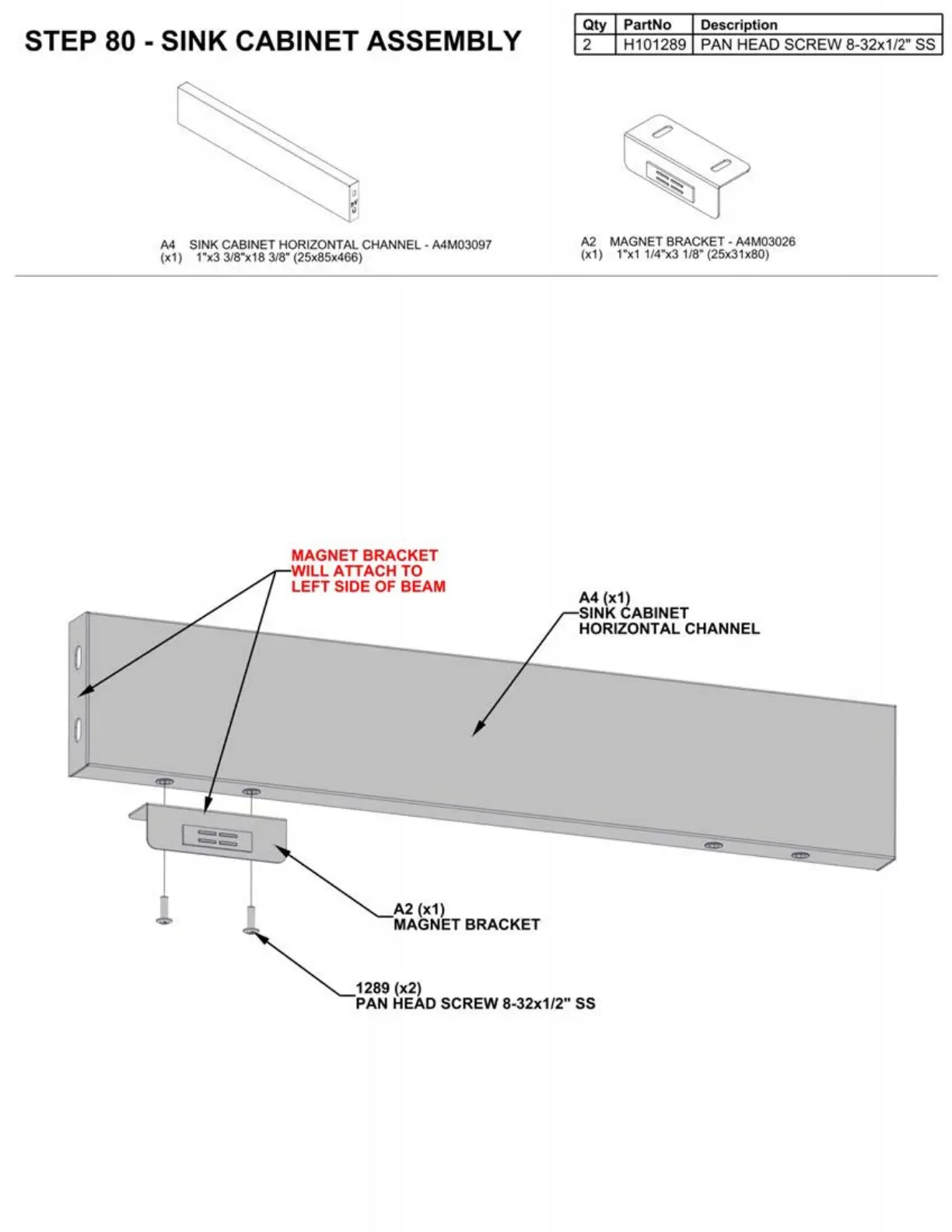

STEP 80 - SINK CABINET ASSEMBLY
A4 S IN K CABINET HORIZONTAL CHANNEL - A4M03097
(x1) 1 "x3 3/8"x18 3/8" (25x85x466)
MAGNET BRACKET
WILL ATTACH
TO
LEFT SIDE OF BEAM
A2 (x1)
MAGNET BRACKET
~1289(x2)
Qty PartNo Description
2 H 10 1289 PAN HEAD SCREW 8-32x1 /2 " SS
A2 MAGNET BRACKET - A4M03026
(x1) 1"x1 1/4"
x31 /8" (25x31x80)
A4 (x1)
SINK CABINET
HORIZONTAL CHANNEL
PAN HEAD SCREW 8-32x1/2" SS
