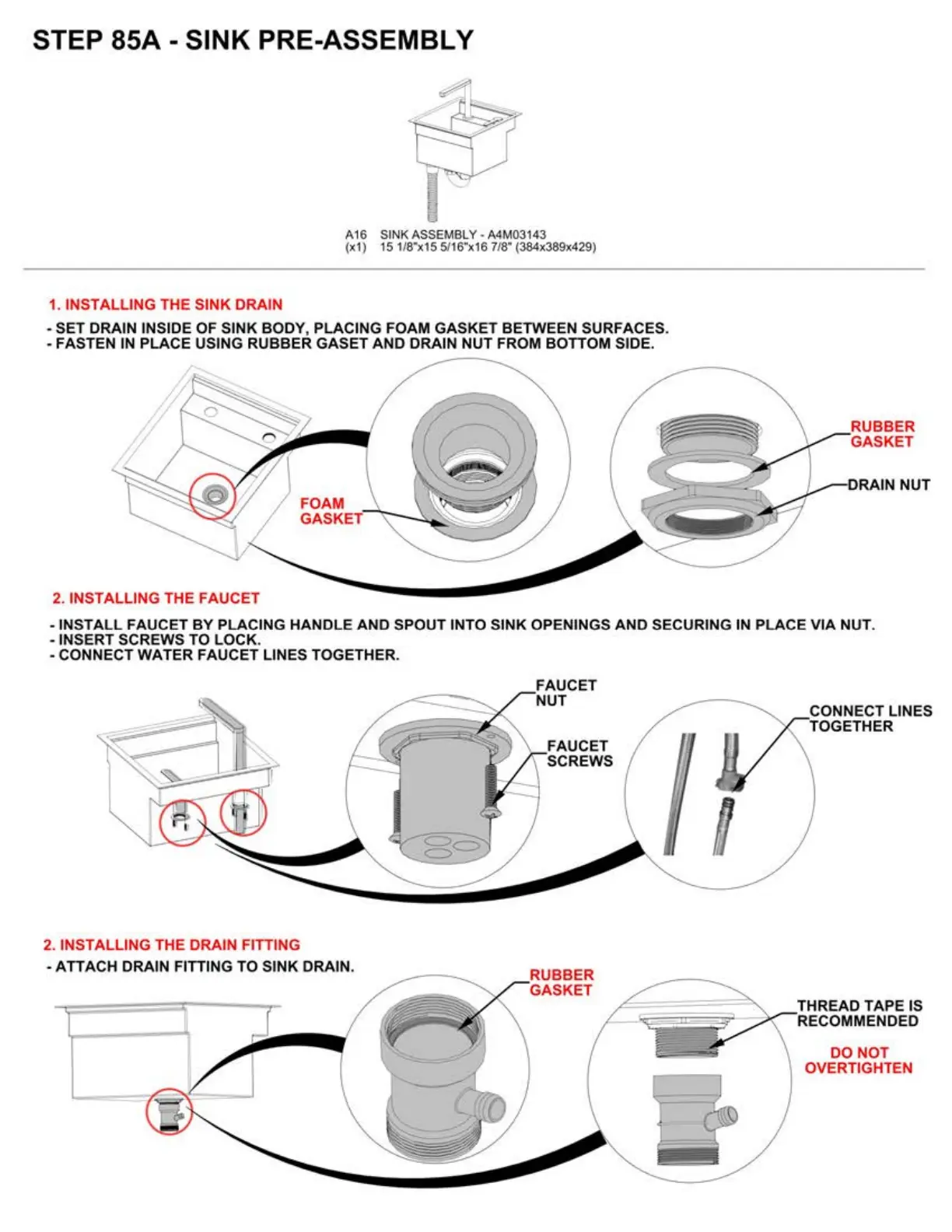

STEP SSA - SINK PRE-ASSEMBLY
A16 SI NK ASSEMBLY -A4 M03143
(x1)
151 /8"x15 5/16"x16 7/8" (384x389x429)
1. INSTALLING THE SINK DRAIN
- SET DRAIN INSIDE OF SINK BODY, PLACING FOAM GASKET BETWEEN SURFACES.
- FASTEN
IN PLACE USING RUBBER GASET AND DRAIN NUT FROM BOTTOM SIDE.
2. INSTALLING THE FAUCET
RUBBER
GASKET
- INSTALL FAUCET
BY PLACING HANDLE AND SPOUT INTO SINK OPENINGS AND SECURING IN PLACE VIA NUT.
- INSERT SCREWS TO LOCK.
- CONNECT WATER FAUCET LINES TOGETHER.
2. INSTALLING THE DRAIN FITTING
- ATTACH DRAIN FITTING TO SINK DRAIN.
FAUCET
SCREWS
RUBBER
GASKET
CONNECT LINES
TOGETHER
/-
'.__~~ i§§Jir- ? rTHREAD TAPE IS
RECOMMENDED
DO NOT
OVERTIGHTEN
