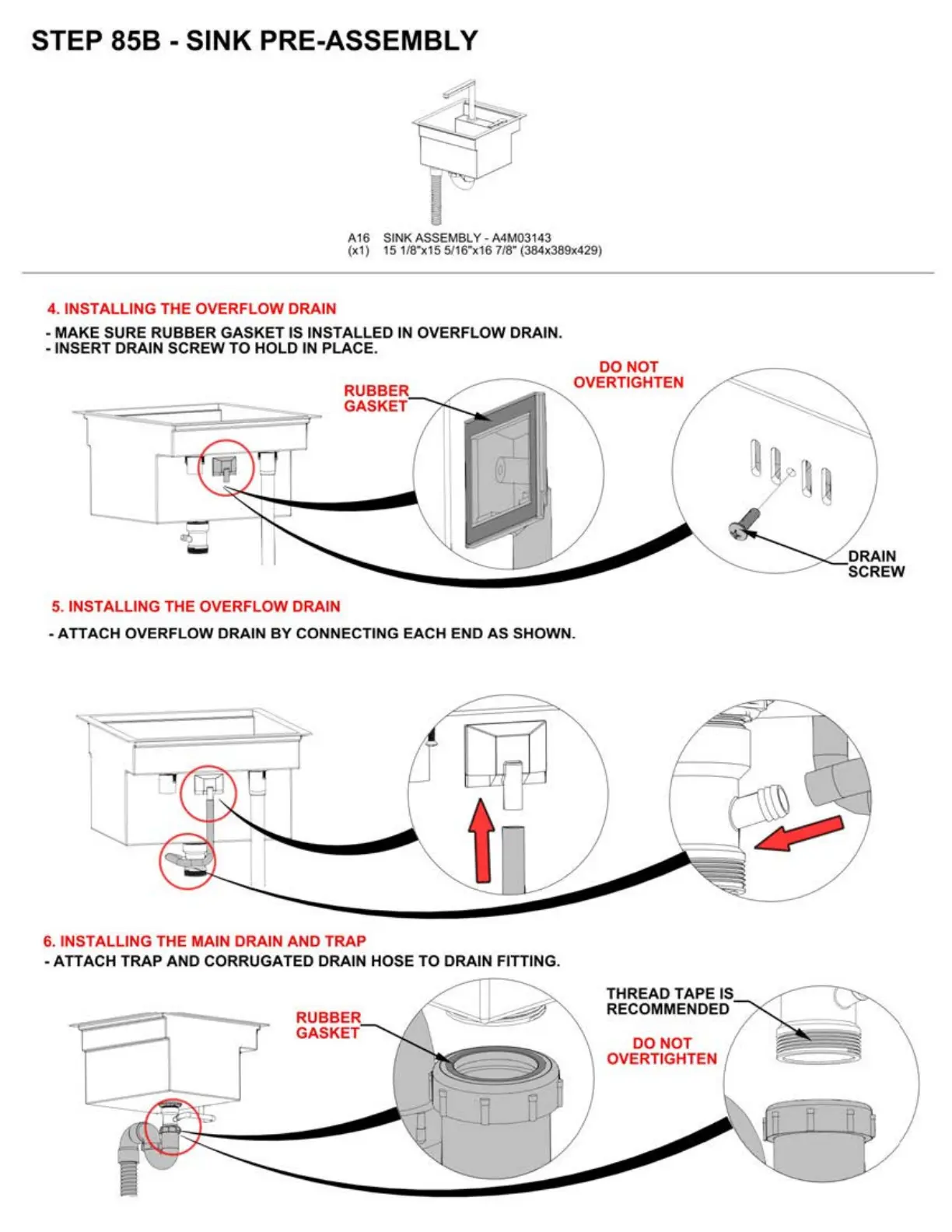

STEP 858 - SINK PRE-ASSEMBLY
A16 S IN K ASSEMBLY -A4M03143
(x1) 15 1/8"x15 5/16"x16 7/8" (384x389x429)
4. INSTALLING THE OVERFLOW DRAIN
-
MAKE SURE RUBBER GASKET IS INSTALLED IN OVERFLOW DRAIN.
- INSERT DRAIN SCREW
TO HOLD IN PLACE.
5. INSTALLING THE OVERFLOW DRAIN
RUBBER
GASKET
DO NOT
OVERTIGHTEN
-ATTACH OVERFLOW DRAIN BY CONNECTING EACH END AS SHOWN.
6. INSTALLING THE MAIN DRAIN
AND TRAP
- ATTACH
TRAP AND CORRUGATED DRAIN HOSE TO DRAIN FITTING.
RUBBER
GASKET
THREAD TAPE IS
RECOMMENDED
DO NOT
OVERTIGHTEN
DRAIN
SCREW
