Backyard Discovery FUSION FIRE - Page 123

123

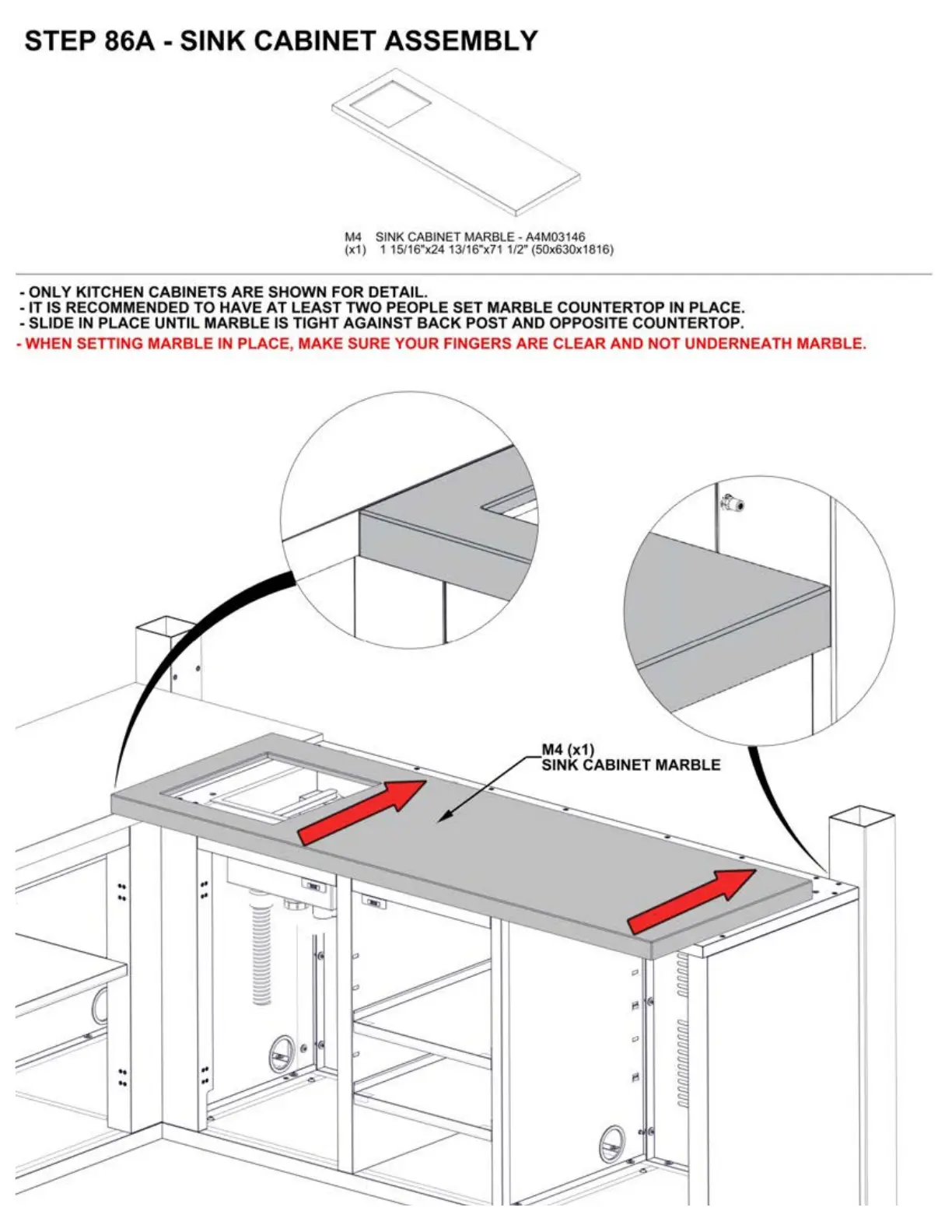

STEP 86A - SINK CABINET ASSEMBLY
M4 SINK CA BI NET MARB LE - A4M03146
(x1)
11 5/16" x2413 /16"x711/2" (50x630x1816)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- IT
IS RECOMMENDED TO HAVE AT LEAST TWO PEOPLE SET MARBLE COUNTERTOP IN PLACE.
- SLIDE IN PLACE UNTIL MARBLE
IS TIGHT AGAINST BACK POST AND OPPOSITE COUNTERTOP.
-WHEN SETTING MARBLE
IN PLACE, MAKE SURE YOUR FINGERS ARE CLEAR AND NOT UNDERNEATH MARBLE.
M4 (x1)
SINK CABINET MARBLE
