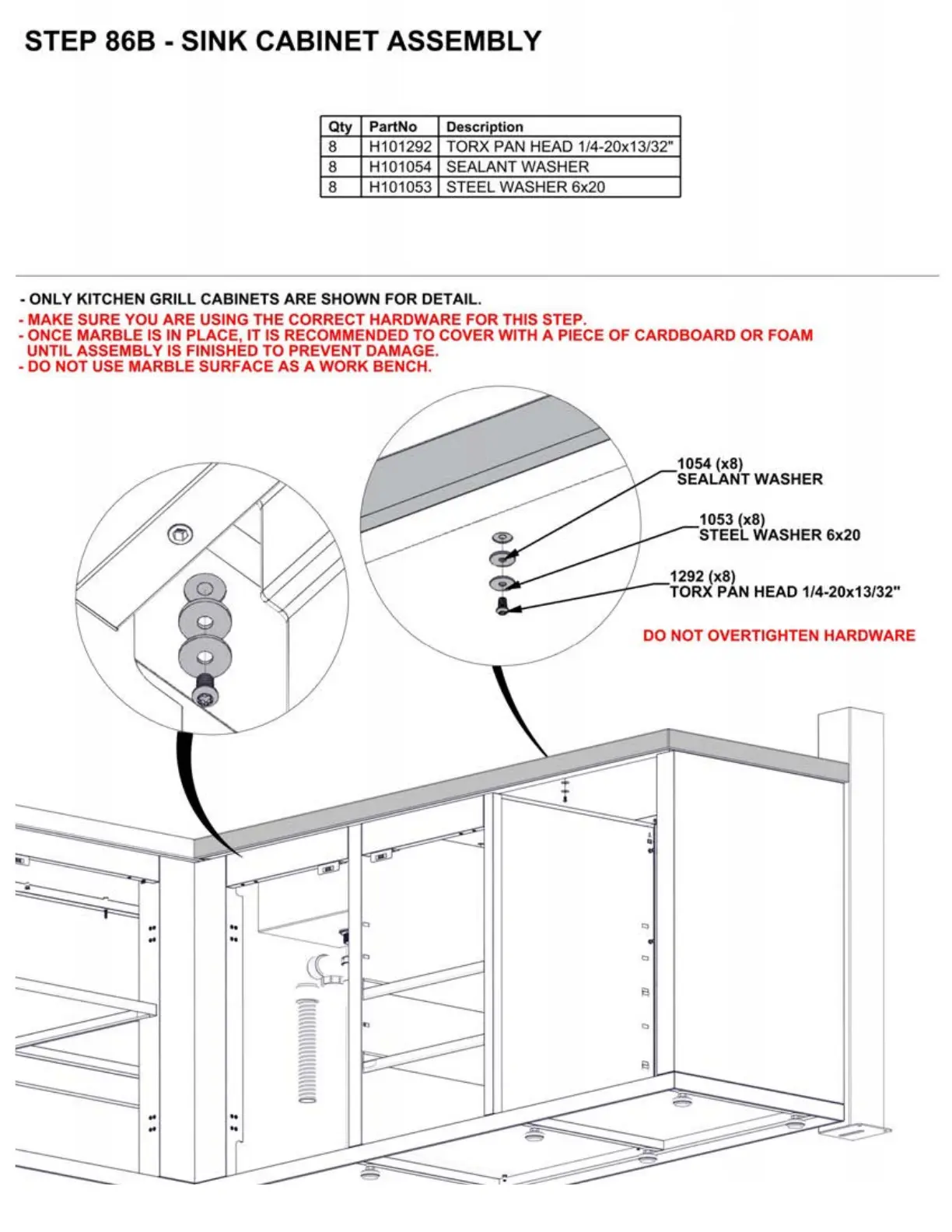

STEP
868
- SINK CABINET ASSEMBLY
Qty
PartNo
Description
8
H101292 TORX PAN HEAD 1/4-20x13/32"
8
H101054 SEALANT WASHER
8
H101053 STEEL WASHER 6x20
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
- MAKE SURE YOU
ARE
USING THE CORRECT HARDWARE FOR THIS STEP.
- ONCE MARBLE IS
IN
PLACE, IT
IS
RECOMMENDED TO COVER WITH A PIECE OF CARDBOARD OR FOAM
UNTIL ASSEMBLY IS FINISHED TO PREVENT DAMAGE.
- DO NOT USE MARBLE SURFACE AS A WORK BENCH.
..
..
c:,
..
. .
~
:=
===
::=
::=:
::=
::=
==
::=:
§
..
..
..
1054 (x8)
SEALANT WASHER
1053 (x8)
STEEL WASHER 6x20
1292 (x8)
TORX PAN HEAD 1/4-20x13/32"
DO NOT OVERTIGHTEN HARDWARE
•
..
c:,
c:,
~
c:,
To Next Page
