Backyard Discovery FUSION FIRE - Page 126

126

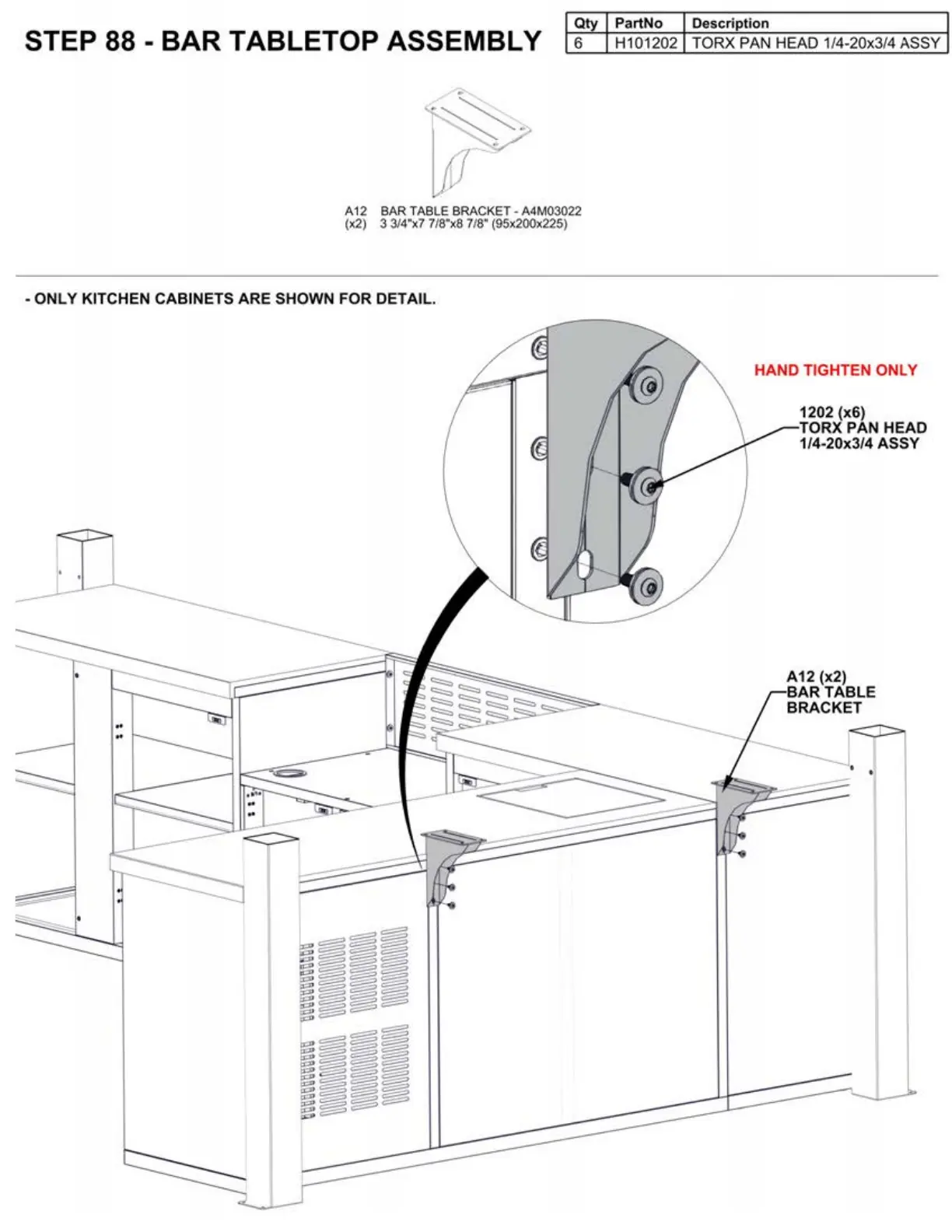

STEP 88 - BAR TABLETOP ASSEMBLY
Qty PartNo Description
6 H101 202 TORX PAN HEAD 1/4- 20 x3/4 ASSY
A12 B AR TABLE BRACKET - A4M03022
(x2) 3 3/4"x7 7/8"x8 7/8" (95x200x225)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
HAND TIGHTEN ONLY
1202 (x6)
TORX PAN HEAD
1/4-20x3/4 ASSY
A12 (x2)
BAR TABLE
BRACKET
