Backyard Discovery FUSION FIRE - Page 127

127

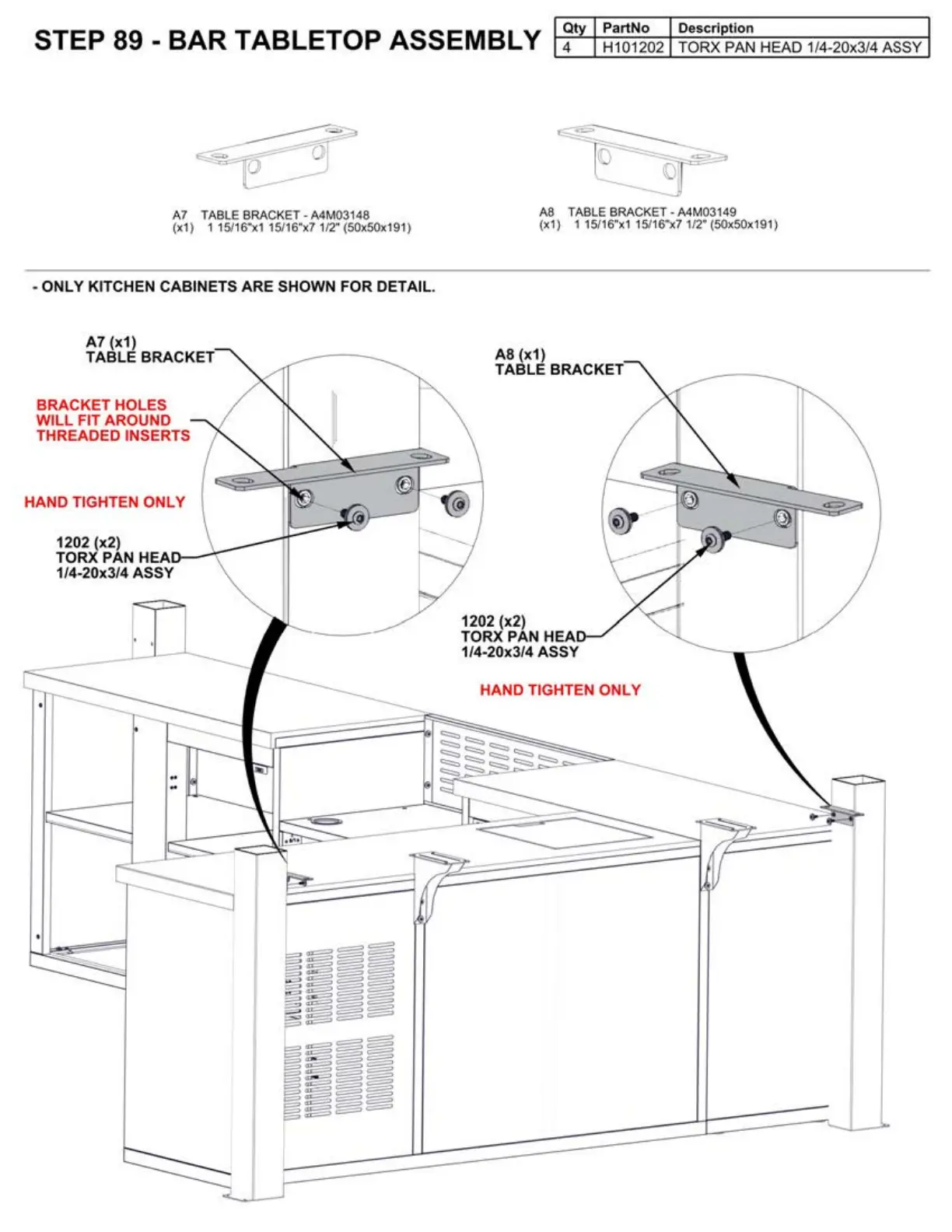

STEP 89 - BAR TABLETOP ASSEMBLY
Qty PartNo Description
4 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
A7 TABLE BRACKET -A4M03148
(x1) 1 15/1
6"x1 15/16" x71 /2" (50x50x191)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
A7 (x1)
TABLE BRACKET
BRACKET HOLES
WILL FIT AROUND
THREADED INSERTS
HAND TIGHTEN ONLY
1202 (x2)
TORX PAN HEA.,___,
1 /4-20x3/4 ASSY
A8 TA BLE BR ACKET -A4 M03149
(x1)
115 /16" x1 15/16"x71/2" (50x50x191)
AB (x1)
TABLE BRACKET
1202 (x2)
TORX PAN HEA
1 /4-20x3/4 ASSY
HAND TIGHTEN ONLY
