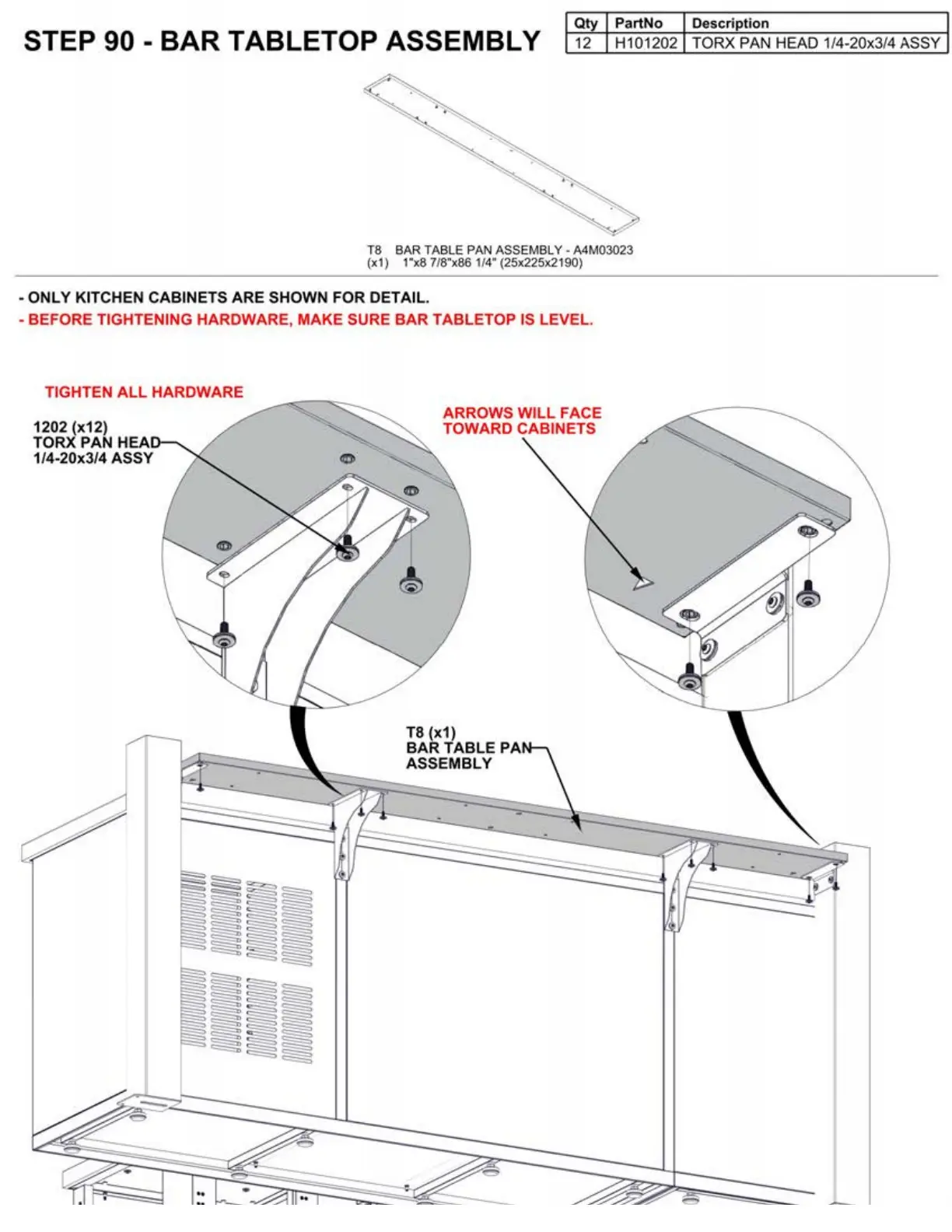

STEP 90 - BAR TABLETOP ASSEMBLY
Qty PartNo Description
12 H101 202 TORX PAN HEAD 1/4- 20 x3/4 ASSY
T8 BAR TABLE PAN ASSEM BL Y - A4M03023
(x 1) 1" x8 7/8"x86 1/4" (25x225x2190)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- BEFORE TIGHTENING HARDWARE, MAKE SURE BAR TABLETOP IS LEVEL.
TIGHTEN
ALL HARDWARE
1202 (x12)
TORX PAN HEA
1 /4-20x3/4 ASSY
ARROWS WILL FACE
TOWARD CABINETS
TS (x1)
BAR TABLE PA
ASSEMBLY
