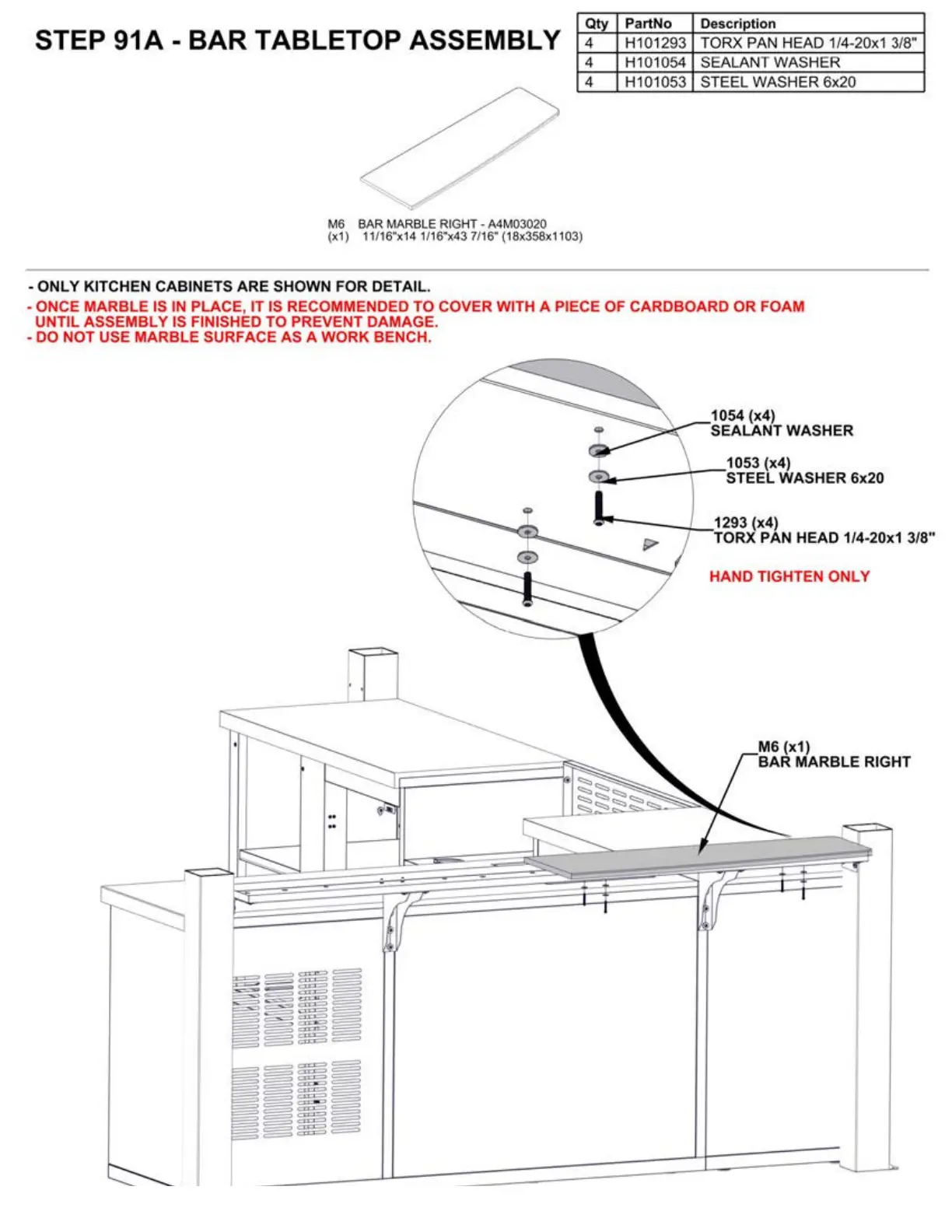

STEP 91A - BAR TABLETOP ASSEMBLY
Qty PartNo Description
4
H1
01293 TORX PAN HEAD 1/4-20x1 3/8"
4
H1
01054 SEALANT WASHER
4
H1
01053 STEEL WASHER 6x20
M6 BAR
MA
RBLE RIGHT - A4M03020
(x1) 11/16"x
14
1/16"x43 7/16" (18x358x1103)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- ONCE MARBLE IS IN PLACE,
IT IS RECOMMENDED TO COVER WITH A PIECE OF CARDBOARD OR FOAM
UNTIL ASSEMBLY IS FINISHED TO PREVENT DAMAGE.
- DO NOT USE
MARBLE
SURFACE AS A
WORK
BENCH.
1054 (x4)
SEALANT WASHER
1053(x4)
G::l.
---
-r-
-sTEEL
WASHER 6x20
HAND TIGHTEN ONLY
_
_JJ_
--==============-==_:t=-==-==~
~
