Qty
PartNo Description

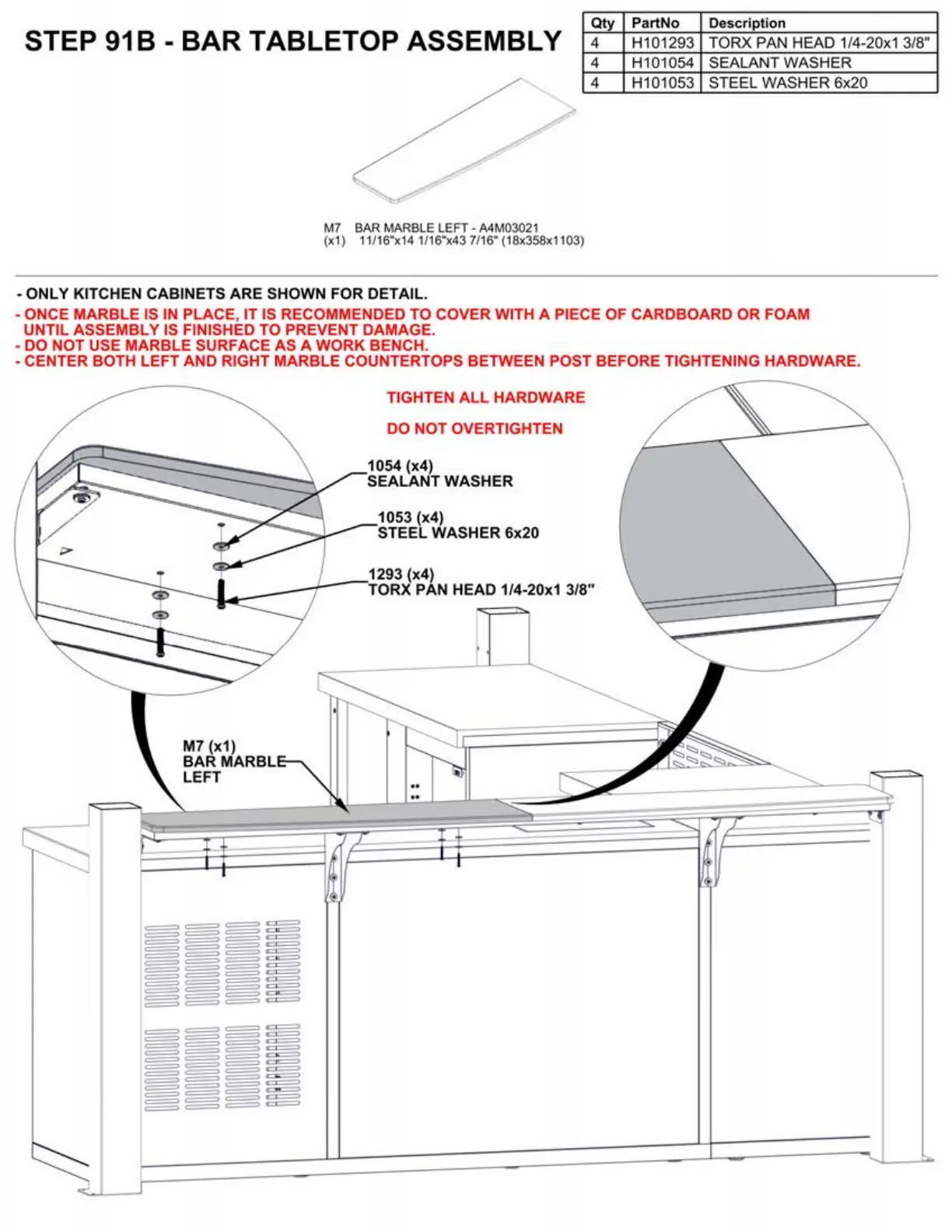

STEP
918
- BAR TABLETOP ASSEMBLY
4 H101293 TORX PAN HEAD 1/4-20x1 3/
8"
4 H101054 SEALANT WASHER
4 H101053 STEEL WASHER 6x20
M7 BAR MARBLE LEFT - A4M03021
(x1) 11/16"x14 1/16"x43 7/16" (18x358x
11
03)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- ONCE MARBLE
IS
IN
PLACE, IT
IS
RECOMMENDED TO COVER WITH A PIECE OF CARDBOARD
OR
FOAM
UNTIL ASSEMBLY IS FINISHED TO PREVENT DAMAGE.
- DO NOT USE MARBLE SURFACE AS A WORK BENCH.
- CENTER BOTH LEFT AND RIGHT MARBLE COUNTERTOPS BETWEEN POST BEFORE TIGHTENING HARDWARE.
M7 (x1)
BARMARBL
LEFT
TIGHTEN ALL HARDWARE
DO NOT OVERTIGHTEN
1054 (x4)
SEALANT WASHER
1053 (x4)
STEEL WASHER 6x20
1293 (x4)
,-~-.TORX
PAN HEAD 1/4-20x1 3/8"
..
..
)
b=-=-~~~==-=-===========-=-=---=~---==-==-=:
~
