STEP 92 - PIZZA OVEN CABINET ASSEMBLY
F4
PI
ZZA OVEN CABINET FLOOR PA
NE
L ASSEM
BL
Y - A4M03062
(x1) 2 5/8"x23 3/8"x72 3/16" (66x594x1834)

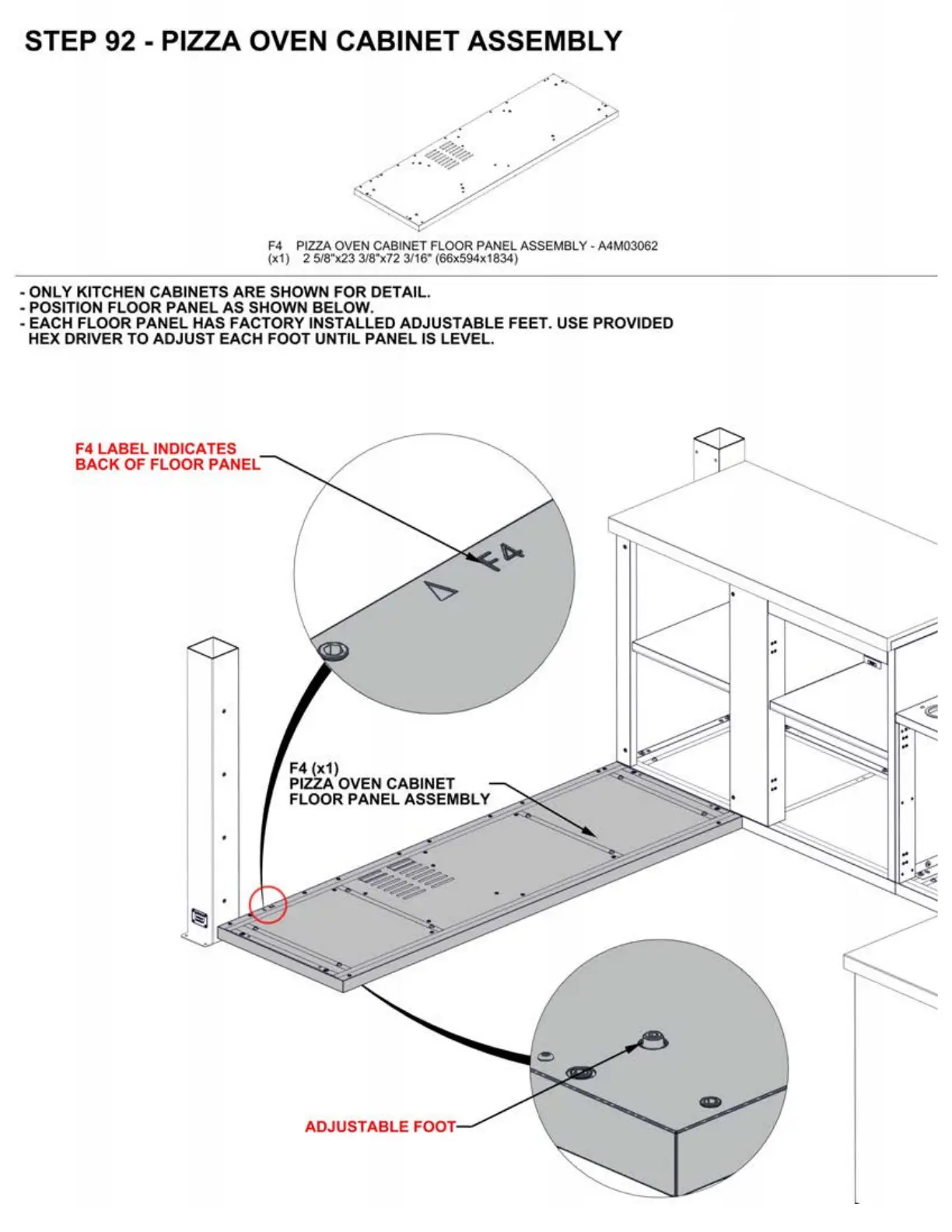

- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- POSITION FLOOR PANEL AS SHOWN BELOW.
- EACH FLOOR PANEL HAS FACTORY INSTALLED ADJUSTABLE FEET. USE PROVIDED
HEX DRIVER TO ADJUST EACH FOOT UNTIL PANEL
IS
LEVEL.
F4
LABEL
INDICATES
BACK
OF FLOOR PANEL
F4 (x1)
PIZZA OVEN CABINET
FLOOR PANEL ASSEMBLY
ADJUSTABLE FOOT
To Next Page
