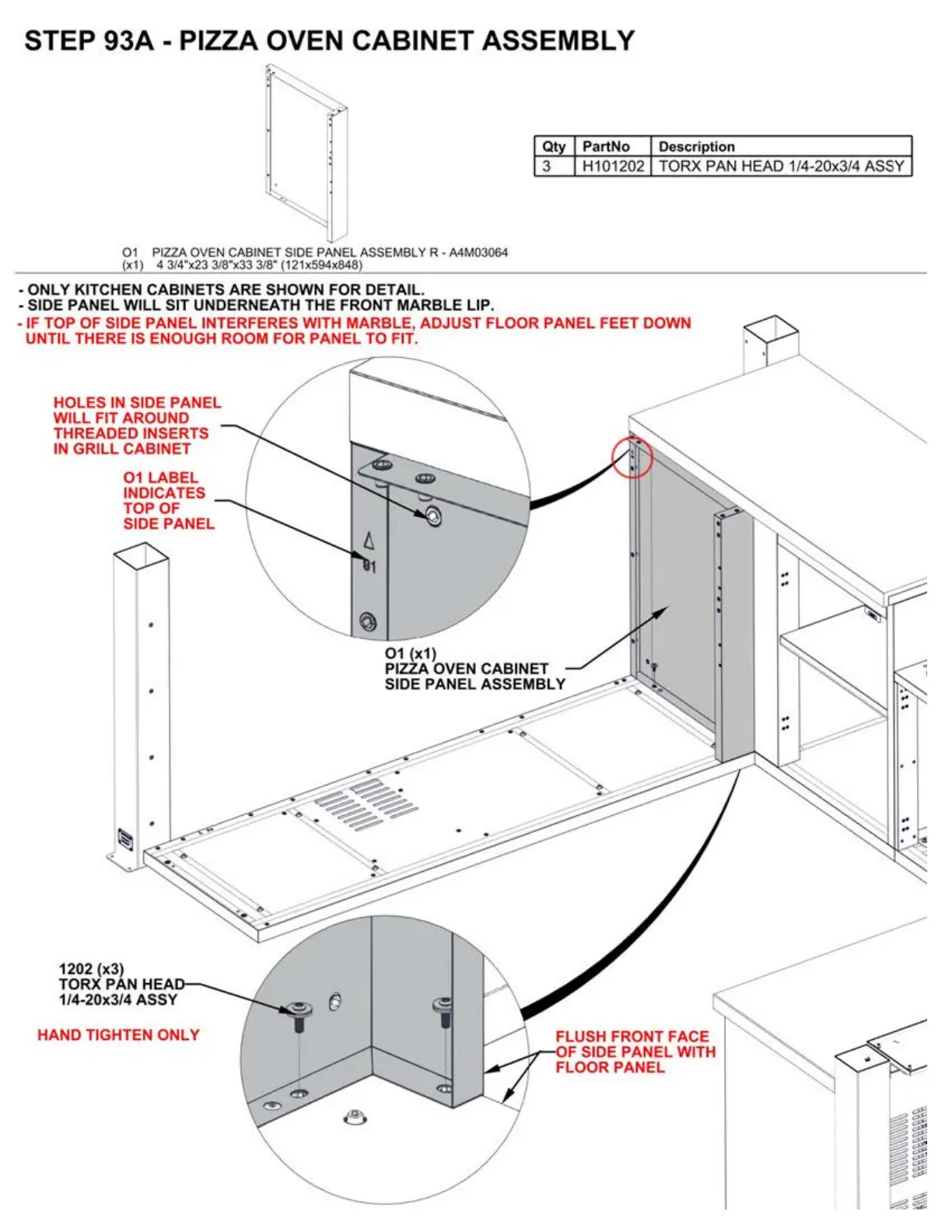

STEP 93A - PIZZA OVEN CABINET ASSEMBLY
01
PIZZA OVEN CABINET SIDE PANEL ASSEMBLY R - A4M03064
(x1) 4 3/4"x23 3/B"x33 3/8" (121x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- SIDE PANEL WILL SIT UNDERNEATH THE FRONT MARBLE LIP.
Qty
PartNo
Description
3 H101202 TORX
PAN
HEAD 1/4-20x3/4 ASSY
- IF TOP OF SIDE PANEL INTERFERES WITH MARBLE, ADJUST FLOOR PANEL FEET DOWN
UNTIL THERE IS ENOUGH ROOM FOR PANEL TO FIT.
HOLES
IN
SIDE PANEL
WILL
FIT AROUND
THREADED INSERTS
IN GRILL CABINET
01
LABEL
INDICATES
TOP OF
SIDE PANEL
1202 (x3)
TORX PAN HEA
1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
01
(x1)
PIZZA OVEN CABINET
SIDE PANEL ASSEMBLY
FLUSH FRONT FACE
OF SIDE PANEL WITH
FLOOR PANEL
To Next Page
