Backyard Discovery FUSION FIRE - Page 133

133

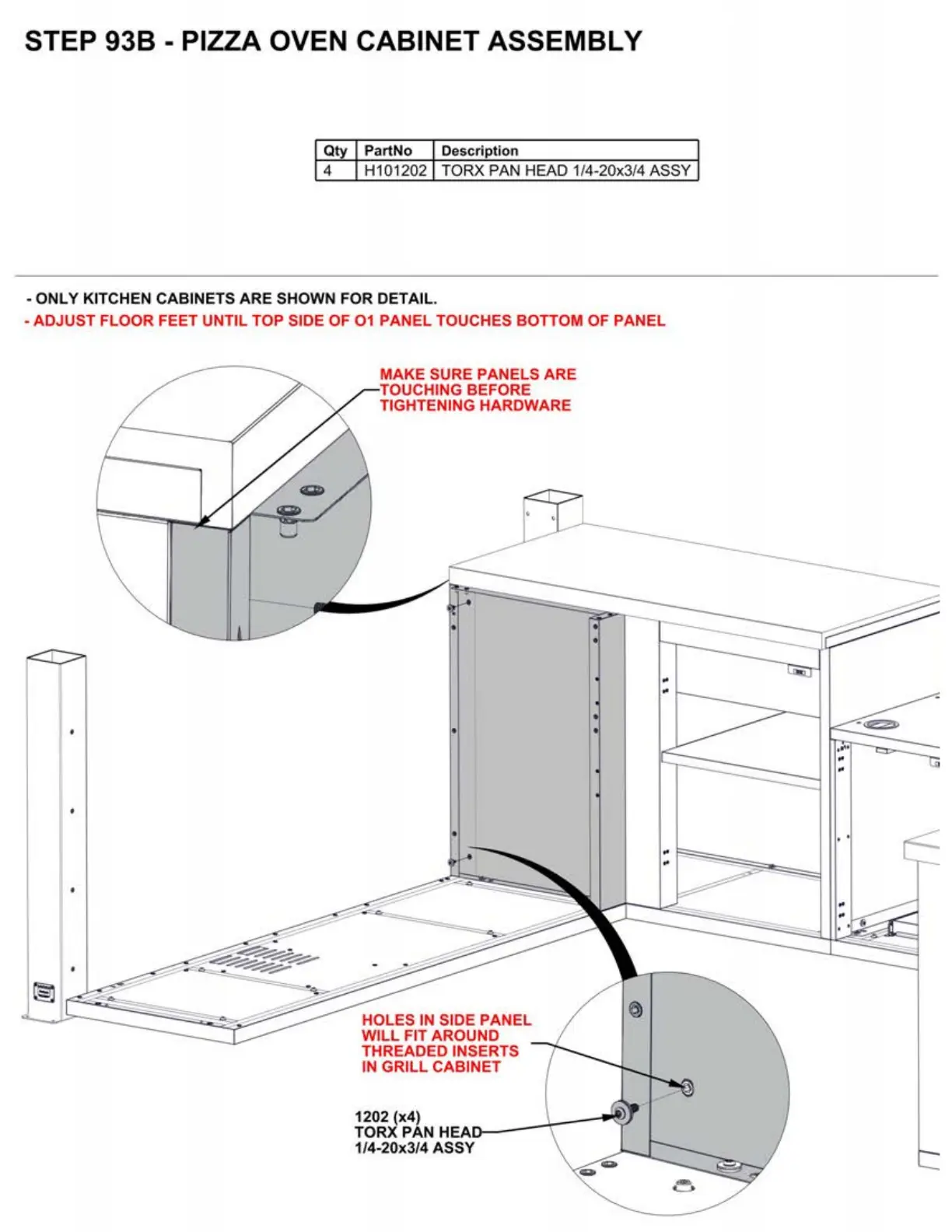

STEP 938 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- ADJUST FLOOR FEET UNTIL TOP SIDE OF
01 PANEL TOUCHES BOTTOM OF PANEL
MAKE SURE PANELS ARE
TOUCHING BEFORE
TIGHTENING HARDWARE
HOLES
IN SIDE PANEL
WILL FIT AROUND
THREADED INSERTS
IN GRILL CABINET
1202 (x4)
TORX PAN
HEAD--
1/4-20x3/4 ASSY
