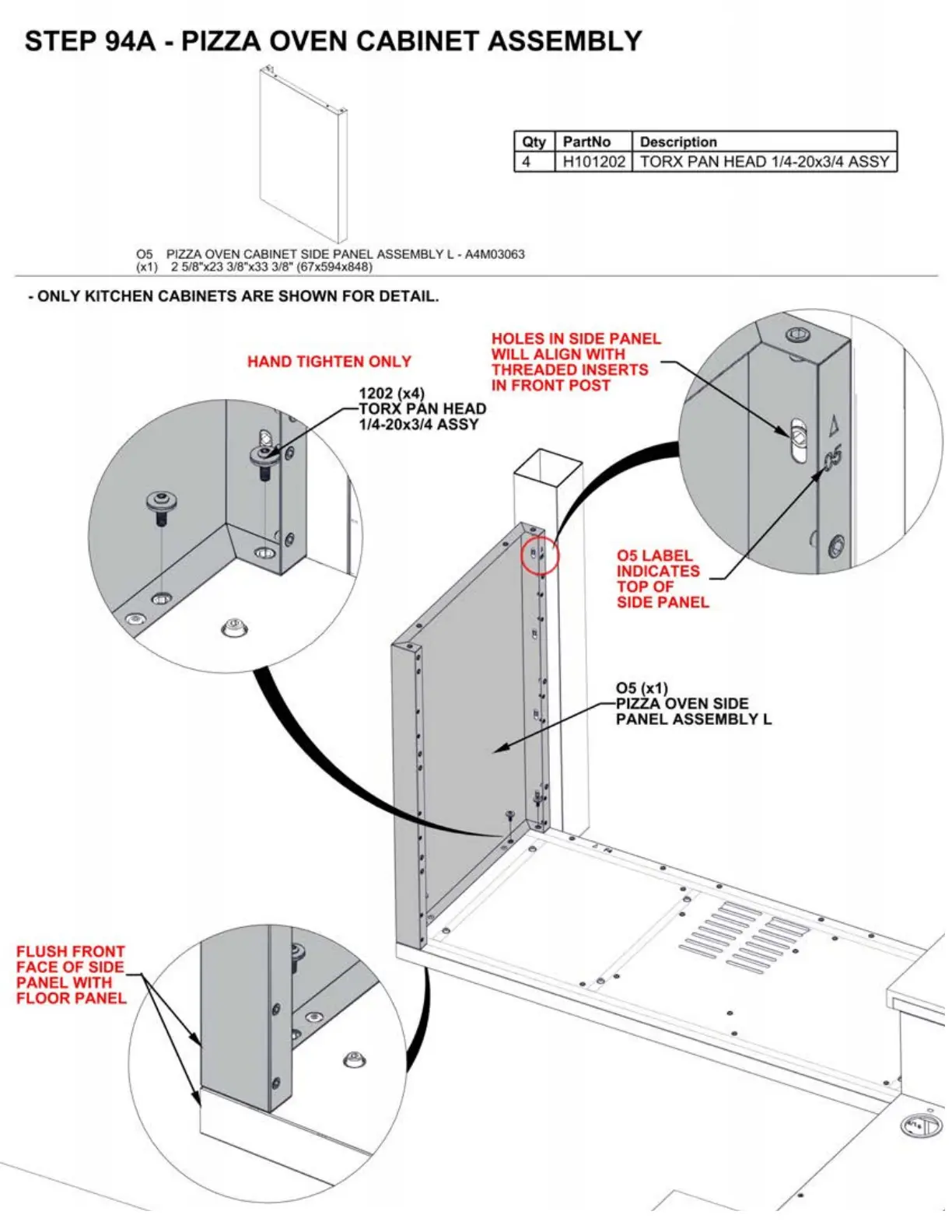

STEP 94A - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
05 PI ZZA OVEN CABINET SIDE PANEL ASSEMBLY L - A4M03063
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
FLUSH FRONT
FACE OF SIDE
PANEL WITH
FLOOR
PANEL
HAND TIGHTEN ONLY
HOLES IN SIDE PANEL
WILL ALIGN WITH
THREADED INSERTS
1202
(x
4
) IN FRONT POST
TORX PAN HEAD
1/4-20x3/4
ASSY
05 LABEL
INDICATES
TOP OF
SIDE PANEL
05 (x1)
PIZZA OVEN SIDE
PANEL ASSEMBLY L
