Backyard Discovery FUSION FIRE - Page 136

136

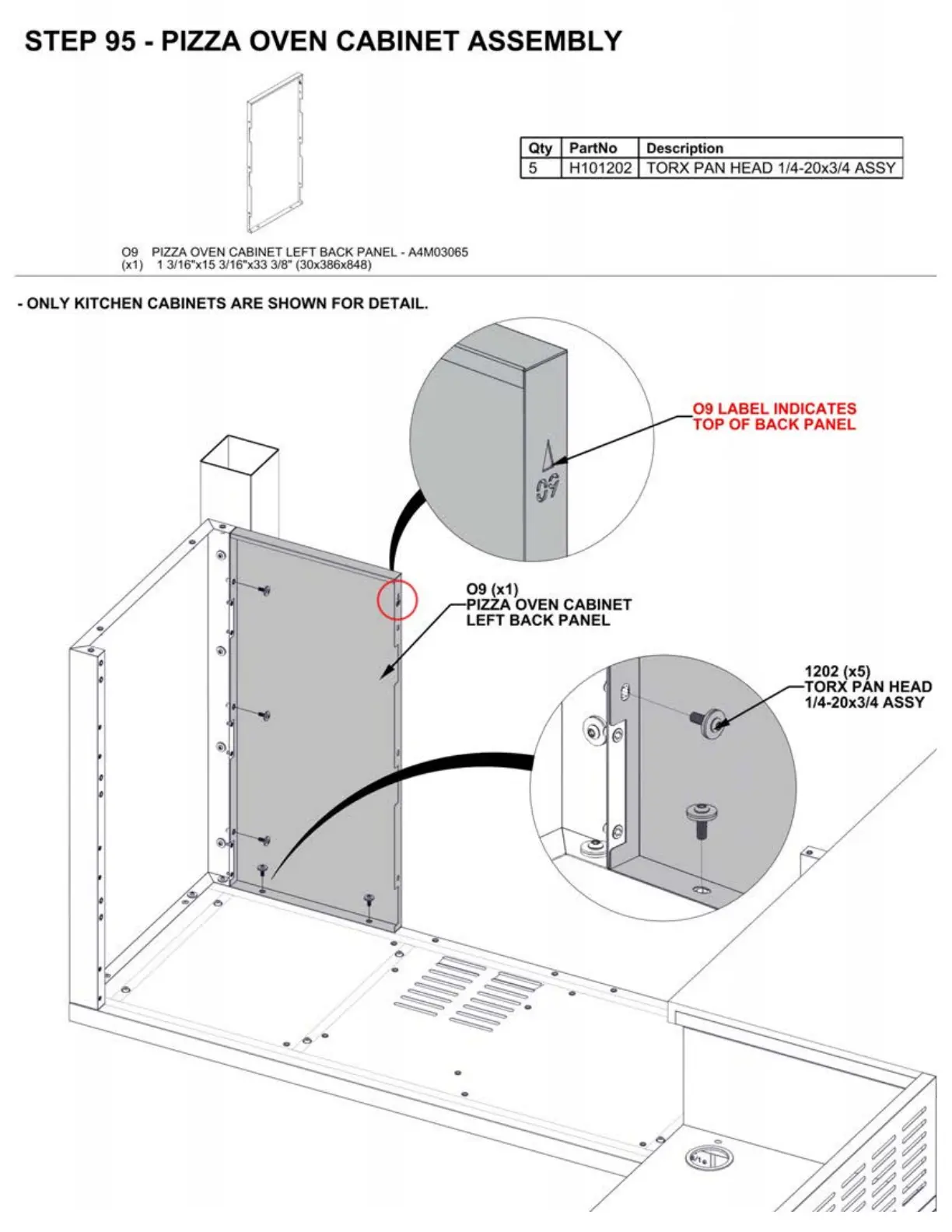

STEP 95 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
5 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
09 PIZZA OV EN CABINET LEFT BACK PANEL - A4M03065
(x1) 1 3/16"x15
3/ 16"x33 3/8" (30x386x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
09 (x1)
PIZZA OVEN CABINET
LEFT BACK PANEL
09 LABEL INDICATES
TOP OF BACK PANEL
1202 (x5)
TORX PAN HEAD
1 /4-20x3/4 ASSY
