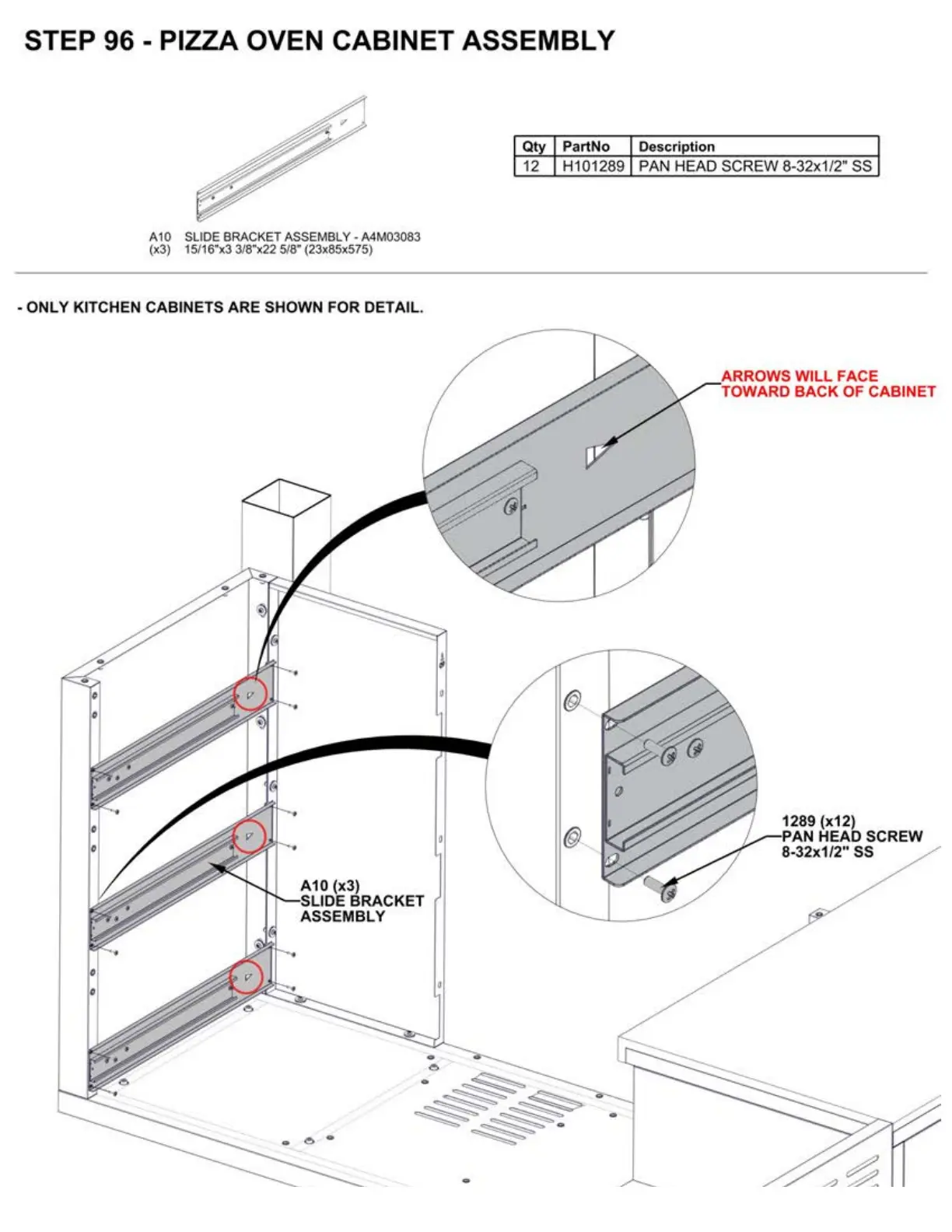

STEP 96 - PIZZA OVEN CABINET ASSEMBLY
A 10 SLIDE BRACKET ASSEMBLY - A4M03083
(x3) 15/16"x3 3/8"x22 5/8" (23x85x575)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
A10 (x3)
SLIDE BRACKET
ASSEMBLY
Qty PartNo Description
12 H101289 PAN HEAD SCREW 8-32x1/2" SS
ARROWS WILL FACE
TOWARD BACK OF CABINET
1289 (x12)
PAN
HEAD SCREW
8-32x1/2" SS
