Backyard Discovery FUSION FIRE - Page 138

138

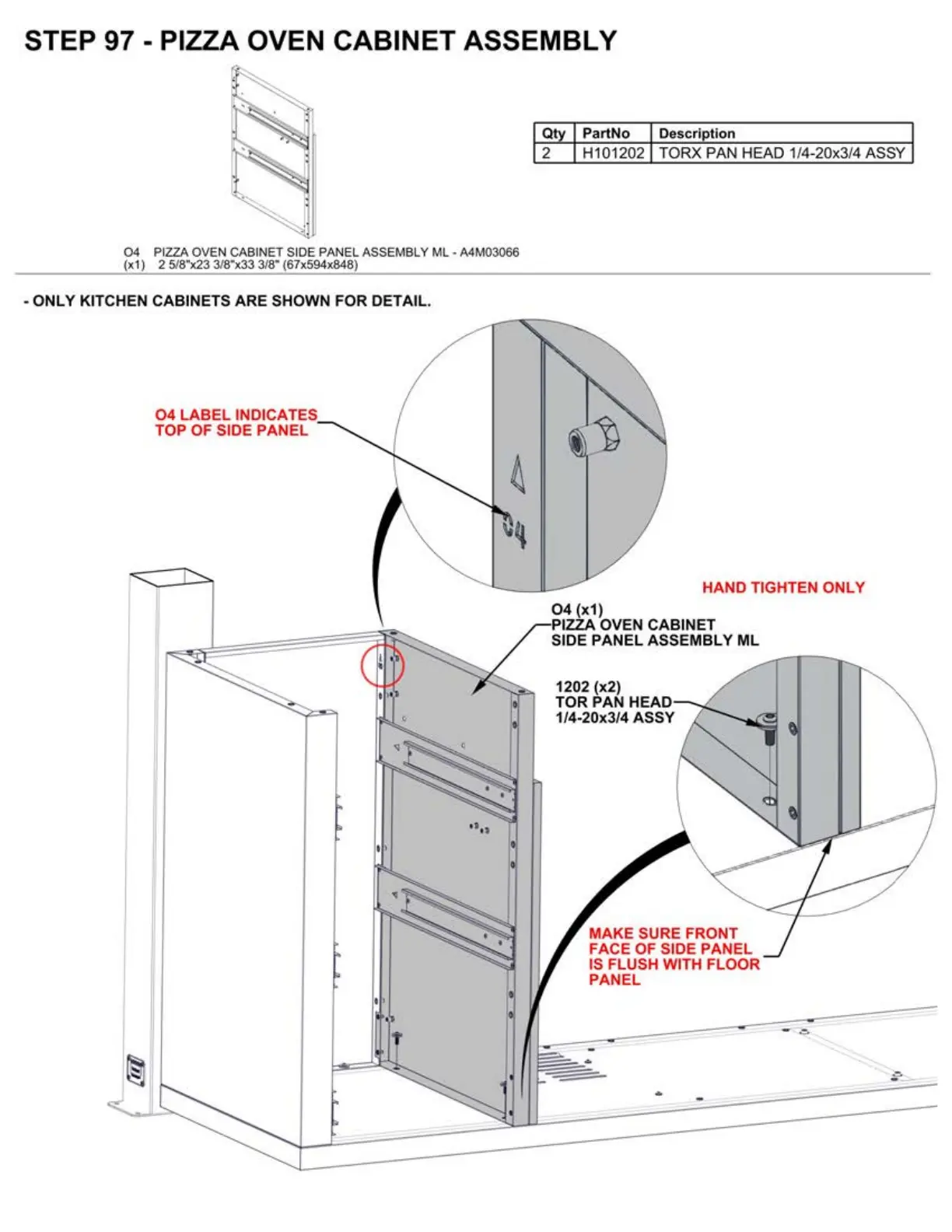

STEP 97 - PIZZA OVEN CABINET ASSEMBLY
04 PIZ ZA OV EN CABIN ET SIDE P AN EL ASSEMBLY ML - A4M03066
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
04 LABEL INDICATES
TOP OF SIDE PANEL
I >
I >
Qty PartNo Description
2
H101 2 02 TORX PA N HEAD 1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
04 (x1)
PIZZA OVEN CABINET
SIDE PANEL ASSEMBLY
ML
1202 (x2)
TOR PAN HEAD
1/4-20x3/4 ASSY
MAKE SURE FRONT
FACE OF SIDE PANEL
IS FLUSH WITH FLOOR
PANEL
_::::: -
