Backyard Discovery FUSION FIRE - Page 140

140

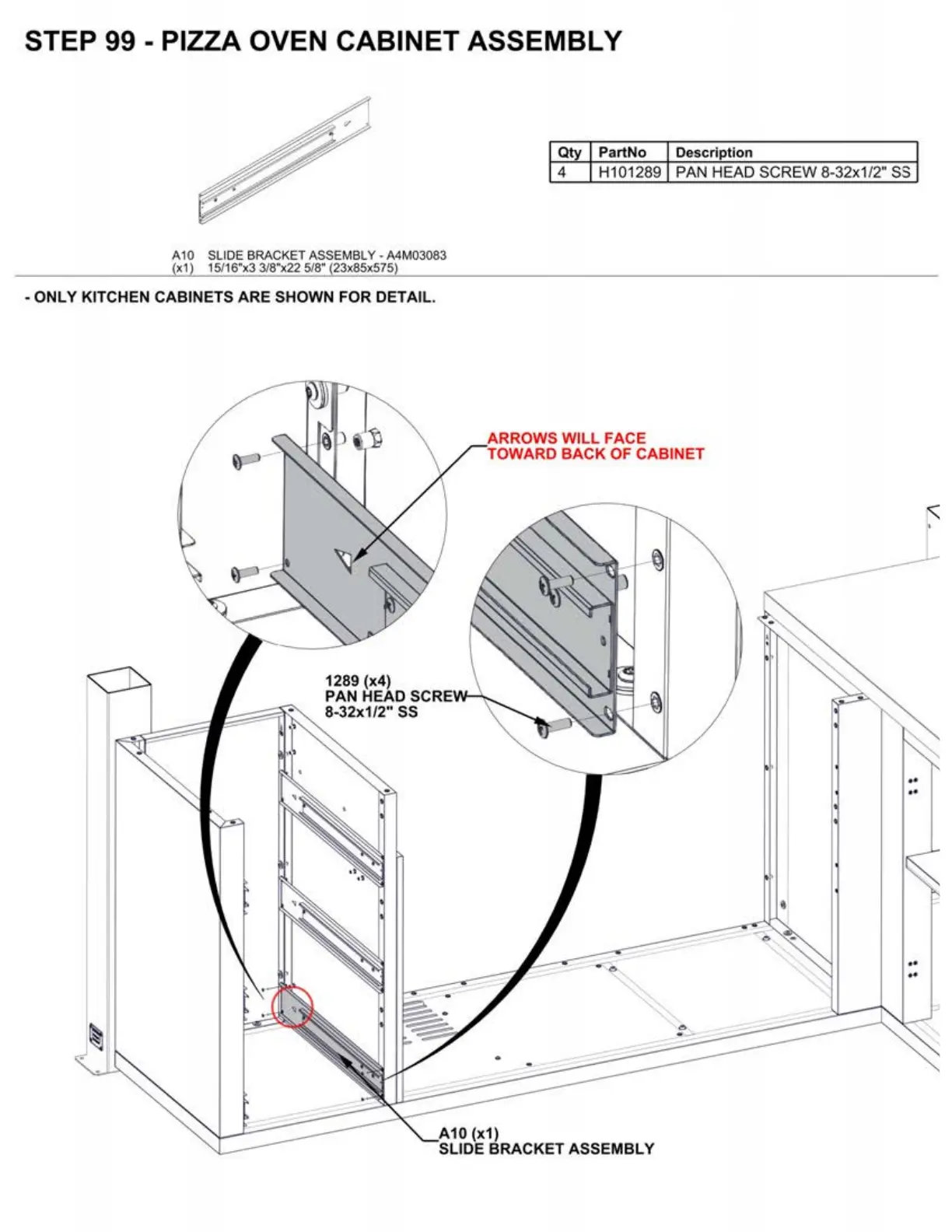

STEP 99 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
4 H101 2 89 PAN HEAD SCREW 8-32x1/2" SS
A 10 SLIDE BRACKET ASSEM BL Y - A4M03083
(x1) 15/16"x3 3/8"x22 5/8" (23x85x575)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
9 (x4)
HEAD SCRE
2x1/2"
55
ARROWS WILL FACE
TOWARD BACK OF CABINET
A10 (x1)
SLIDE BRACKET ASSEMBLY
••
..
..
..
K
'
