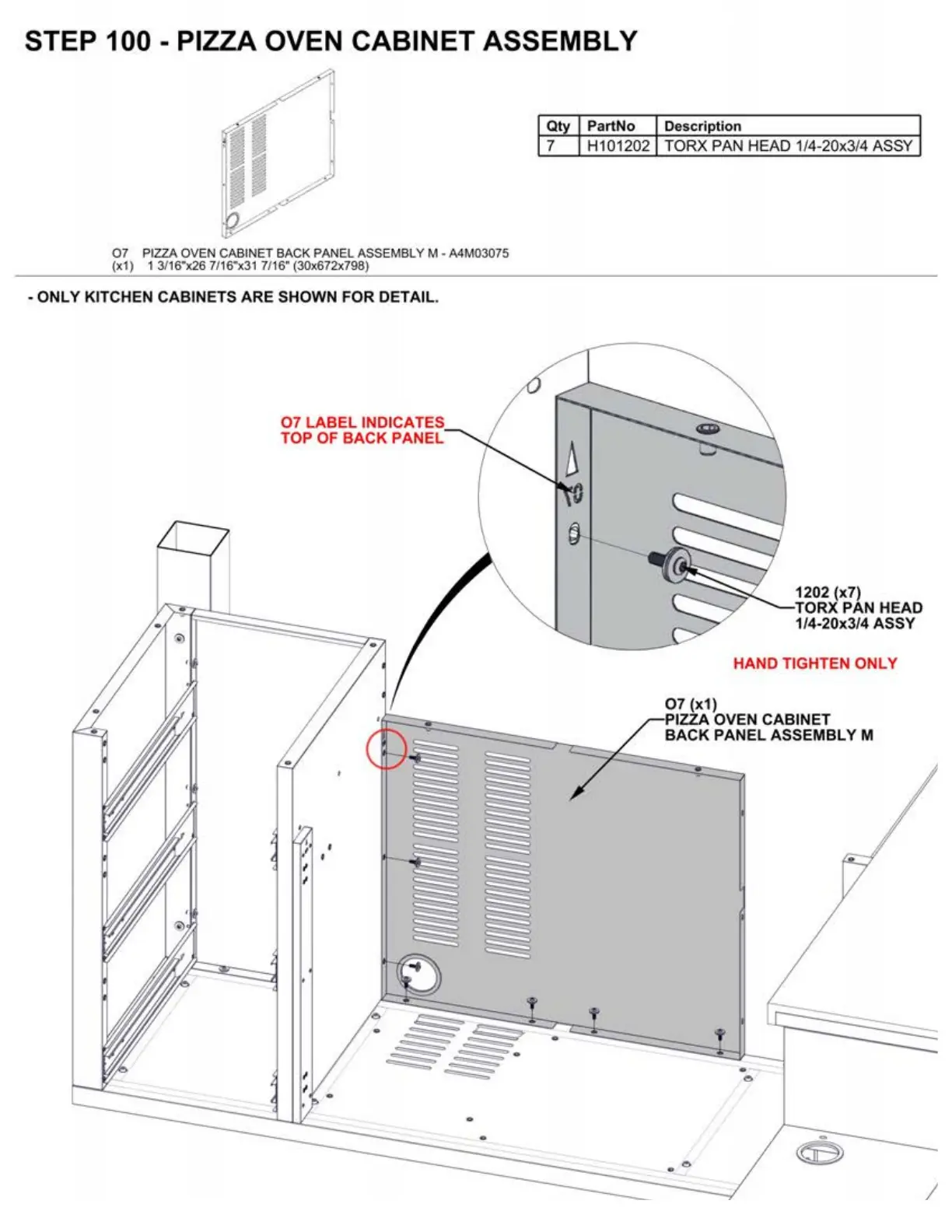

STEP 100 - PIZZA OVEN CABINET ASSEMBLY
07 PI ZZA OVEN CABINET BACK PANEL ASSEMBLY M - A4M03075
(x1) 1 3/16" x267/ 16"x31 7/ 16" (30x672x798)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
07 LABEL INDICATES
TOP OF BACK PANEL
Qty PartNo Description
7 H101 2 02 TORX PAN HEAD 1/4-20x3/4 ASSY
1202 (x7)
TORX PAN HEAD
1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
07 (x1)
PIZZA OVEN CABINET
BACK PANEL ASSEMBLY M
