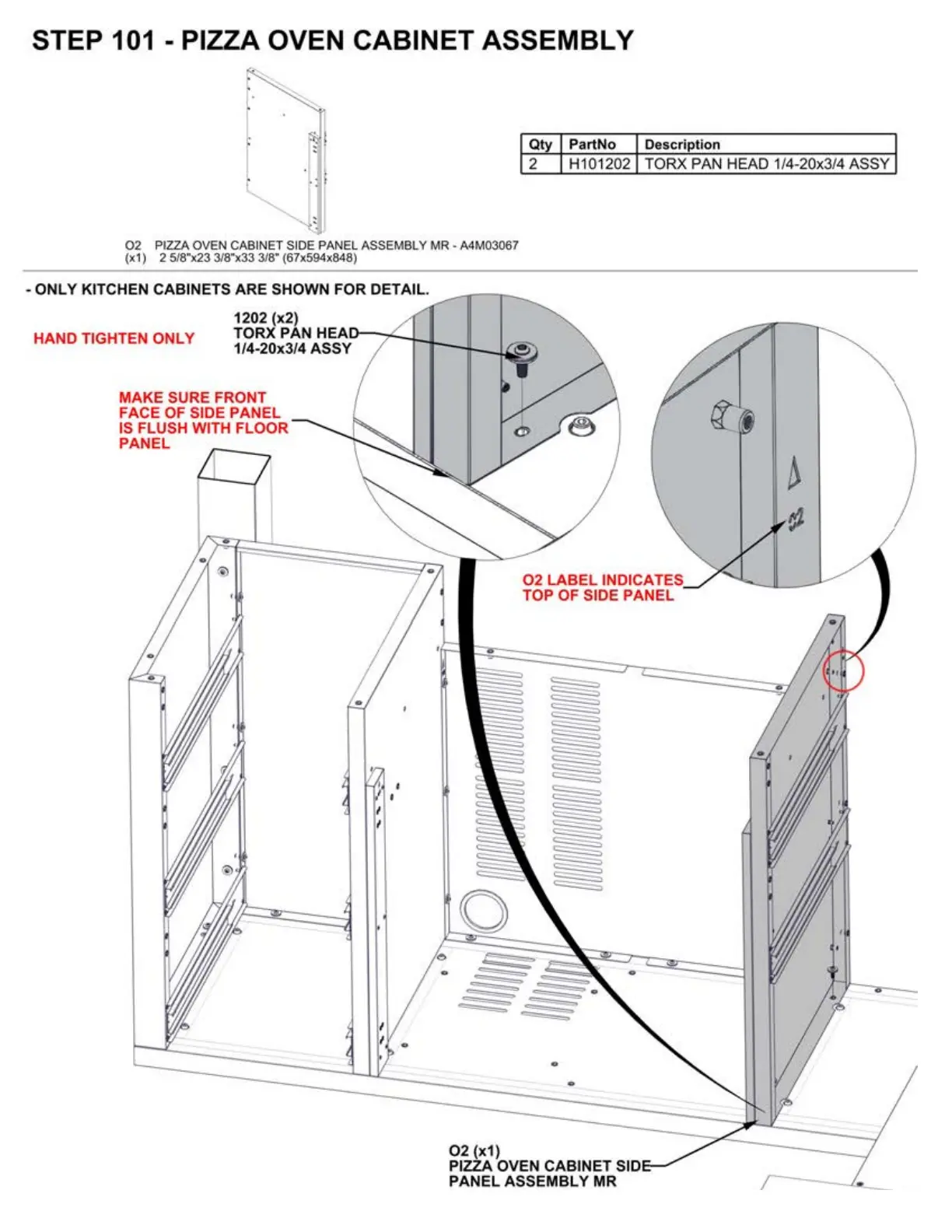

STEP 101 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Descript i on
2 H101202 TORX PAN HEAD 1/4-20 x3 /4 A SS Y
0 2 PI ZZA OVEN CABINET SIDE PANEL ASSEMB LY MR - A4M03067
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
1202 (x2)
TORX PAN
HEAu--.,.:.._
1/4-20x3/4 ASSY
HAND TIGHTEN
ONLY
MAKE SURE FRONT
FACE OF SIDE PANEL
IS FLUSH WITH FLOOR
PANEL
02 (x1)
PIZZA OVEN CABINET SID
PANEL
ASSEMBLY MR
