144

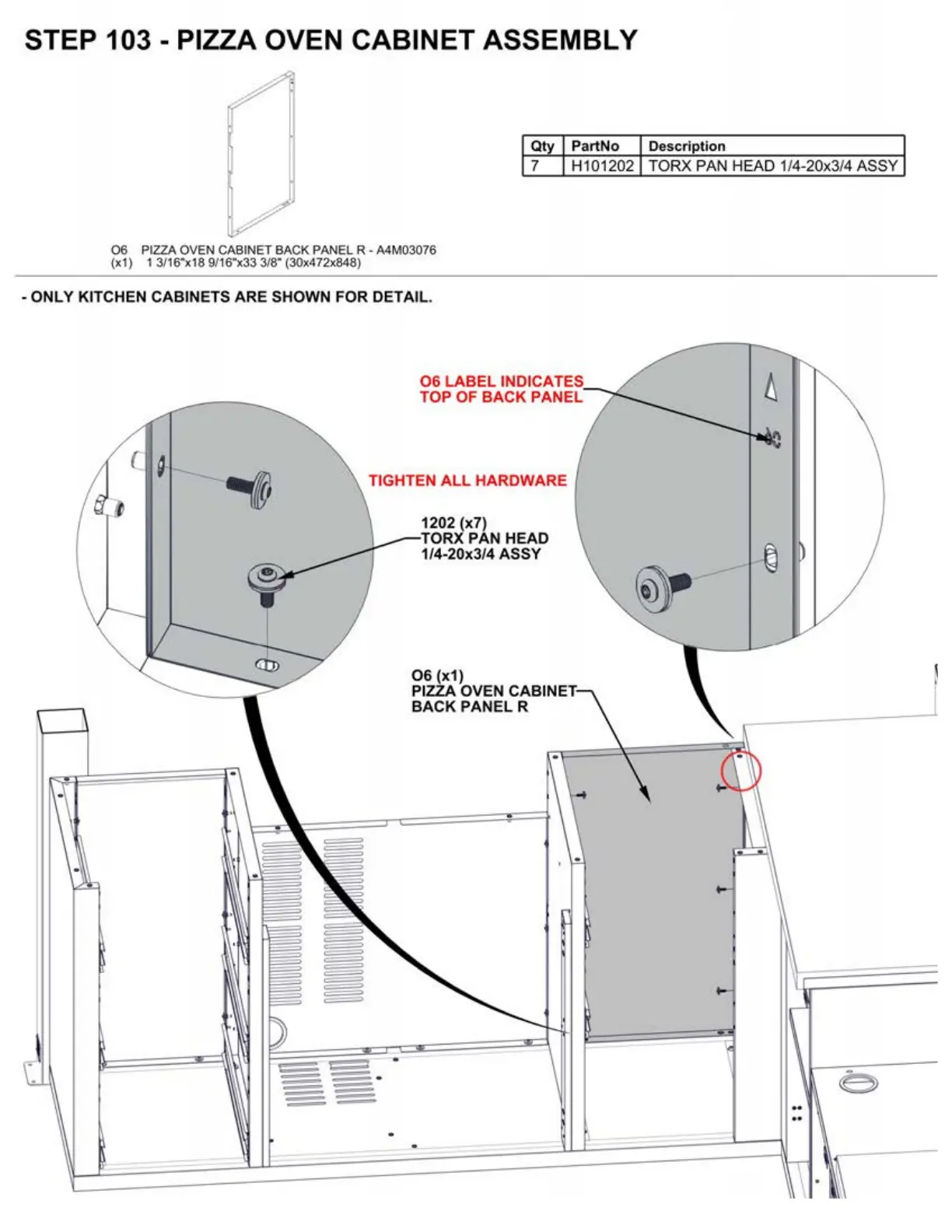

STEP 103 - PIZZA OVEN CABINET ASSEMBLY
06 PIZZA OV EN CABINET BACK PANEL R - A4M03076
(x1) 1 3/16"x1 89 /16"x33 3/8" (30x472x848)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
7 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
06 LABEL INDICATES
TOP OF BACK PANEL
TIGHTEN ALL HARDWARE
1202 (x?)
TORX PAN HEAD
1 /4-20x3/4 ASSY
06 (x1)
PIZZA OVEN CABINET
BACK PANEL R
